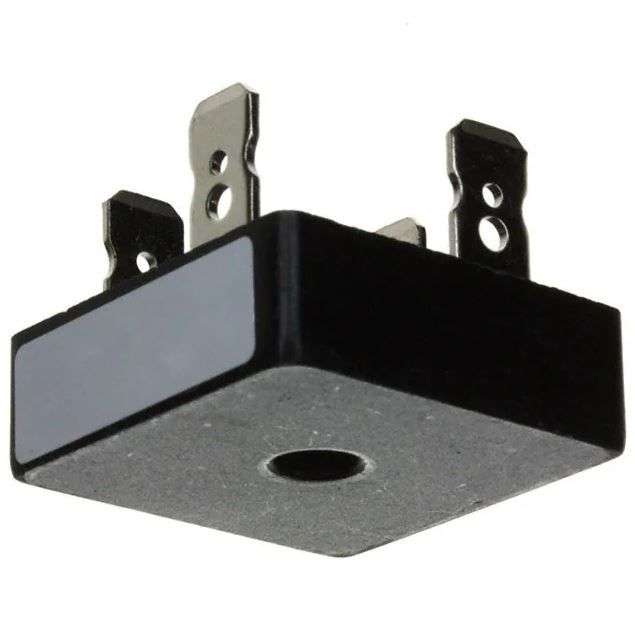

Vishay (VS-36MB60A) Bridge Rectifier, Single Phase, 600 V, 35 A

Bridge Rectifier, Single Phase, 600 V, 35 A, Module, 4 Pins, 1.14 VProduct OverviewThe VS-36MB60A is a 4-pin single-phase Power Bridge Rectifier Diode offersefficient and reliable operation. It is intended for use in general purposeapplications. It has nickel-plated terminals solderable using lead (Pb)-freesolder at temperature 260°C to 275°C with Sn/Ag/Cu (SAC305) alloy solder.High thermal conductivity package, electrically insulated caseCentre hole fixingExcellent power/volume ratio-55 to 150°C Operating junction temperature rangeApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 600VAverage Forward Current: 35ABridge Rectifier Case Style: ModuleForward Voltage Max: 1.14VNo. of Pins: 4PinsBridge Rectifier Mounting: Surface MountForward Surge Current: 400AOperating Temperature Max: 150°CProduct Range: VS-36
