Vito 10.2KVA Hybrid Solar Inverter Off-Grid Backup Kit | 10200W MPPT + 2x 5.12kWh Lithium Battery...

Description:

The Vito 10.2KVA Hybrid Solar Inverter Off-Grid Backup Kit provides a reliable, high-efficiency power solution for homes and businesses. This system integrates a 10200W MPPT inverter, two ECCO 5.12kWh lithium batteries, and six 545W monocrystalline solar panels, ensuring consistent energy generation, storage, and backup power. The inverter's pure sine wave output and advanced safety features make it ideal for residential and commercial applications, offering seamless operation even during power outages.

Key Features:

• Hybrid Inverter with MPPT Technology Efficient solar power conversion with a 90V - 450V DC MPPT range.
• Pure Sine Wave Output Delivers stable power for sensitive electronics and appliances.
• Configurable Charging and Priority Modes Adjustable AC/Solar priority and battery charging current via LCD.
• Smart Battery Management Optimized charging for lithium-ion and lead-acid batteries.
• High-Performance Lithium Battery Long lifespan, high discharge rate, and 40% lighter than lead-acid alternatives.
• Robust Safety Features Includes overload, short circuit, and over-temperature protection.
• Auto Restart and Cold Start Function Ensures uninterrupted power supply.
• Supports Parallel Connection Scalable energy storage with up to 16 parallel battery connections.
• Wi-Fi/GPRS Monitoring (Optional) Remote system monitoring and management.

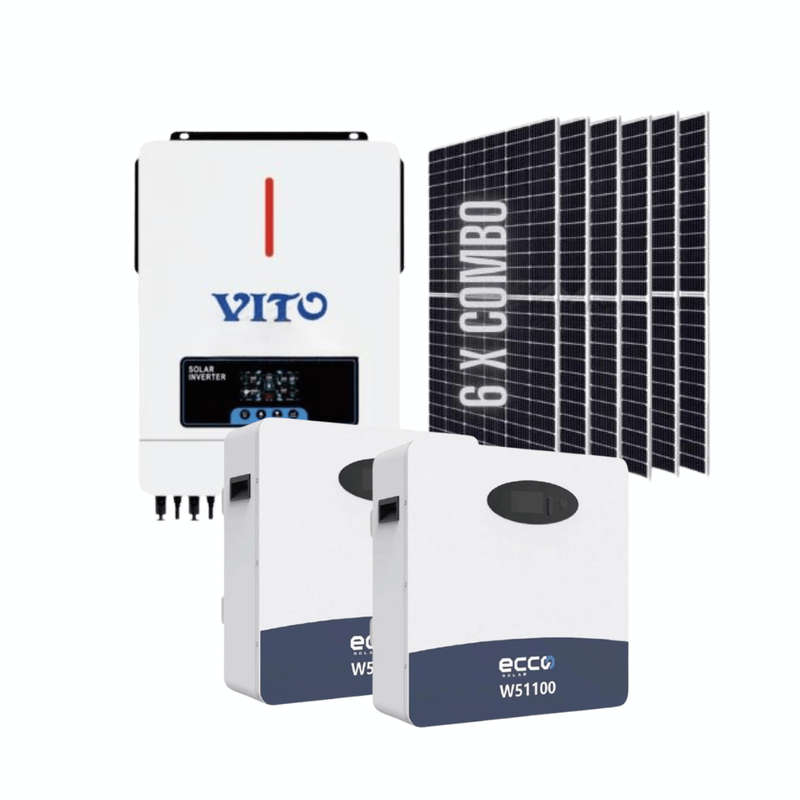

Included in the Kit:

• 1x Vito 10.2KVA Hybrid Inverter (Off-Grid / Backup)
• 2x ECCO 5.12kWh Lithium Batteries (Wall-Mounted)
• 6x 545W Monocrystalline Solar Panels Tier 1
• Battery Cables & Mounts
• User Manual

Inverter Specifications:

• Nominal Power Output: 10,200W
• MPPT Voltage Range: 90V - 450V DC
• Max PV Array Open Circuit Voltage: 500V DC
• Nominal AC Output Voltage: 220/230/240V AC
• Operating Frequency: 50/60Hz
• Maximum Efficiency: 97%
• Power Factor: >0.99
• Weight: 16.9kg
• Dimensions: 618 x 463 x 205mm

Battery Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Capacity: 100Ah (5.12kWh per battery, total 10.24kWh)
• Maximum Continuous Discharge Power: 5,500W
• Peak Discharge Power: 7,500W
• Charging Voltage: 56.4V (recommended)
• Cycle Life: Up to 20x longer than lead-acid batteries
• Safety Features: Short circuit protection, reverse connection protection, overcharge protection
• Operating Temperature Range: -20°C to 60°C
• Communication Protocols: RS485, RS232, CAN
• IP Rating: IP54
• Design Life: 15 years
• Weight: 49kg
• Dimensions: 480 x 170 x 500mm

Important Notes:

• Solar panels are couriered at the buyer's risk.
• Wi-Fi dongle is not included.
• The fan operates continuously.
• Installation must be carried out by a qualified electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) is required for warranty claims.

Warranty Information:

• Inverter: 2-Year Repair Warranty
• Battery: 5-Year Manufacturer's Warranty
