Simple three-step installation

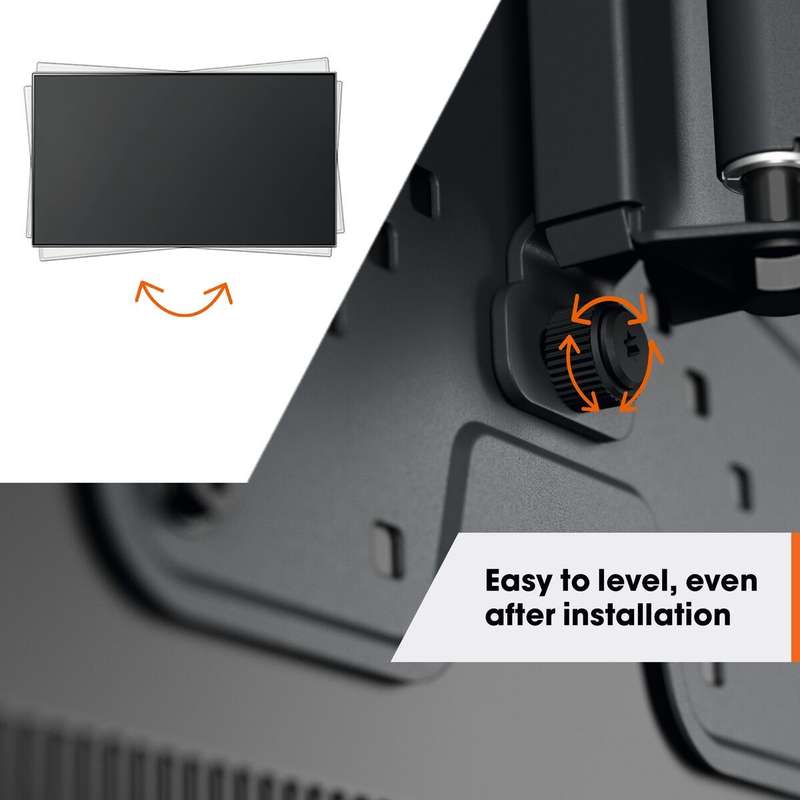

Thanks to the unique EasyFIX system, installing the QUICK Full-Motion TV wall mount takes just three steps. It takes no more than 30 minutes to mount your TV beautifully. Is it mounted a little bit crooked? No worries. Even after installation, you can easily straighten your TV.
The convenience of Vogel's

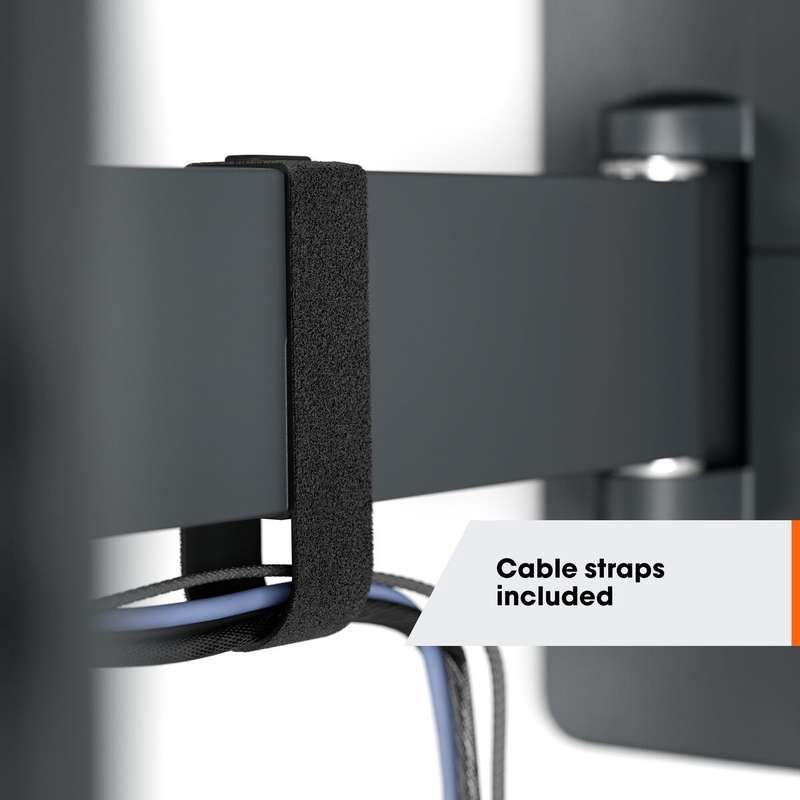

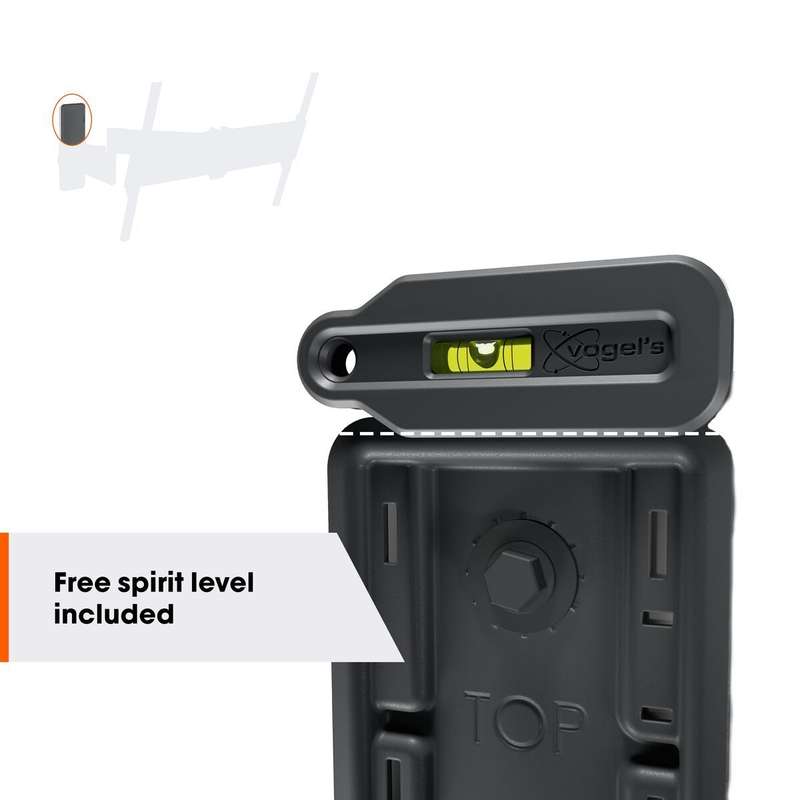

Vogel's makes installing your QUICK Full-Motion TV wall mount easy in every way. A drilling template, screws and Fischer® DuoPower plugs are included as standard. Also included in the packaging: a spirit level and a cable tie to bind cables tightly and securely together. To easily mark out the first drill hole, you can use our free DrillRight app. All basic installation instructions are clearly explained in the Quick Installation Guide. And if you want, you can also view the detailed manual or the installation video online.
100% safe
When it comes to safety, Vogel's makes no compromises. Every QUICK Full-Motion TV wall mount is TÜV-certified and meets the highest safety requirements. All of our wall mounts are also tested at three times their maximum weight capacity. So, you can be sure that your TV is mounted 100% safely. There's a good reason that you get a 5-year warranty.
Consciously designed
The environmental impact of this product is 9,7 kg CO equivalent. At Vogel's, we think it is important to know your product inside out. This allows us to make the best design choices for the next generation of TV mounts. Want more details on the impact of this product? Then take a look at the ecosheet under Downloads.
Specifications:
EAN single box: 8712285347580
Min. screen size (inch): 32
Max. screen size (inch): 65
Max. weight load (kg): 25

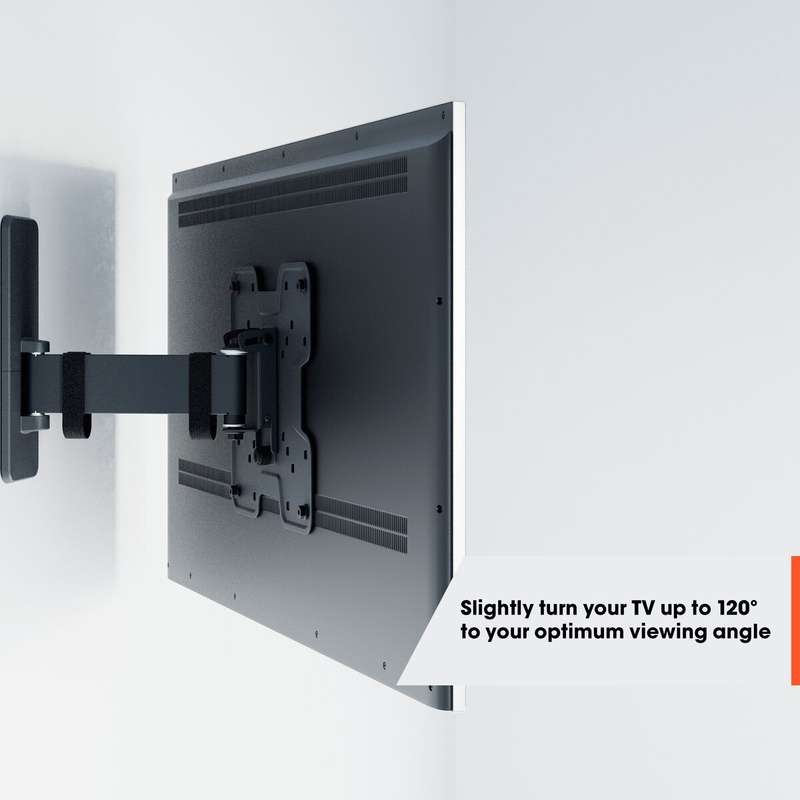

Maximum rotation: Motion (up to 120°)
Maximum tilt: Tilt up to 15°
Hole pattern (VESA): 100 mm x 100 mm, 100 mm x 200 mm, 200 mm x 100 mm, 200 mm x 200 mm, 200 mm x 300 mm, 300 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 300 mm, 400 mm x 400 mm
Min. distance to the wall (mm): 71
Max. distance to the wall (mm): 317
Min. distance to the wall (inch): 2.8
Number of pivot points: 2

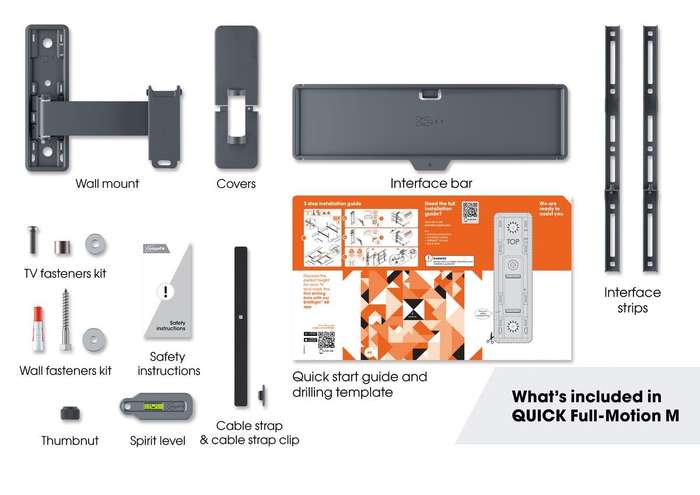

What's in the box: Wall mount, Cable strap, Wall mounting kit with fischer® Duo Power plugs, TV fasteners kit, Spirit level, Quick Installation Guide, DrillRight app, Drilling template
Product category: Full-Motion TV Wall Mount
