Wago (734-136) Terminal Block, Header, 3.5 mm, 6 Ways

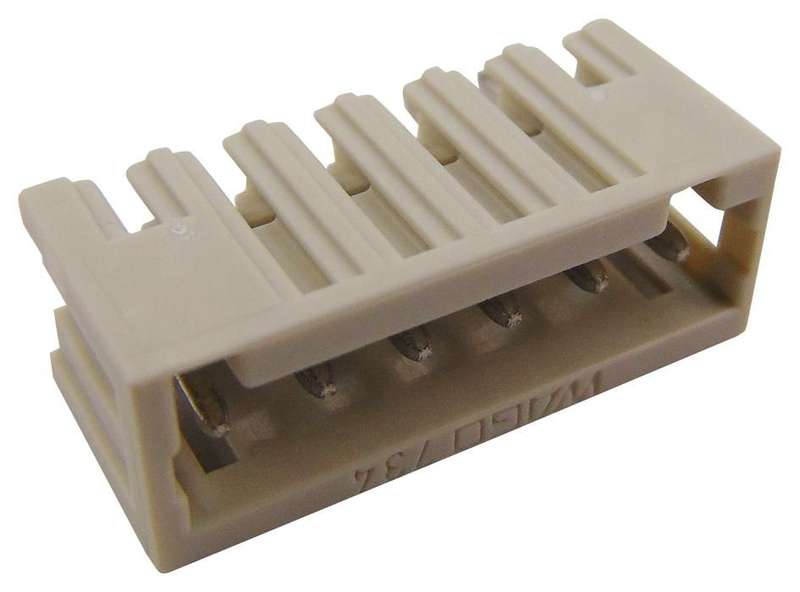

Terminal Block, Header, 3.5 mm, 6 Ways, 10 A, 300 V, Through Hole VerticalProduct OverviewThe 734-136 from Wago is a light gray colour, 6-pole male header for PCBs with3.5mm (0.138inch) pin spacing and 1mm x 1mm straight solder pins. It is 100%protected against mismating with threaded flanges, only mating halves with thesame pole number can be connected together. The connector has tin platedelectrolytic copper (Ecu) contacts and polyamide 66 (PA 66) insulation. It has0.034MJ fire load, 2.08g weight and 30.5mm (1.201inch) x 14.8mm (0.583inch) x8.5mm (0.335inch) dimension (W x H x D). Coding options are available. Theconnector has UR E45171 (Underwriters Laboratories Inc) approval.1mm x 1mm pin cross section allows nominal current up to 10ASolder pin length is 4.5mm, vertical PCB mountingRatings per IEC/EN 60664-1 standards and flammability class per UL94 V0Robust housing, shock and vibration resistantRated impulse voltage of 2.5KV (III/3), 2.5KV (III/2) and 2.5KV (II/2)Rated voltage of 160V (III/2), 320V (II /2) and rated current of 10ALimit temperature range from -60°C to 100°CApplicationsIndustrialProduct InformationPitch Spacing: 3.5mmRated Current: 10ARated Voltage: 300VProduct Range: MCS MINI 734
