Waveshare 24782 DTOF Laser Lidar Sensor STL27L, 360 Degree Omni-Directional Lidar, UART Bus

New 10 were available
R7,010.63
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD05765285
Bob Shop ID
636105041

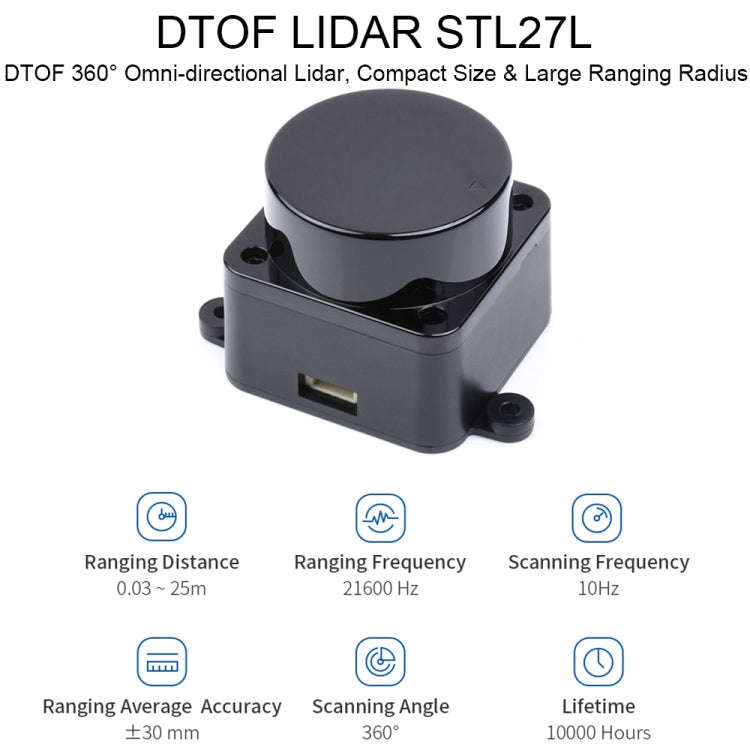

1. Ranging distance: 0.03-2M, 2-8M, greater than 8M
2. Average error: 15mm, 20mm, 30mm
3. Overall standard deviation: 5mm, 15mm, 25mm
4. Ranging distance: 0.03~25.00m (target surface reflectivity is 80.6%)
5. Scanning frequency: 10Hz
6. Scanning angle: 360°
7. Ranging frequency: 21600Hz
8. Angular resolution: 0.167°
9. Wavelength: 895-915 nm (Typ 905)
10. Communication interface: UART@921600
11. Ambient light intensity: 60 KLux
12. Power supply: 4.5-5V (typically 5V)
13. Power consumption: 1.45W
14. Working current: 290mA
15. Working temperature: minus 10-50 degrees Celsius
16. Service life: 10000H

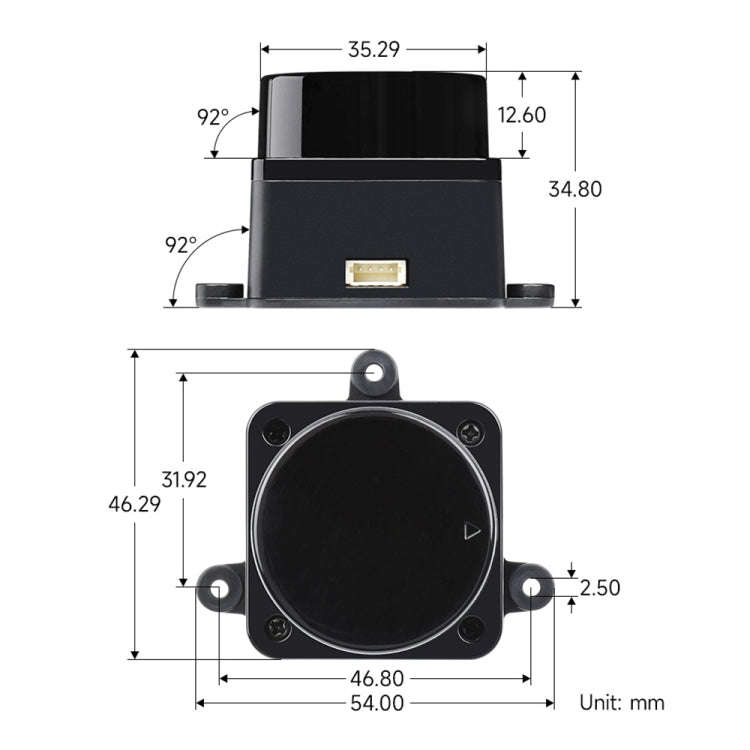

17. Dimensions: 34.8 x 54 x 46.29mm
18. Product weight: 46.1 grams

Packing list:
-DTOF lidar STL27L x 1
-LiDAR driver x 1 with ESP8266 adapter
-1m USB Type-A to Type-C cable x 1
-11cm PH2.0 to 1.27H cable x 1
