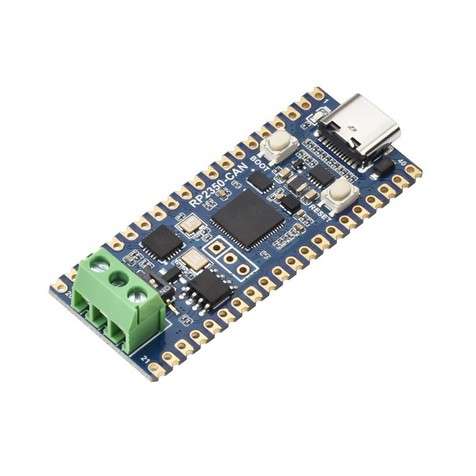

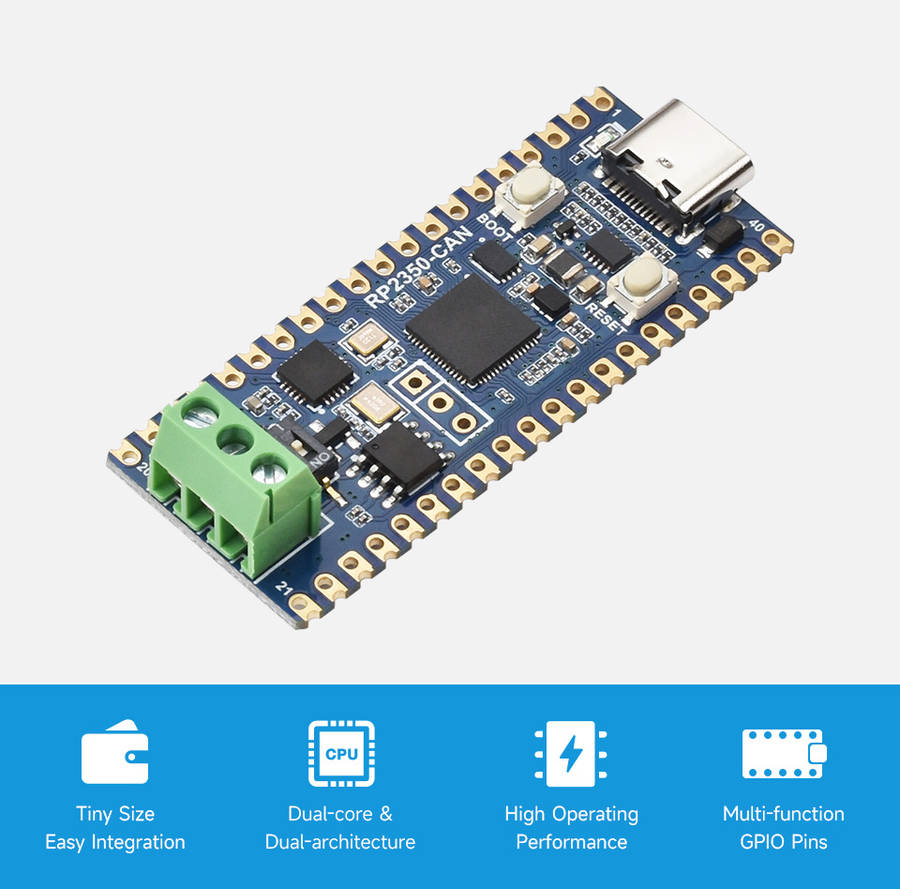

Waveshare RP2350 CAN Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller - Onboard XL2515 CAN Controller

Product Description

The Waveshare RP2350 CAN Development Board is a high-performance embedded solution designed for CAN bus communication projects. Powered by the Raspberry Pi RP2350A microcontroller, it features a dual-core, dual-architecture (ARM Cortex-M0+ and AndesCore N22) design, delivering both flexibility and efficiency for a wide range of embedded and IoT applications. Equipped with the onboard XL2515 CAN controller and transceiver, this board enables seamless integration with Controller Area Network (CAN) systems, making it ideal for industrial automation, automotive electronics, and real-time control systems.

Its compact layout, rich I/O interfaces, and robust processing capabilities make the RP2350 CAN Development Board a perfect choice for developers and engineers building custom CAN-based solutions.

Product Specs

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
520KB SRAM and 4MB onboard Flash memory

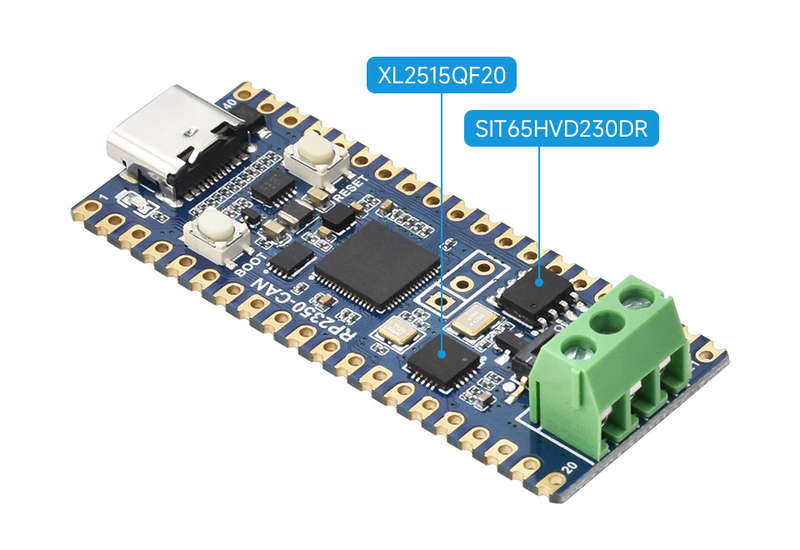

Onboard XL2515 CAN controller, fully supports CAN V2.0B specification with communication rate up to 1 Mbps
Type-C connector, keeps it up to date, easier to use
Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB

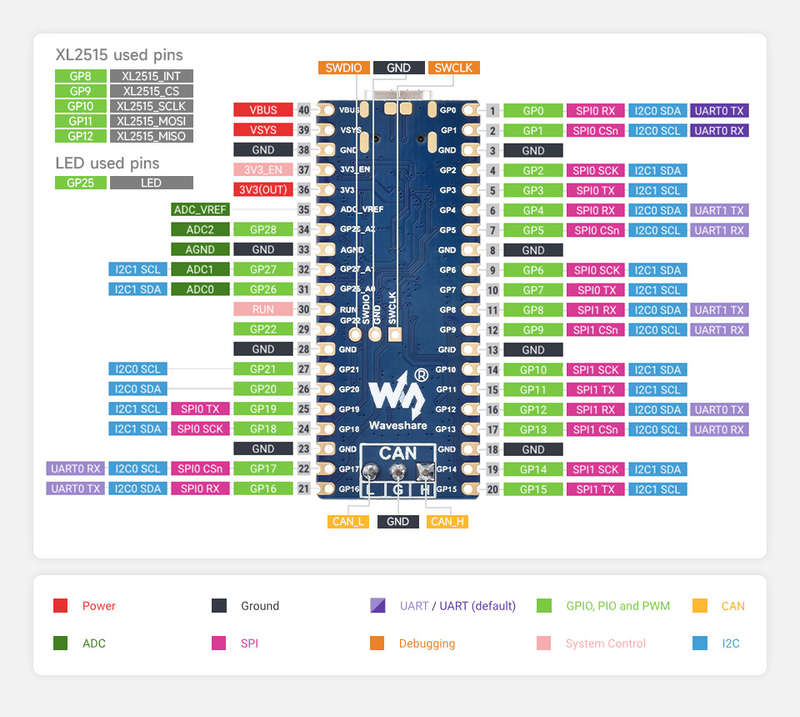

2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

Fully supports CAN V2.0B specification and is capable of transmitting and receiving standard, extended, and remote frames. The communication rate is up to 1 Mbps with SIT65HVD230 transceiver.
