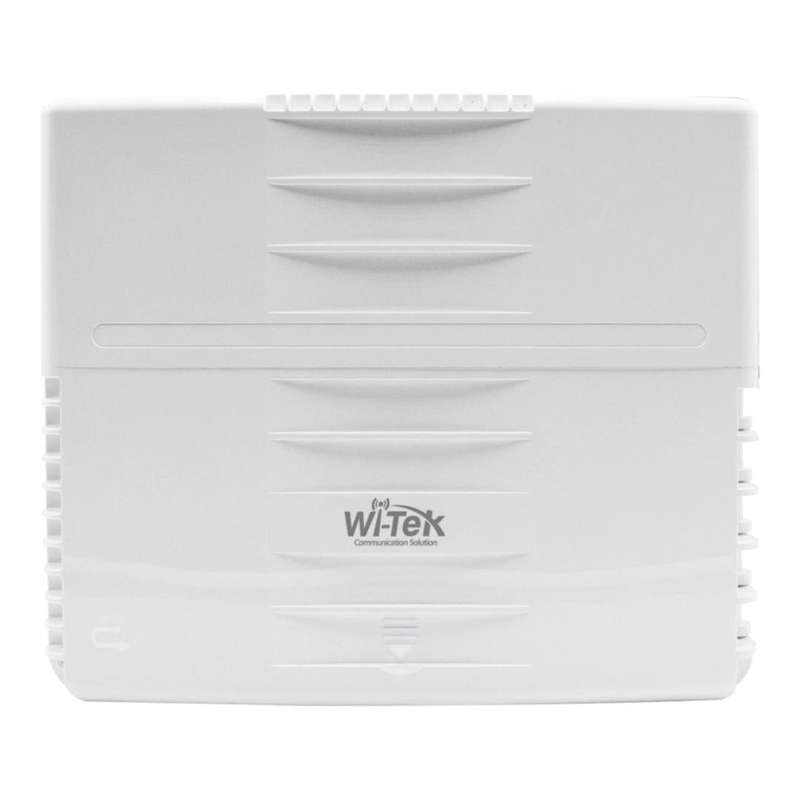

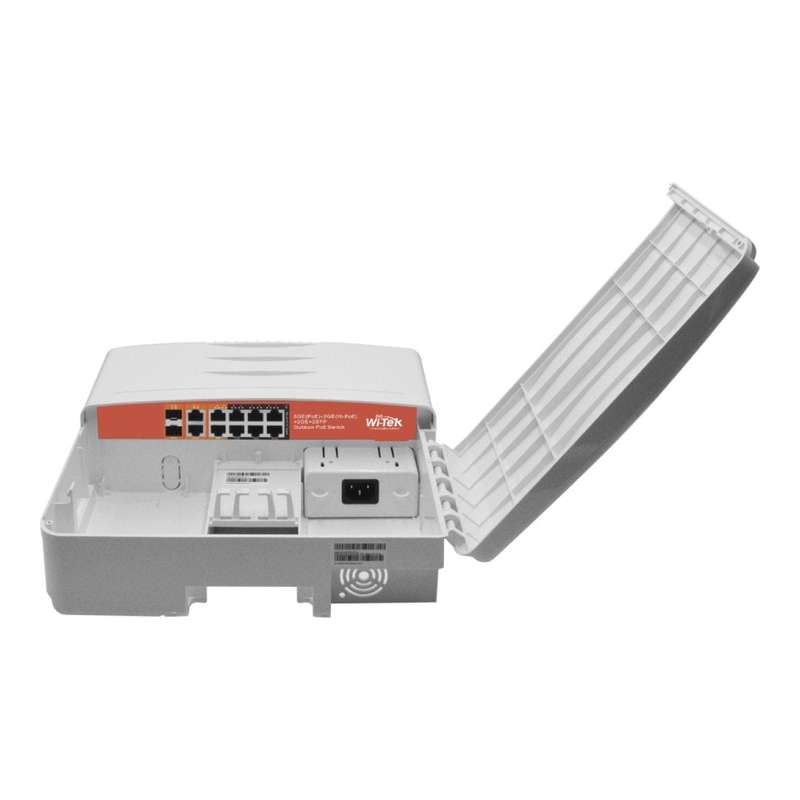

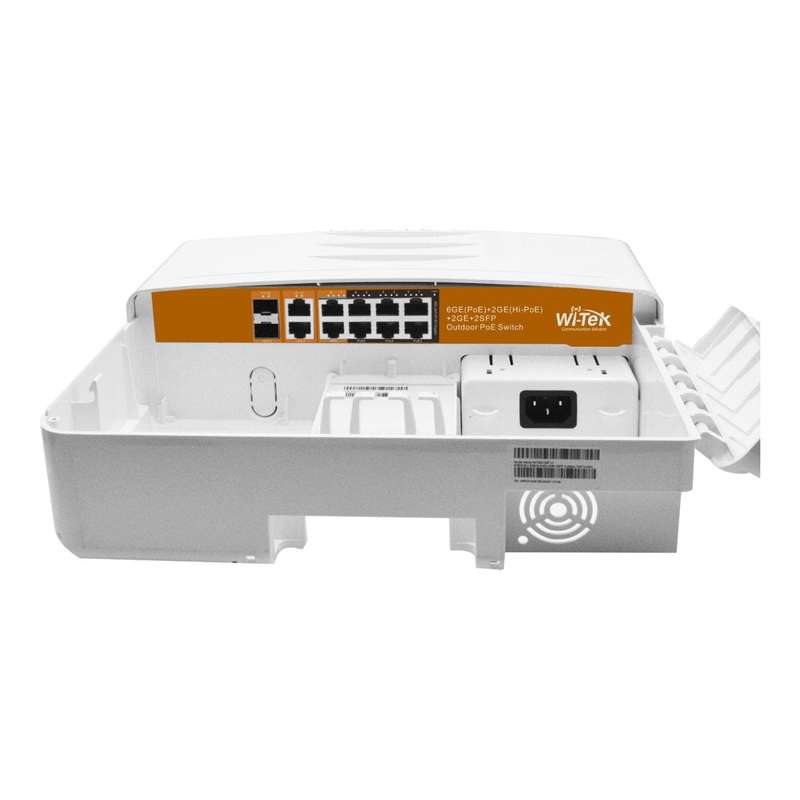

Wi-Tek 8-port GbE PoE Outdoor Switch with 2x GbE Uplink and 2x SFP ports WI-PS310GF-O

Wi-Tek Outdoor PoE Switch is a great solution for installers and customers, who now no longer have to order separate parts and assemble them into an outdoor enclosure box. Wi-Tek Outdoor PoE Switch comes with IP65 weather proof, 6kV surge protection, enabling your IP cameras and wireless access points in temperatures ranging from -30°C to 70°C. Wi-Tek Outdoor Waterproof 802.3af/at PoE Switch Series IP65 gigabit PoE switch featured is designed for industrial and commercial applications, e.g. video surveillance, remote security, commercial wifi installations.

Features

• All-in-one for easy installation
• Supports PoE IEEE802.3 af/at/bt for compliant PDs
• PoE Watchdog(PD Alive)
• 120W Internal Power
• 10kV AC Surge Protection / 6kV PoE Surge Protection
• -30°C to 70°C working temperature
• IP65 Weatherproof enclosure

Technical Specification

Product: Wi-Tek 6GE(PoE)+2GE(Hi-PoE)+2GE+2SFP Outdoor PoE Switch

Exchange Capacity: 24 Gbps

Packet Forwarding Rate: 17.37 Mpps

Mac Address Table: 8k

Jumbo Frame: 10240 Bytes

Interface

• 8x 1000/1000Mbps RJ45 PoE Ports
• 2x 100/1000Mbps Uplink Ports
• 2x 100/1000Mbps SFP Slots

PoE Ports

• Port 1- 6: 802.3af/at
• Port 7- 8: 802.3 bt 60W

Network Media

• 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(100m)
• 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(100m)
• 1000BASE-TX: 6 Category and above UTP(150m)

Power Budget: 120 W

Power Supply: AC 110~240V 50/60HZ

PoE Watchdog: Yes

Protection: 6kV PoE Surge Protection / 10kV AC Surge Protection

Weight: 1.4 kg

Package Contents

• 1x PoE Switch
• 1x Power cord
• 1x Guide Book/Warranty Card
• 1x Mount Kit
• 6x Screws
