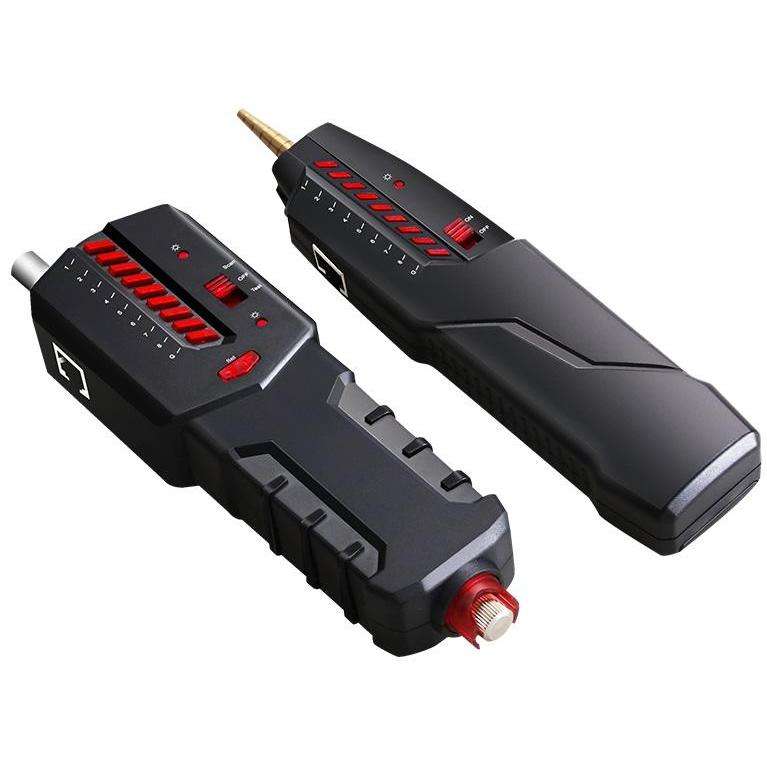

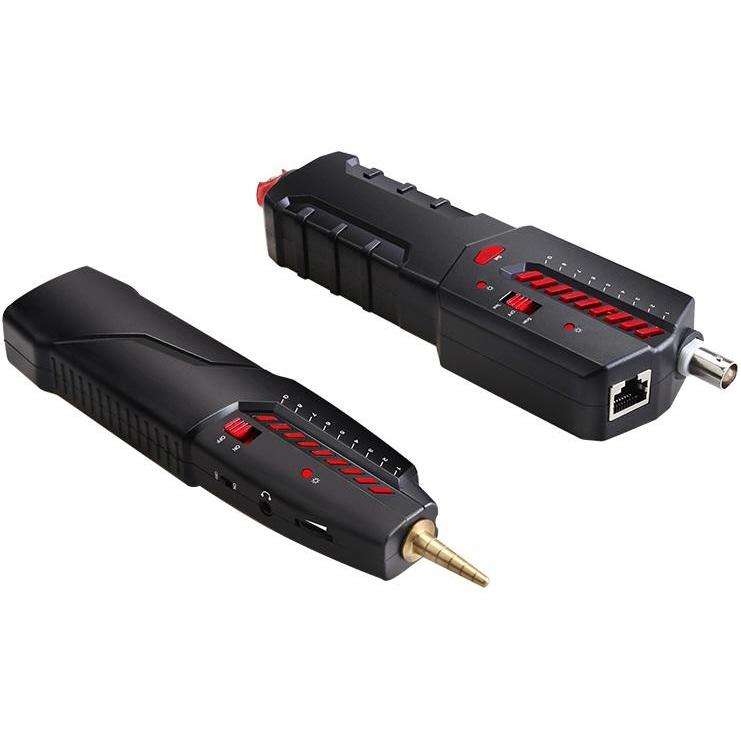

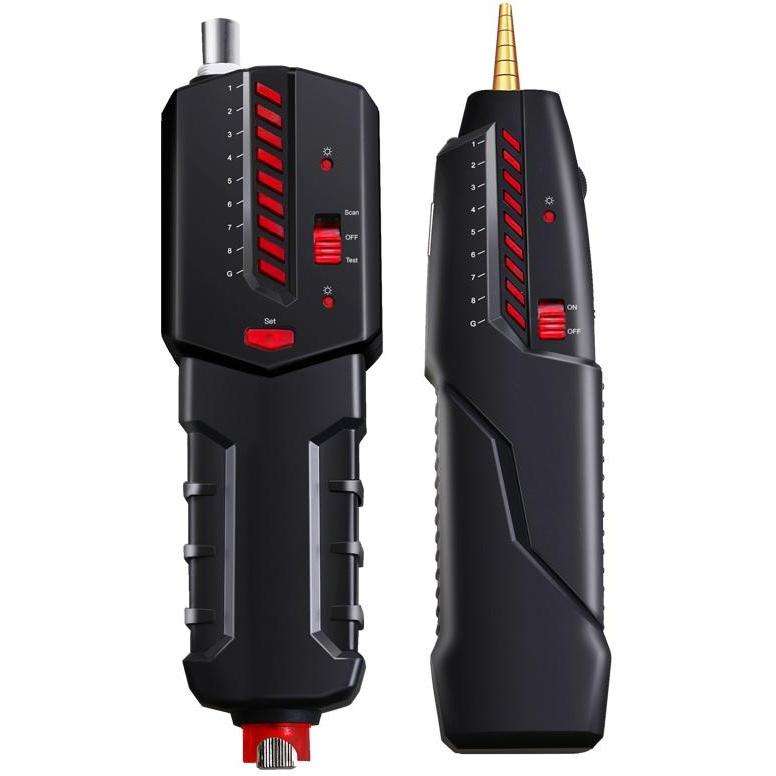

WIRE TRACKER - TXJ001
Test Wire Type_ Network Cable, Telephone Line, BNC Cable, Single Wire, Fiber Optical Cable
Application: Telephone Wire, Coaxial Cable, USB Cable
Type: Cable Tester
Brand Name_ DIEWU
Anti - Broken: Support
LED Light: Support
POE Switch Online Test_ Support
Test The Maximum Length Of The Network Cable_ >200 Meters
Maximum Distance To Find The Line_ >300 Meters
Transmitter Maximum Withstand Voltage_ 60V
Max Voltage;48V
Receiver Withstand Voltage_ 9V
Transmitter Signal Frequency_ 455KHz
Battery Specifications_ 9V
Transmitter Power Consumption_ Maximum 0.15W
Receiver Power Consumption_ Maximum 0.2W
Laser Emission Power_ Maximum 5mW
Environment
Operating Temperature: 0C -55C
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -10C -60C
Relative Humidity: 10%-90% (non-condensing)
Product Feature
Support Non-Standard S-POE Plug - In - Free Live Cable hunting
Support Plug - In - Free Online Test Network Cable On and Off
Support Standard POE Plug - In - Free Live Cable hunting
Support Line Finding Sound and Line - Measuring Speed Switching
Support BNC Cable and Telephone Line hunting -Support
Fiber Optic Cable On and Off (Optional)-Power Saving design, Support Automatic shutdown
5 - star drop - proof /6-level dust - proof
Support Power Polarity Test
https://www.micropointsa.co.za/assets/documents/txj001/user-manual/user-manual.pdf
