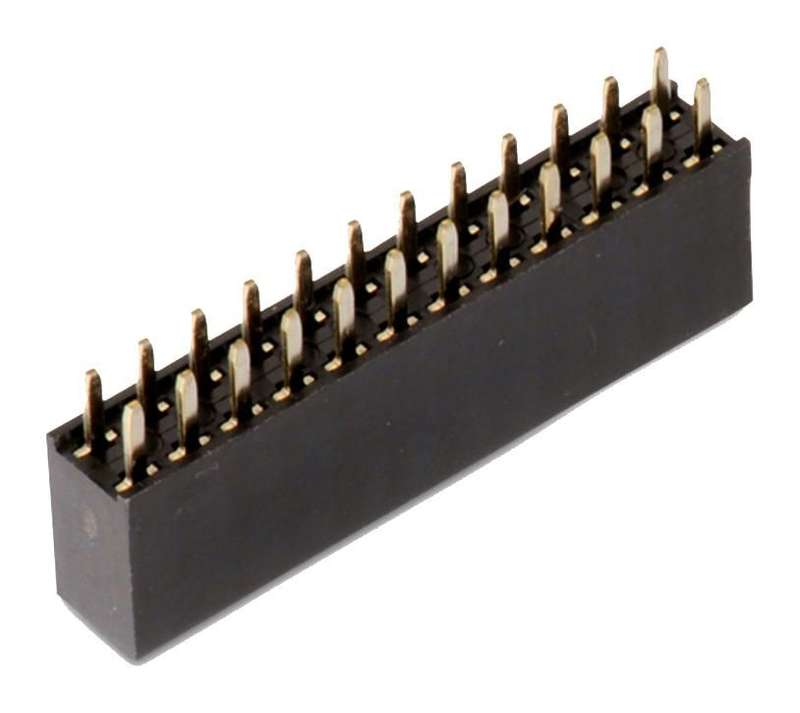

Wurth (61303621821) PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows

PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 36 Contacts, Through HoleMount, WR-PHDMaterial Properties:Insulator Material PBTInsulator Flammability Rating UL94 V-0Insulator Color BlackContact Material Copper AlloyContact Plating GoldContact Type StampedGeneral Information:Operating Temperature -40 up to +105 °CElectrical Properties:Properties Test conditions Value Unit Tol.Rated Current I R 3 AWorking Voltage 250 V (AC)Withstanding Voltage 1 min 500 V (AC)Contact Resistance R 20 m? max.Insulation Resistance RISO 1000 M? min.Certification:RoHS Approval Compliant [2011/65/EU&2015/863]REACh Approval Conform or declared [(EC)1907/2006]UL Approval E323964
