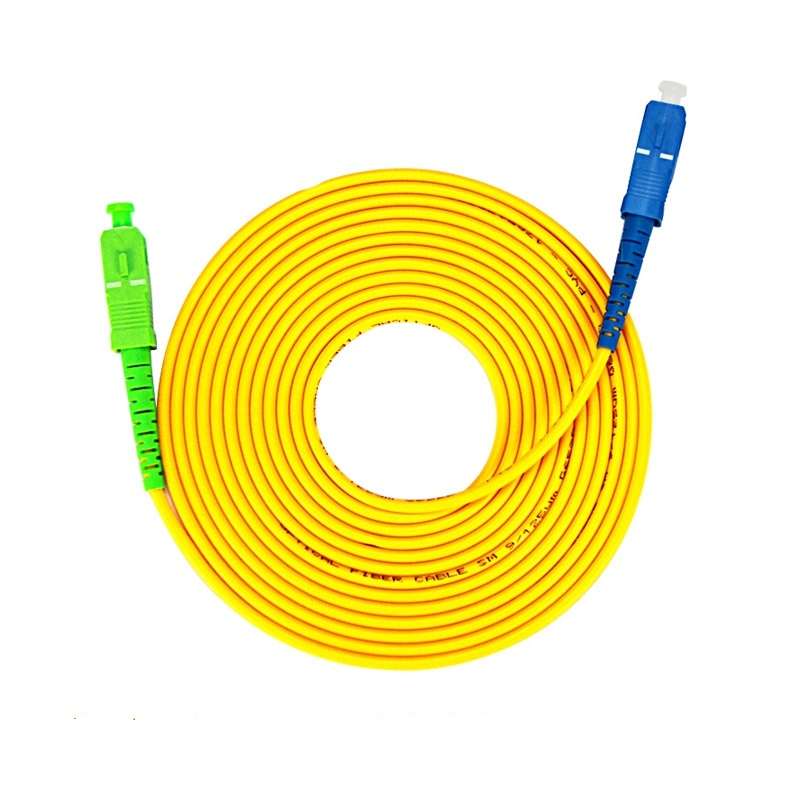

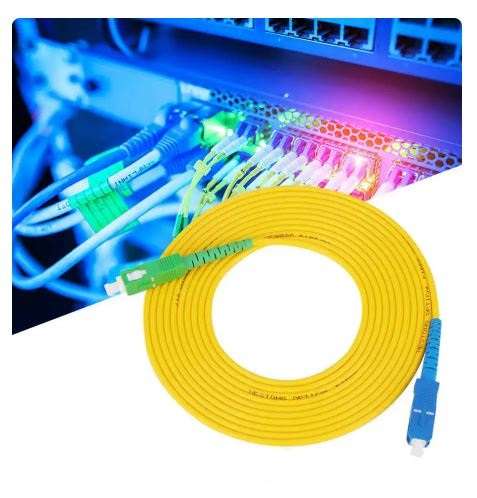

XF0165-3 SC/APC , LC/UPC Simplex Single Mode Fiber Optic Patch Cord 2.0mm 10M
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
',- 2.0 mm diameter patch cord cables are manufactured with ITU-T G657.A2 bend sensitive fibers, then assembled at one end with SC type, other ends with LC type connectors
, Insertion Loss (IEC 61300-3-4-Method-B): ? 0.30 dB
, Return Loss (IEC 61300-3-6-Method-B): ? 50 dB (UPC), ? 60 dB (APC)
, Durability: ,500 matings
, Flammability: UL94 V-0
, Operating Temperature: -40?C to +85?C
, Connector End Face Geometry: IEC 61755-3
, LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS
, SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS
, FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS
, ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS
, LSH Connector Compliance: IEC 61754 , 15, TIA 604 , 16, RoHS
Package Weight: 50g
Package Dimensions: 18cm x 18cm x 2cm
Package Includes:
1 x Simplex Single Mode Fiber Optic Patch Cord 10M
