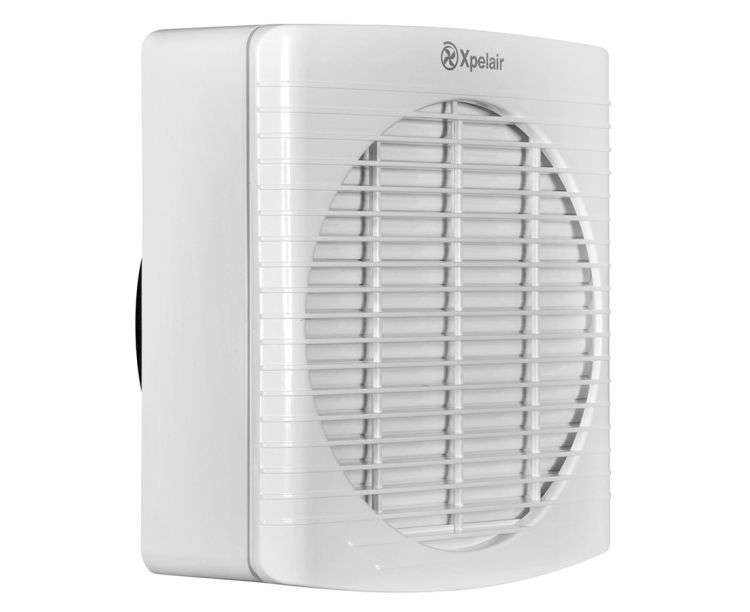

Xpelair GX Single Speed Window/Surface Extractor Fans - 312mm
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Both the GX9 and GX12 models are reversible and feature a totally enclosed external rotor motor providing constant volume outputs, even in gusty weather. Pre-balanced impellers eliminate "fan judder" and ensure quiet, trouble-free operation. Sealed for life, maintenance free bearings ensure suitability for running at any angle. Running costs are impressively low, and when not in use the silent electro-thermal shutter closes silently against backdraughts. A tamper-proof positive plug and socket assembly provides a means of isolation for service access. Installation in a 25mm window or panel using standard metal ladder strips. If installed in panels or walls thicker than 25mm, then useGXL20/50 extended ladder strips to enable connection of outer grille to inside of fan (3 for GX9 and 4 forGX12). All models are and suitable for 220V-240V 50Hz mains operation. Class B insulation for operation in ambient temperatures up to 40Cand are fitted with a thermal cut out.
Product Features
- Single speed
- Pullcord switches fan On/Off and opens shutter
- Extract only
- Extract Performance (m^3/h) = 520
- Extract Performance (I/s) = 145
Technical Specifications
| Colour: | White |
| Finish: | Matt |
| Mounting Type: | Surface |
| Shape: | Square |
| Voltage: | 240V |
| Height: | 312mm |
| Width: | 294mm |
| Depth: | 35mm |
| Ambient Temperature: | 40 |
