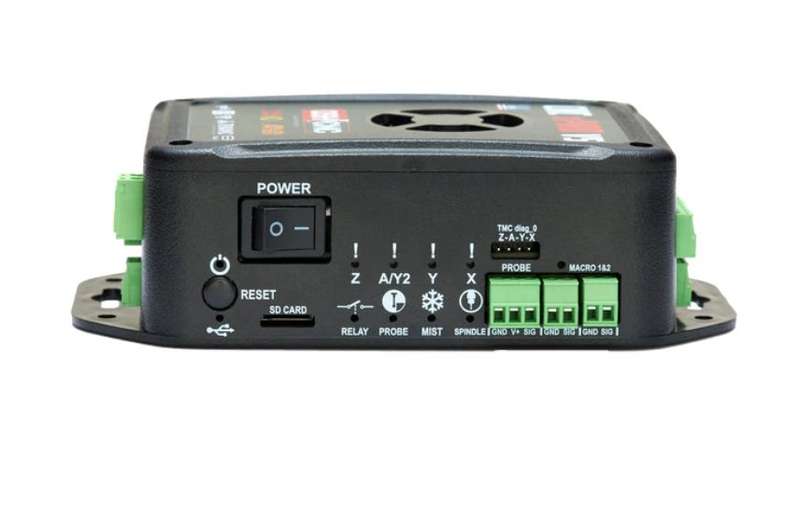

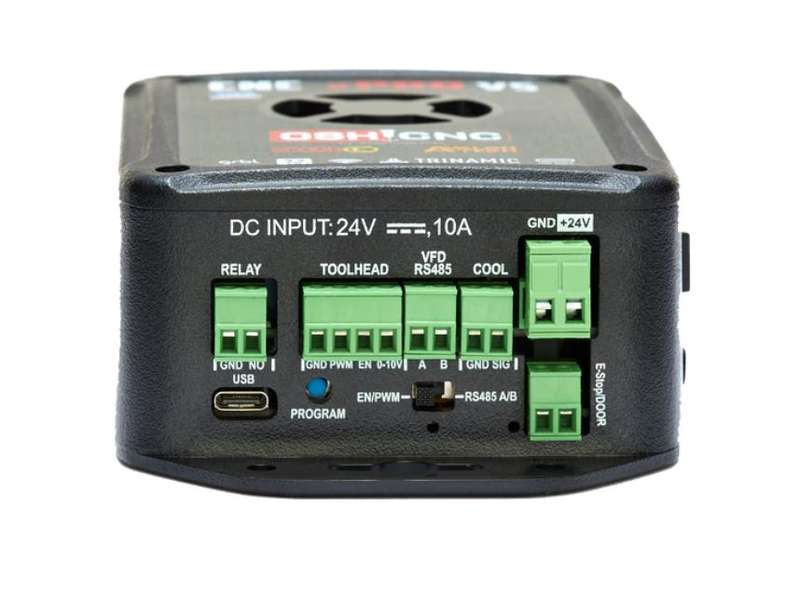

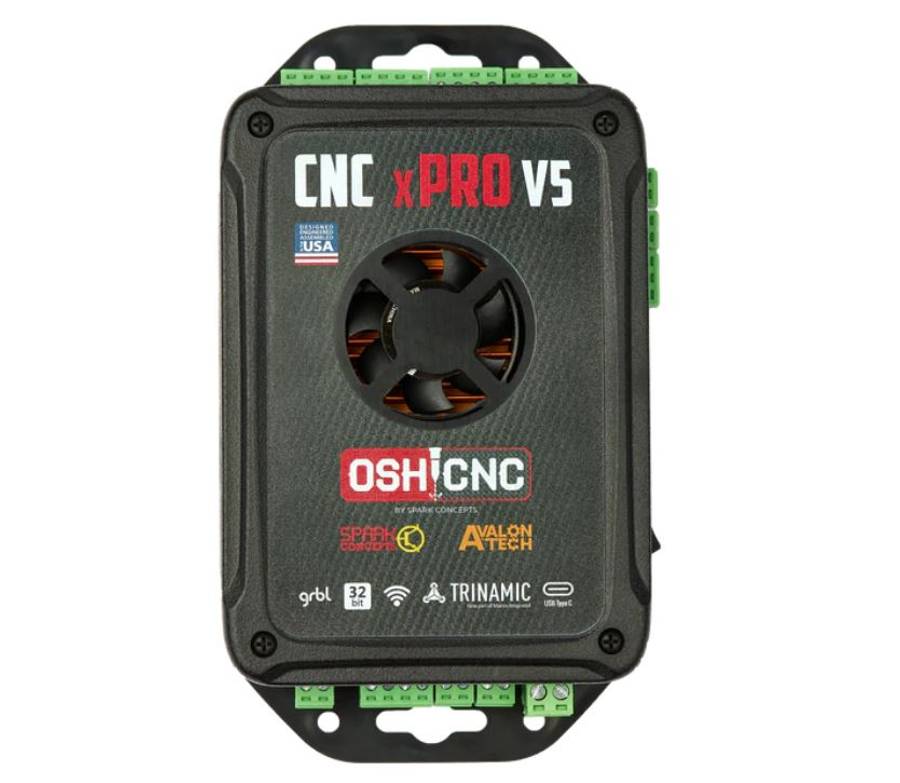

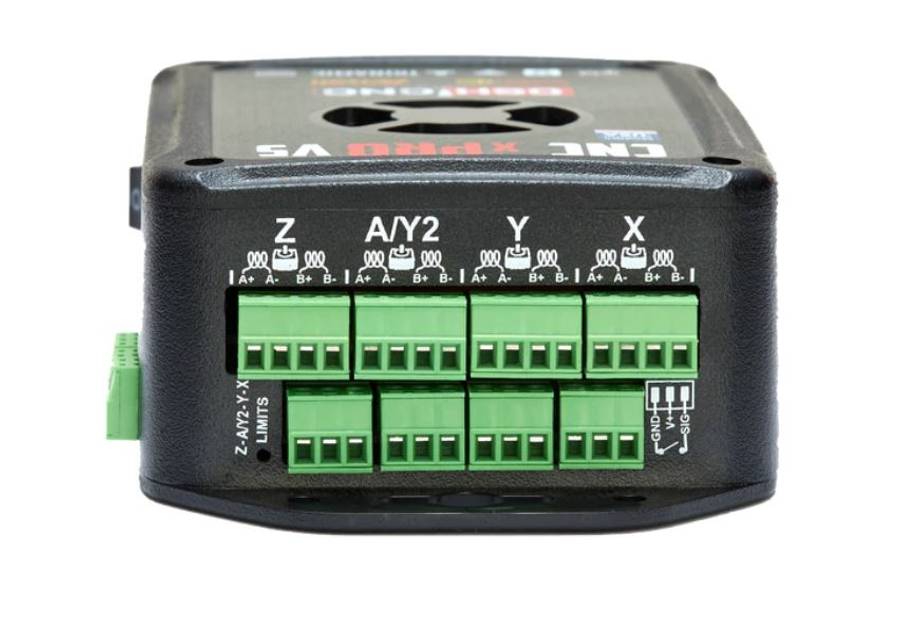

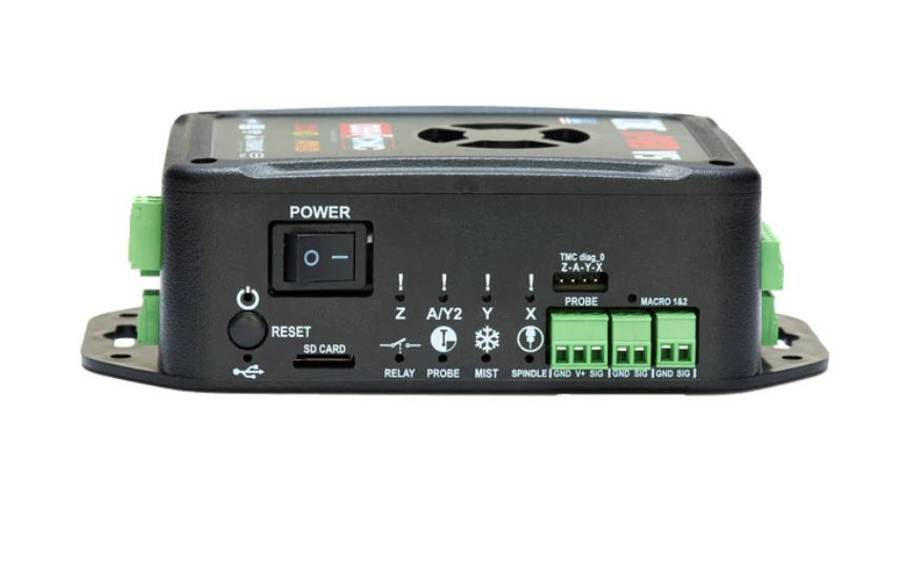

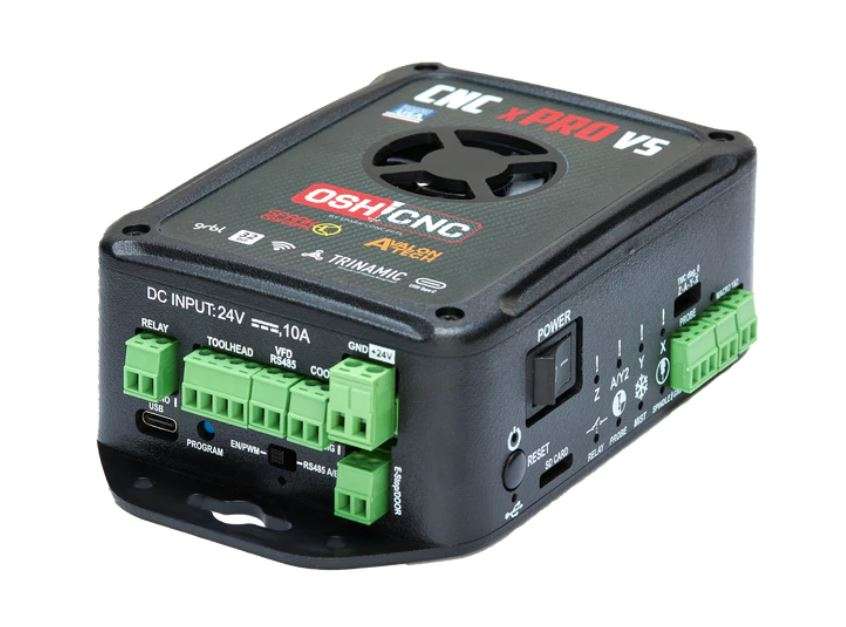

xPRO V5 GRBL Controller Board
Product Description
The XPRO V5 is the most advanced GRBL based motion controller in the World! Our plug-and-play xPRO V5 brings you the advanced stepping and power of Trianamic drivers along with Wifi and USB interfaces, all powered by a 32-bit processor and wrapped in a beautiful ABS case (with integrated cooling).
Product Features
- High Power 6A stepper drivers based on the Trinamic TMC5160
- Sleek Web Interface with cut-from-SD capability (SD card included)
- USB-C interface work with GRBL sender programs
- Built-in Heatsink & Temperature Controlled Cooling Fan
- Fully assembled in a custom ABS case
- VFD support - PWM, 0-10V, and RS485
- Laser support - PWM, 0-5V, 0-10V
- XYZ Probe input
- Integrated relay
- Safety Door/Estop switch terminal
- Integrated power switch
- 4 software-defined, independent motor drivers can:
- Clone any axis (default to XYYZ)
- True 4 axis motion XYZA
- Selectable limit switch voltage (5V or 24v)
Use the CNC XPRO to drive:
- 3 Axis CNC Mill With Dual Drive Motors
- 4 Axis CNC Mill with Rotary Table
- Laser Cutter With XY, and Z motion
- Plasma Cutter
- Pick and Place for SMD components
- Camera Sliders
- and Much More!
The xPRO comes fully assembled and programmed so all you need to do is wire up your motors and start cutting! The xPRO V5 is defaulted to support dual Y machines, or XYYZ, machines with a motor current of 2.8A.
From the computer side we have found that CNCjs Desktop is amazing and packed with great features! (open source / free download).
For designing parts here we use the following stacks:
For mechanical parts (think gantry plates, mounts, boxes, etc):
Fusion 360 (both CAD design and CAM, includes GRBL postprocessor by default) (free for hobbyists)
XPRO V5 WebUI (or CNCjs for USB mode (free/opensource))
For artwork (think signs, drawings, plaques, awards, etc):
Vetric Vcarve or Aspire depending on design (drawing and CAM, includes GRBL postprocessor) (paid)
XPRO V5 WebUI (or CNCjs for USB mode (free/opensource))
The xPRO V5 runs a 32bit port of the GRBL by Sonny Jeon. As such, the xPRO V5 can be used with most current GRBL senders and post-processors.
Product Resources
Product Guide
Manual Guide is provided upon order making it as simple as possible to get connected!
Please note: Locally Stocked, Available for Immediate Shipping!
