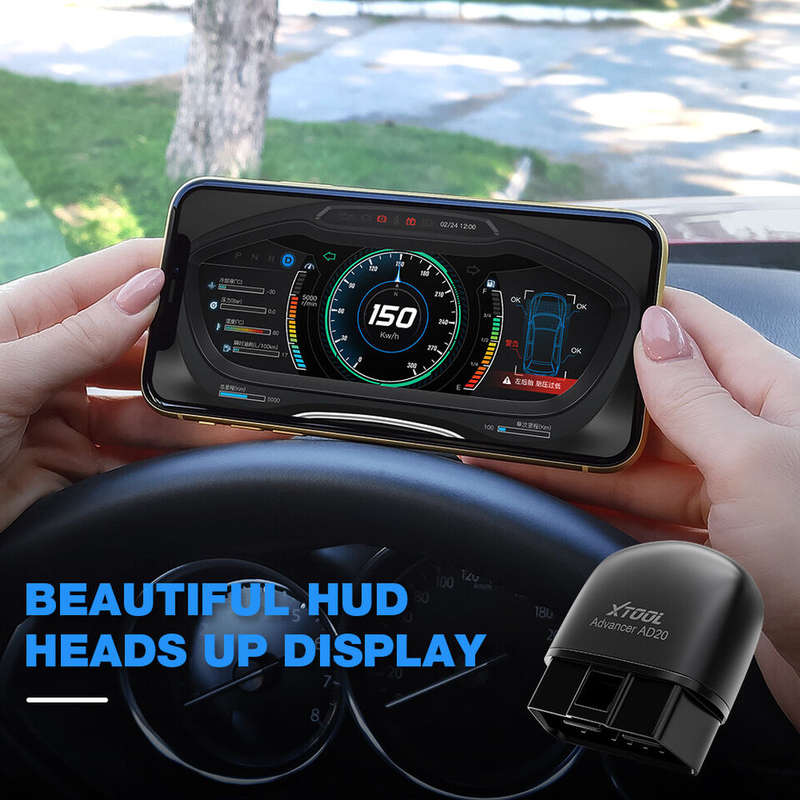

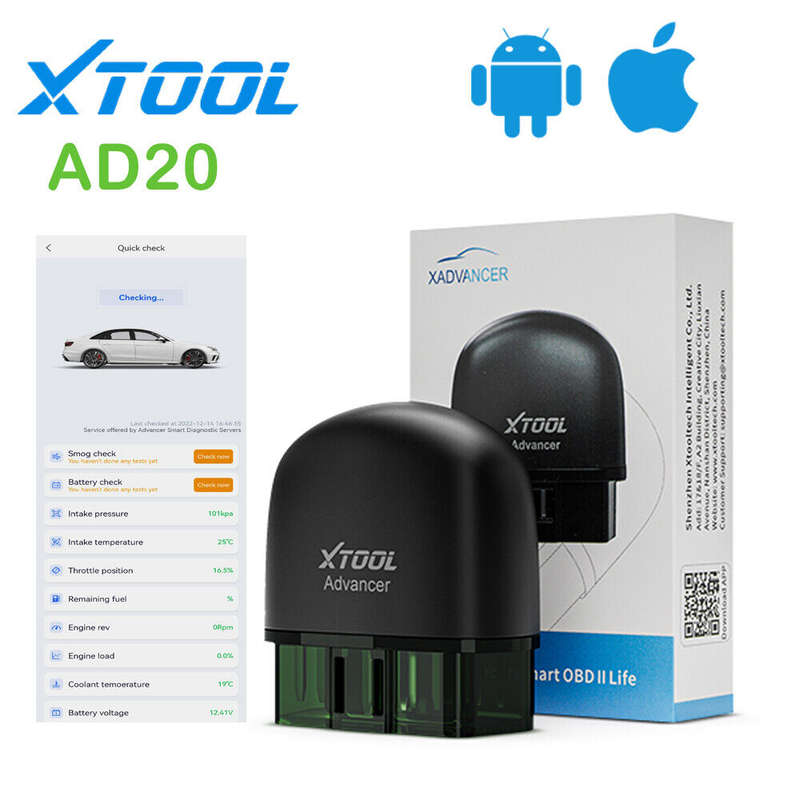

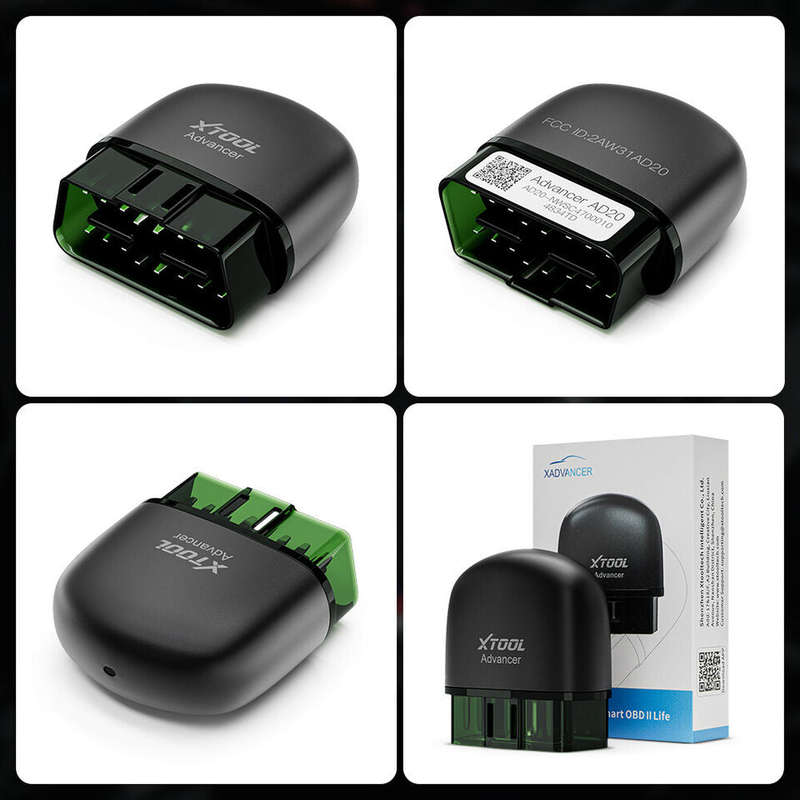

Xtool AD20 Advanced Wireless OBD System Diagnosis Tool

Compatible with all Gasoline vehicles in OBDII interface, which support 9 OBDII protocols:

1.SAE J1850 PWM(41.6Kbaud)

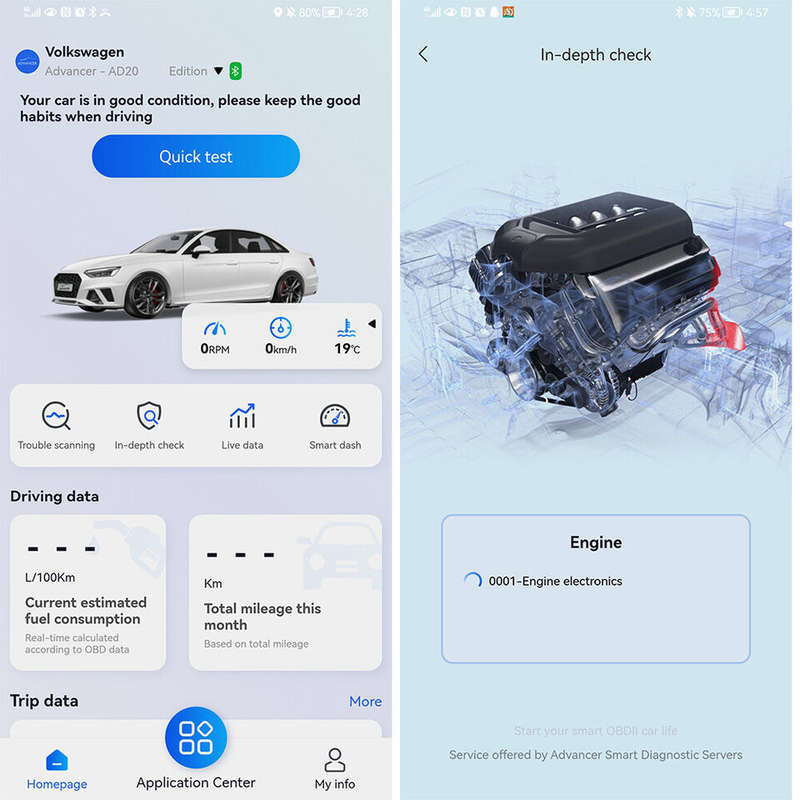

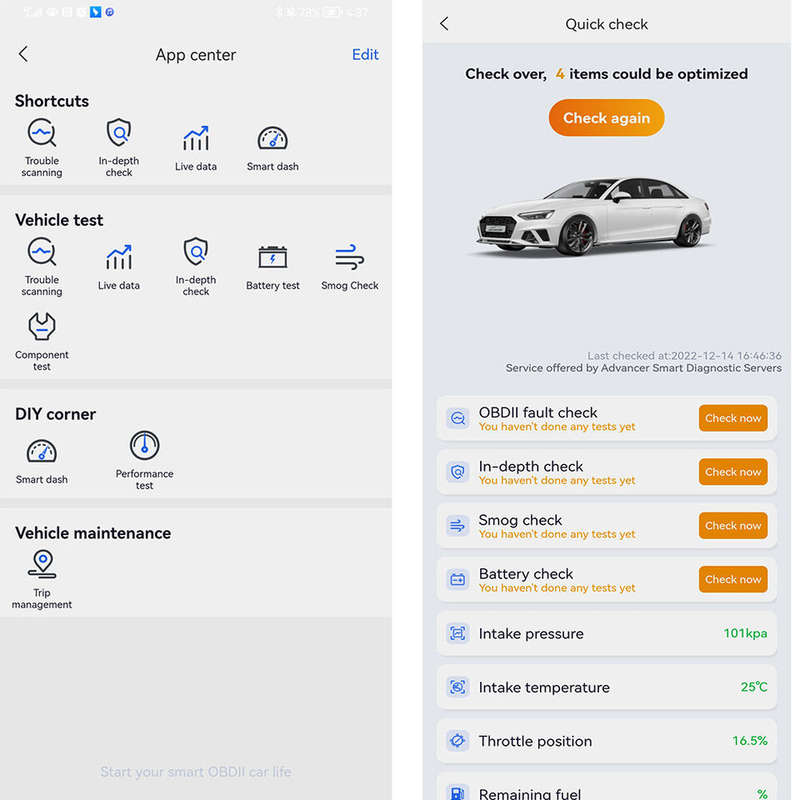

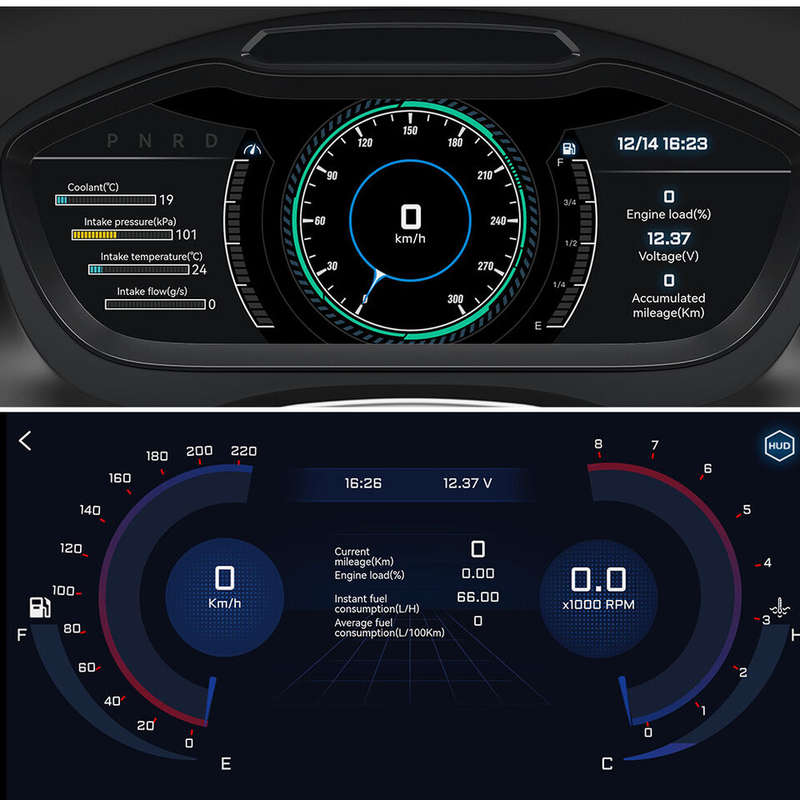

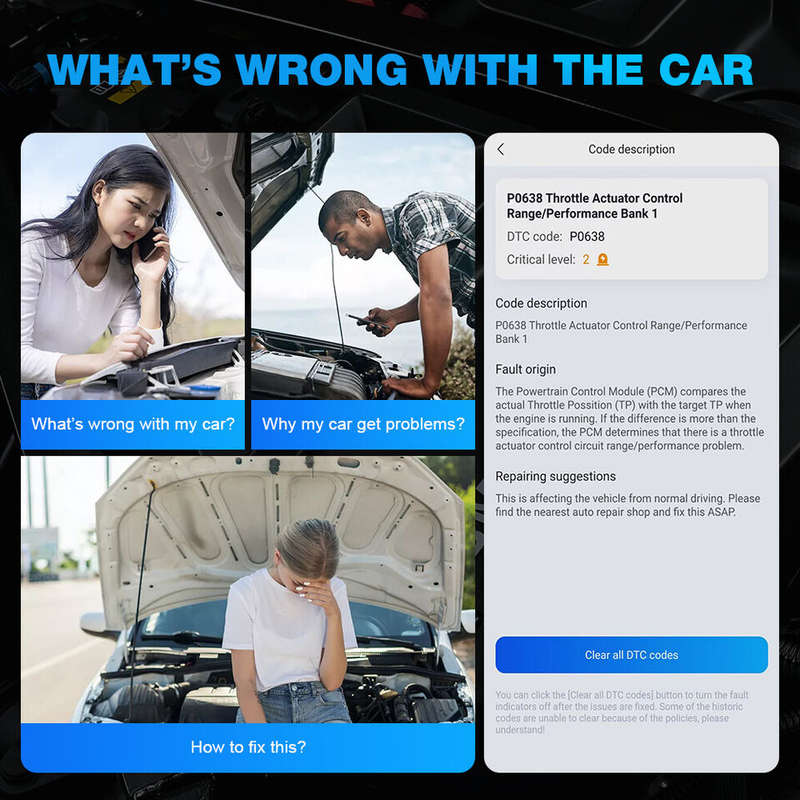

2.SAE J1850 VPW(10.4Kbaud) 3.ISO9141-2(5 baud init,10.4Kbaud) 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud) 5.ISO14230-4 KWP(fast init,10.4 Kbaud) 6.ISO15765-4 CAN(11bit ID,500 Kbaud) 7.ISO15765-4 CAN(29bit ID,500 Kbaud) 8.ISO15765-4 CAN(11bit ID,250 Kbaud) 9.ISO15765-4 CAN(29bit ID,250 Kbaud) Note: only Support 12V cars, Does not support 24V Truck Check Engine Light Faster and in-depth scan the engine modules, it helps to find out the hidden issue of the engine light. Focus on the important modes like read and clear codes, mode6 and mode8, you can easily to know the on-board monitor system and the evap system. You can also see the status of the misfire cylinder. Live Data When the car is started, Advancer will provide and demonstrate detailed vehicle status like battery voltage, engine RPM, coolant temperature, engine load, fuel trimming and so on. This will help you to get the real-time working conditions of the car. Components Test This function allows you to check the health status of the systems and the components of the vehicle. Currently we support to perform tests on batteries, fuel correction control system, emission system and air flow sensors. Also, through some tests we can know the status on the carbon built-up in the throttle. Battery Testing Let you better know your car's battery status. Smog check One of the most common and important checks that states require is a smog test or check. They're used to determine how much pollution your car returns to the Earth in the form of greenhouse gases and emissions from burning liquid dinosaurs. Each state is a little bit different, but the basic concept is the same: Make sure you're not driving a poorly maintained rattletrap. - 1996-1999 model year vehicles will be allowed one incomplete readiness/emission monitor - 2000 and newer model year vehicles will need all emission monitors in READY or COMPLETE status, with the exception of the EVAP monitor. AN incomplete evaporative monitor will not cause a smog check failure. lt will be the only monitor allowed to be incomplete on a 2000 & newer vehicle. avoiding being fined and reducing the carbon footprint, protect the environment. Performance Test This is a simple 0-100km/h counter for you to intuitively know how is the performance of your vehicle. Find a safe runway, stop your car and stay into idle, and then full on throttle. AD20 will automatically record your 0-100km/h time and the live data of the whole procedure. Make sure that you are doing performance tests on a safe and closed runway with no pedestrians nearby
