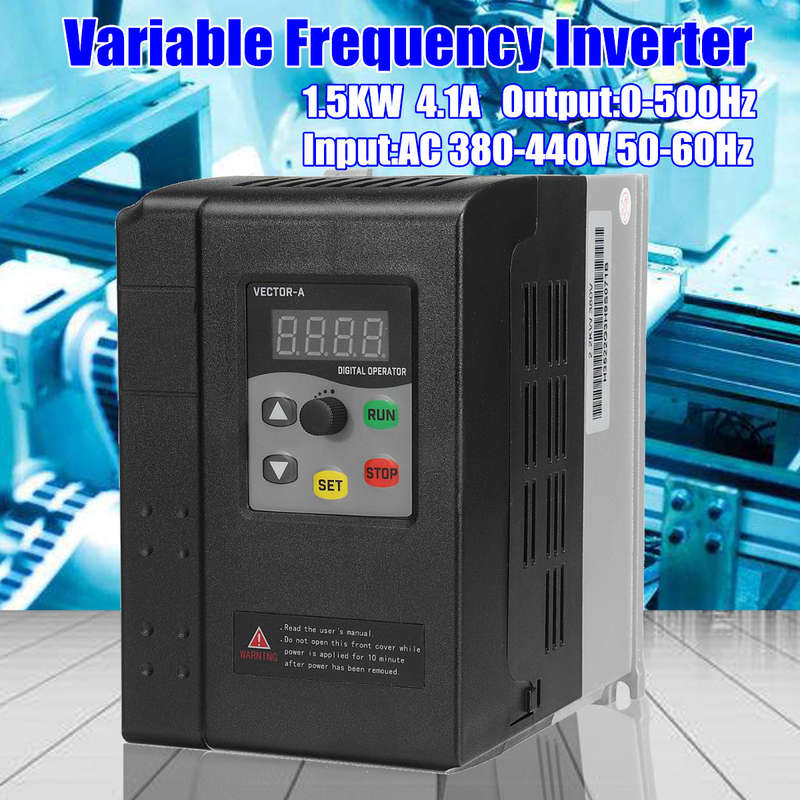

1.5KW 3HP 380V 4.1A 3 To 3 Phase Variable Frequency Inverter Motor Drive VSD VFD

12 were available / new

R2,512.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3467

93.43 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

612363069

Features:

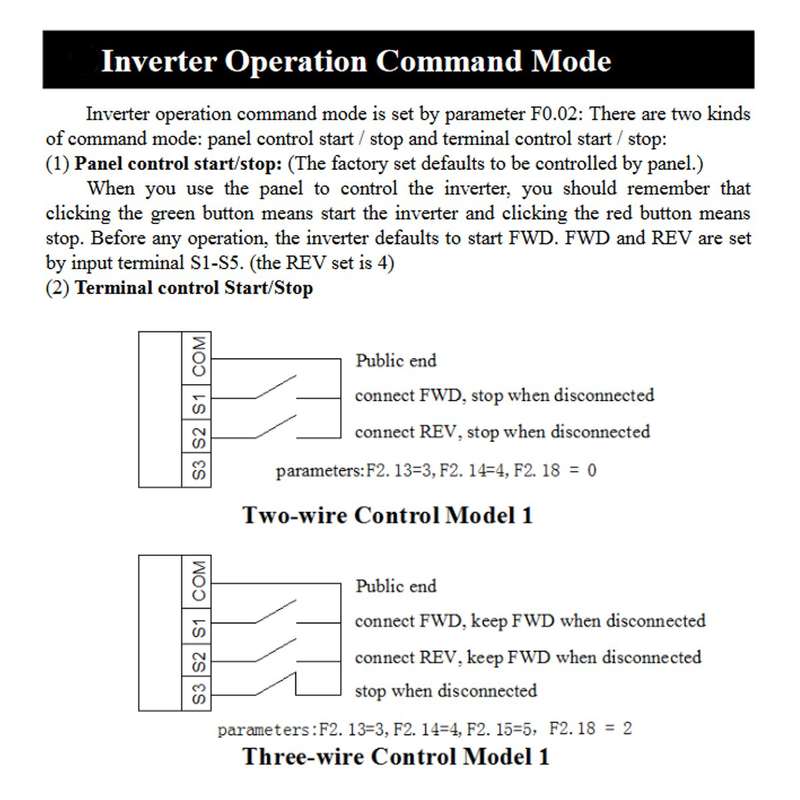

? -Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on. -Built-in PID control function, can easily constitute a simple automated control system. -Other functions: deceleration stop or freewheel stop, DC brake, automatic reset restart, PLC program control and so on. -Provide a variety of fault protection: over-current, overvoltage, undervoltage, over temperature, phase loss, overload and other protection.

Specifications:
? Color: Black Input: 3PH AC 380-440V&pm;10% 50-60Hz Output: 3PH 0-500Hz Power: 1.5KW Current: 4.1A Control Method: Voltage Vector Braking Resistor: 400?? ? Safety Precaution:

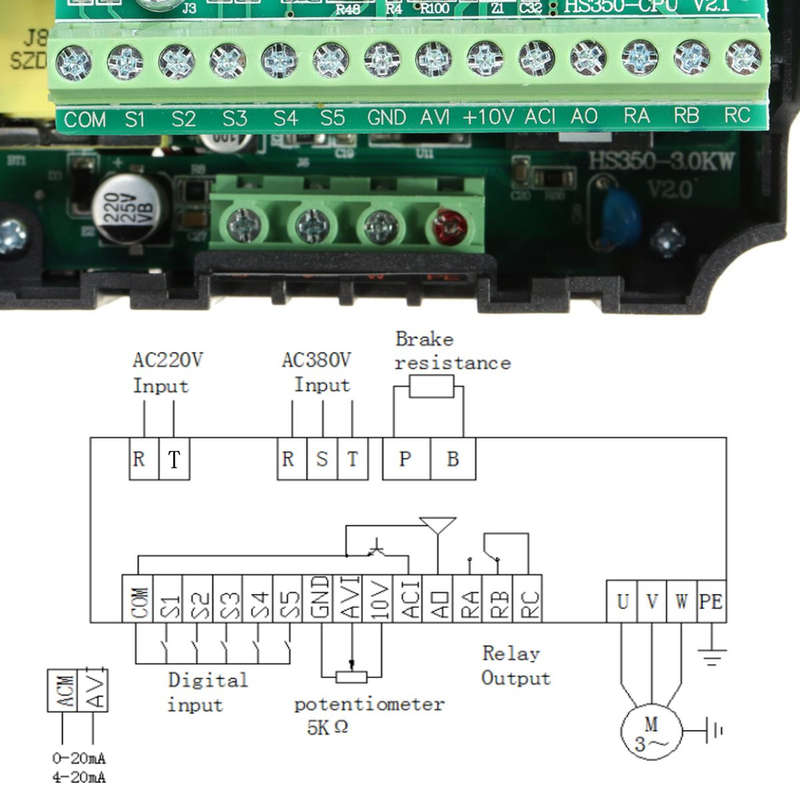

? 1. Before wring, please make sure that the input power is off. 2. The wring work should be operated by the professional electrical engineer. 3. The grounding terminals must be connected with the ground. 4. Having paused circuit wiring emergently, please make sure that the check is effective. 5. Do not connect the output wire of the inverter with the shell, and pay attention that the output wire should not be short-circuited. 6. Please check whether the voltage of the AC main circuit power is consistent with the rated voltage of the inverter. 7. Do not do the voltage withstand test on the inverter. 8. Please connect the brake resistor according to the wiring diagram.
? 9. Do not connect the power to the U, V, W output terminals. 10. Do not connect the contactor with the output circuit. 11. Mare sure to install a protection cover before power-on. When removing the cover, be sure to make the power off. 12. If you want to reset the inverter with the retry function, do not get close to the mechanical equipment, because the inverter will restart suddenly when the alarm stops. 13. Confirm that the operation signal is cut off. Before reset the alarm device,or the inverter may start suddenly. 14. Do not touch the terminals of inverter, which are very dangerous because there is high voltage on them. 15. When power is on, do not change the wiring and terminal. 16. Cut off the main circuit power before doing some check and maintain work. 17. Do not arbitrarily reform the inverter. ? Package Included:

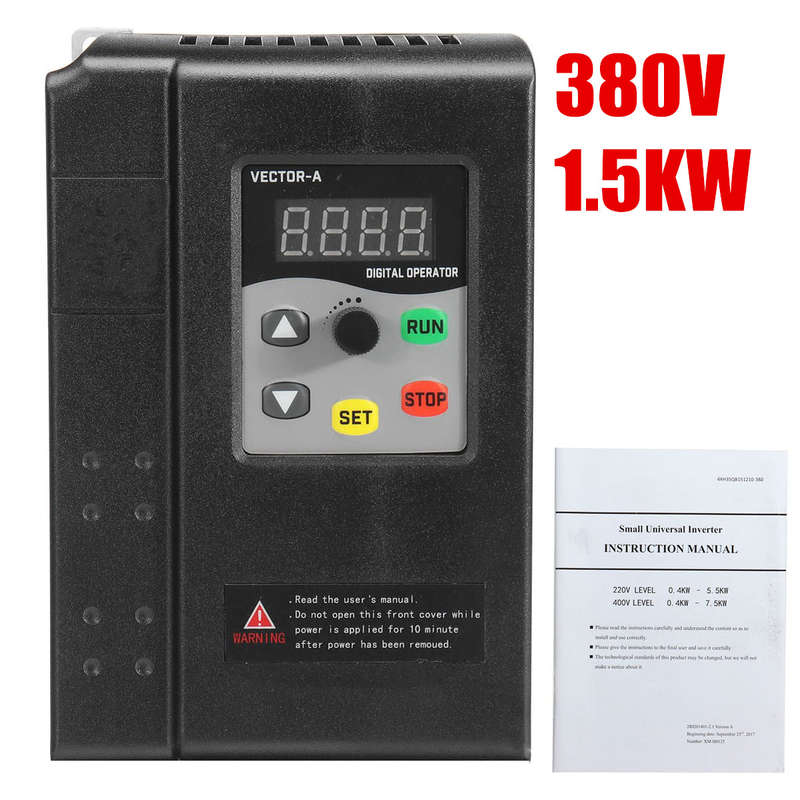

? 1 x Variable Frequency Inverter 1 x Manual

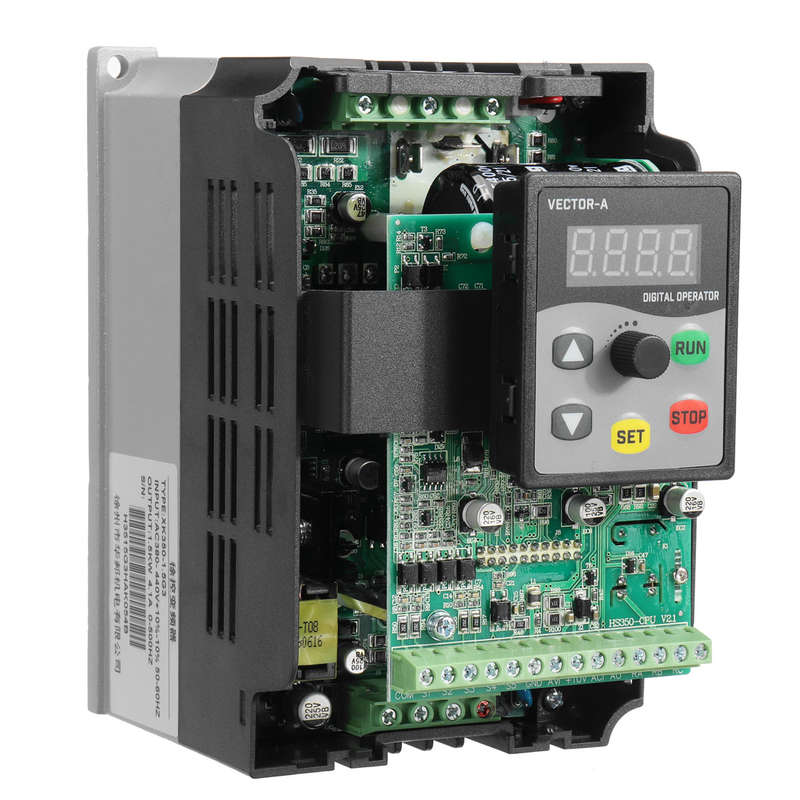

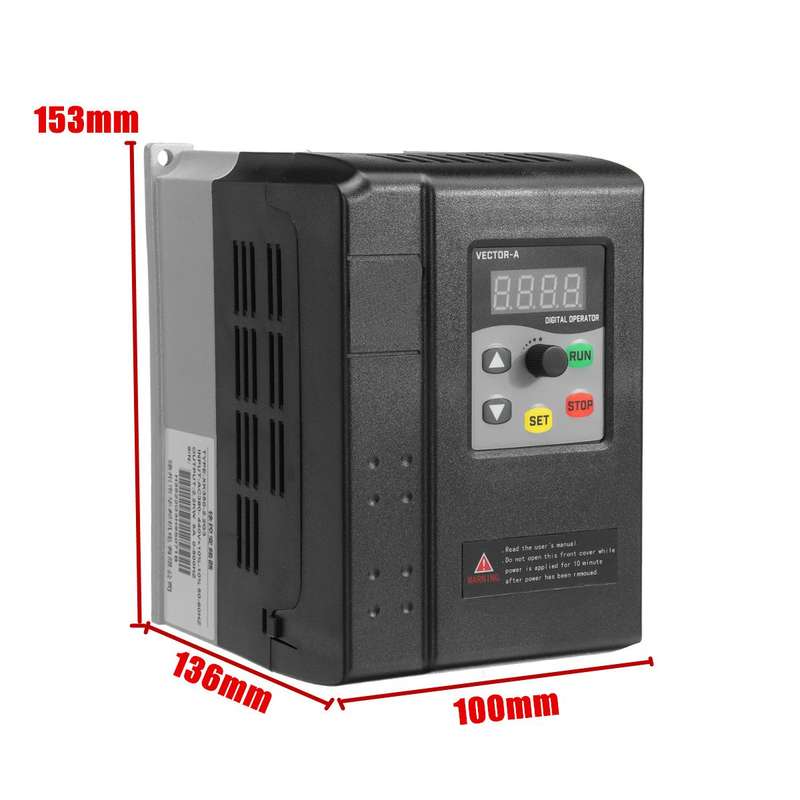

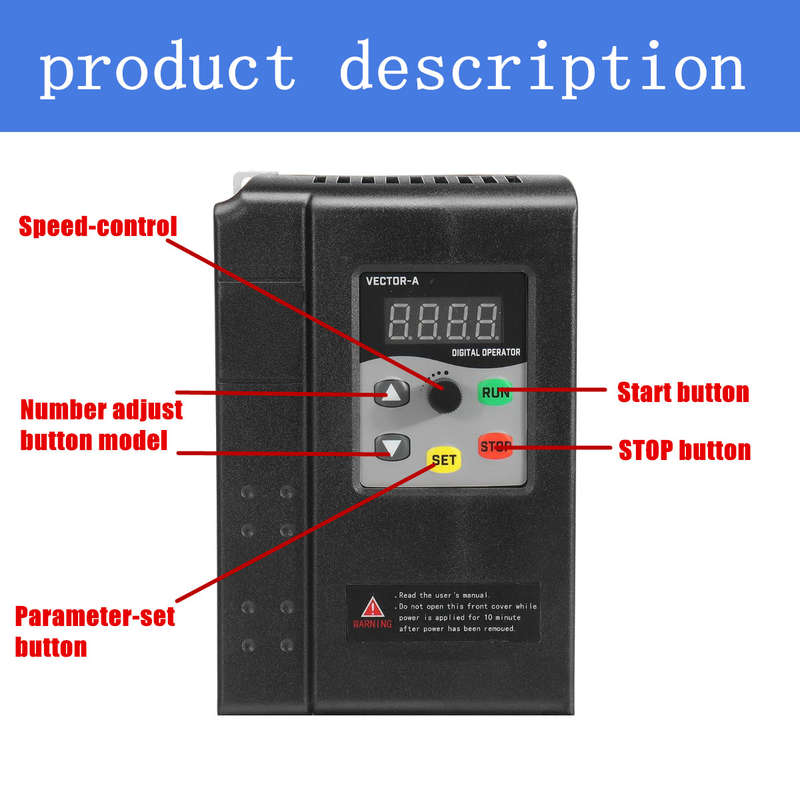

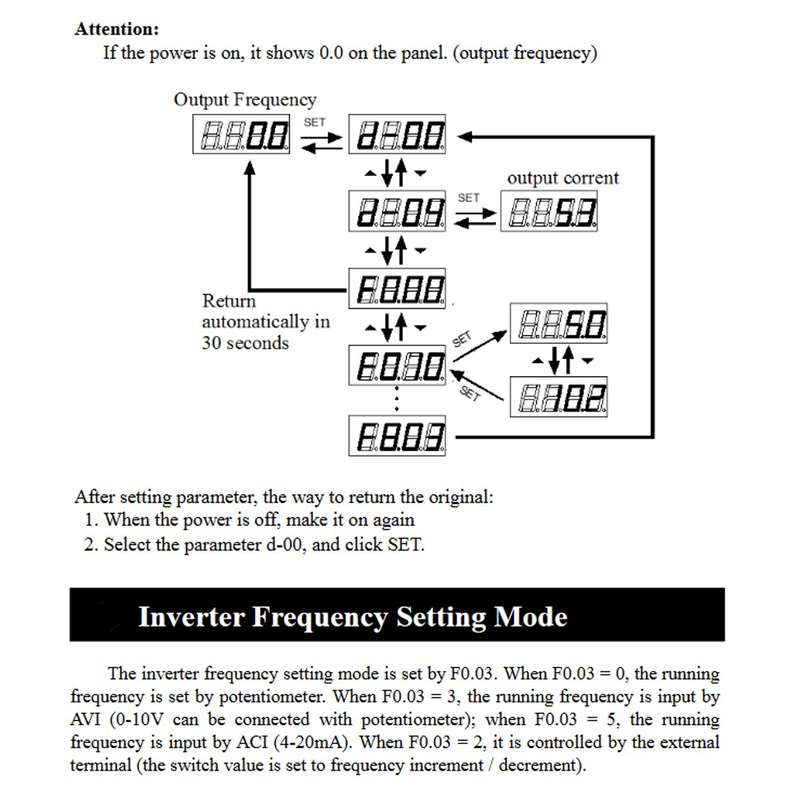

Detail Pictures:
