10.36 inch Wired HD 1 Drag 1 Blind Zone Monitor Universal AHD Reversing Kit Left(Standard)
TBD0605242502A
Monitor:
1. Screen resolution: 720 x 1600 IPS screen
2. Power supply voltage: DC 7V-32V
3. Power: 7W
4. Built-in humming: 2W
5. DVR function: support
6. BSD function: support
7. Video playback format: TS format
8. Video compression format: H.264
9. TF card: support card recording
10. Loop Recording: 1/2 minute
11. Video watermark: switch
12. Time-lapse recording: off/1/12/24 hours
13. Mute recording: toggle
14. Screen sleep: off/10/30/60 seconds
15. Screen brightness: low/medium/high
16. Split mode: 7:3/6:4/5:5
17. Language: Chinese, English, Japanese, Korean
18. Volume: 0/1/2/3/4
19. Key tone: switch
20. Voice control: switch
21. Front view mirror: switch
22. Restore factory defaults: support
23. Format: support
24. Software version view: support
25. Time setting: support
26. Screen adjustment: brightness/saturation/contrast
27. Video playback: support
Camera:
1. Standard: PAL/NTSC
2. Video output: 720P
3. Night vision image: automatic control
4. Waterproof rating: IP68
5. Operating temperature: -22 - 176 degrees Fahrenheit
6. Chip: 1036DSL
Features:
1. 10.36-inch HD IPS screen, which not only displays an area larger than that of traditional mirrors, but also provides better color reproduction and a wide viewing angle, ensuring a clear and detailed visual experience, whether in bright light or driving at night
2. Standard dual-channel camera: the system has two built-in cameras for blind spot and rear view respectively, providing drivers with good road information
3. Better performance at night or in bad weather such as rain or snow, high image clarity, effectively reducing the safety risks caused by obstructed vision
4. Built-in driving video recorder (DVR) function, automatic loop recording HD video
5. Supports BSD blind spot monitoring technology, reminding drivers of the vehicle's blind spots in the side and rear through warnings, reducing the risk of parallel collisions
6. Efficient loop recording, automatically overwriting earlier videos without manual deletion, ensuring that the storage space is always used for the latest driving records, and realizing continuous and uninterrupted video recording
7. Stability and anti-interference of wired transmission: for users who choose wired connection, the system also performs well, providing stable and efficient signal transmission, effectively resisting electromagnetic interference

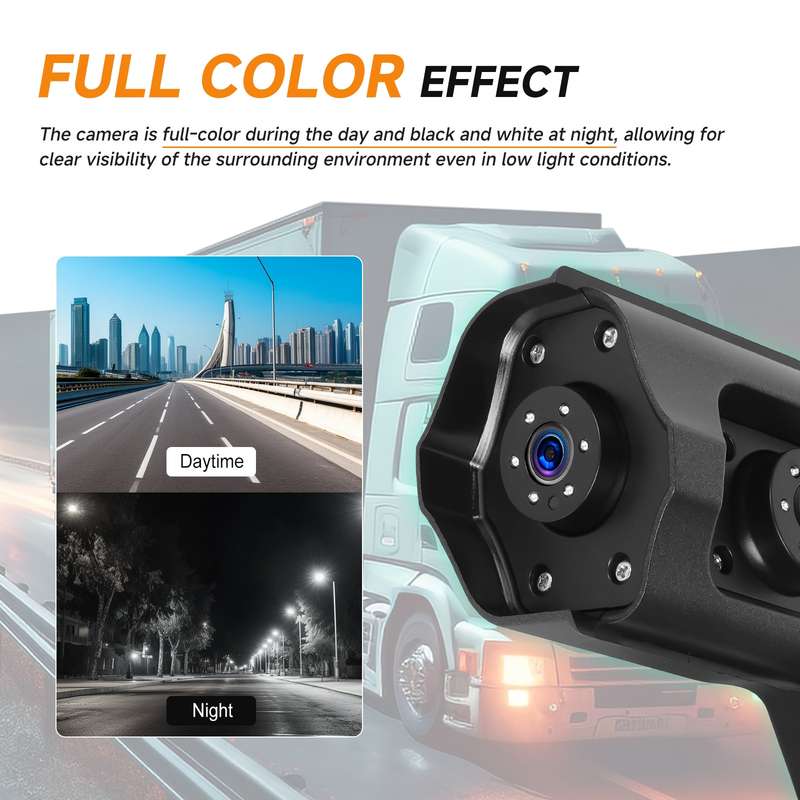

8. All-weather imaging capability: the camera is equipped with automatic light sensitivity adjustment, displaying full-color images during the day and switching to black and white mode at night to enhance the imaging effect in low-light environments, ensuring that the surrounding environment can be clearly observed in low light
9. IP68 top waterproof rating: the camera components reach IP68 waterproof and dustproof rating, whether it is torrential rain or sandstorms, can ensure that the internal components are safe and durable
10. Ultra wide-angle lens: the camera has a wide viewing angle, which reduces the blind spot, improves the driving field of view and ensures driving safety
11. Intelligent touch control: support touch screen control, finger touch to complete the function settings, improve the convenience of operation, make the driving process more smooth and unhindered
Packing List:
- Monitor x 1
- Camera x 1
- Video cable x 1
- Mounting accessories x 1 set
- 6m extension cable x 2
- Power cord x 1
- Instruction manual x 1
