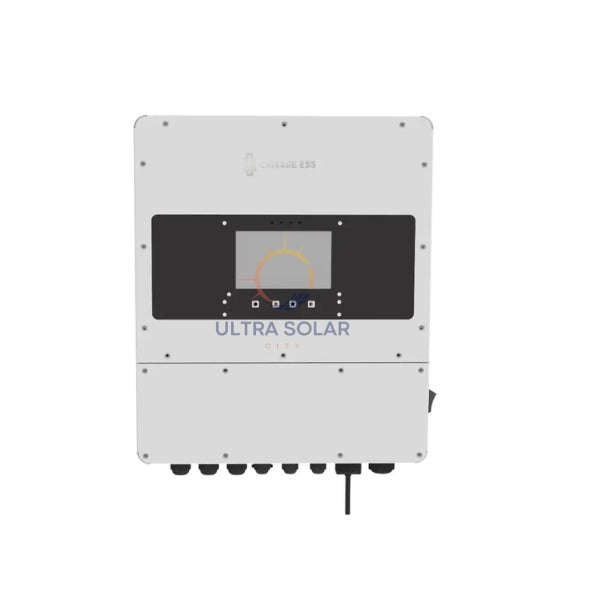

Chisage 10kW Single Phase Inverter Reliable & Efficient Energy Solution
The Chisage 10kW Inverter is a high-performance and versatile energy solution designed for both residential and commercial applications. With advanced features and a user-friendly interface, it ensures stable power conversion, seamless grid integration, and optimized energy management.
Key Features:
High Power Output (10kW Rated AC Output Power) Delivers reliable and efficient power for various energy demands.
Single Phase Unbalanced Output Supports 100% unbalanced loads, with each phase capable of delivering up to 5kW, ensuring flexibility for different power needs.
On/Off-Grid Mode Switching with EPS Functionality Seamlessly switches between grid-tied and off-grid operation, providing backup power through Emergency Power Supply (EPS) during outages.
ARC Fault Detection (Optional) Enhances safety by detecting and preventing electrical arc faults, reducing fire risks.
Diesel Generator Compatibility Supports energy storage from diesel generators, with an independent AC input port for easy connection and operation.
Intelligent Battery Management Allows battery charging and discharging according to time settings, optimizing energy storage and cost efficiency.
Parallel Operation for Large-Scale Systems Supports parallel connection of up to 20 inverters for expanded off-grid operation and higher power requirements.
Hybrid Inverter Capability Works with different power inverters in parallel, providing greater flexibility and scalability.
User-Friendly 7-Inch Touch LCD Features a colorful and intuitive touchscreen display for easy monitoring and control.
IP65 Protection Rating Built for durability with waterproof and dustproof protection, making it suitable for indoor and outdoor installations.
| Model | | | | Mars-10G2-LE | | |
| Battery Input |
| Battery Type | Lead-acid or Li-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charge Current (A) | | | | 220 | | |
| Max. Discharge Current (A) | | | | 220 | | |
| Charging Curve | 3 Stages/Equalization |
| External Temperature Sensor | Optional |
| Charging Strategy for Li-Ion Battery | Self-Adaption to BMS |
| PV String Input |
| Max. DC Input Power (W) | | | | 15,000 | | |
| PV Input Voltage (V) | 650(160~800) |
| MPPT Range (V) | 200~700 |
| Full Load DC Voltage Range (V) | 260~650 |
| Start-up Voltage (V) | 160 |
| PV Input Current (A) | | | | 26+17 | | |
| Max. PV Isc (A) | | | | 34+20 | | |
| No. of MPPT Trackers | 2 |
| No. of Strings per MPPT Trackers | | | | 2+1 | | |
| AC Output |
| Rated AC Output and UPS Power (W) | | | | 10,000 | | |
| Max. AC Output Power (W) | | | | 12,000 | | |
| Peak Power(off grid) | 2 times of rated power, 10s | 1.8 times of rated power, 10s |
| AC Output Rated Current (A) | | | | 14.5 | | |
| Max. AC Current (A) | | | | 21.7 | | |
| Max. Continuous AC Passthrough (A) | | | | 26 | | |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage (V) | 50/60Hz, 380/400Vac(Triple phase) |
| Grid Type | Three phase |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) |
| Efciency |
| Max. Efciency | 97.90% |
| Euro Efciency | 97.00% |
| MPPT Efciency | 99.90% |
| Protection |
| Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation
Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection |
| PV ARC Fault Detection | Optional |
| Output Over Voltage Protection | DC Type II/AC Type III |
| Certications and Standards |
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11 |
| Safety Regulation | IEC/EN62109-1, IEC/EN62109-2 |
| EMC | IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 |
| General Data |
| Operating Temperature Range () | -45~60, >45 Derating |
| Cooling | Smart Cooling |
| Noise (dB) | 45 |
| Communication with BMS | CAN, RS485 |
| Weight (kg) | | | | 44 | | |
| Dimensions (mm) | 550W ×730H ×290D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
