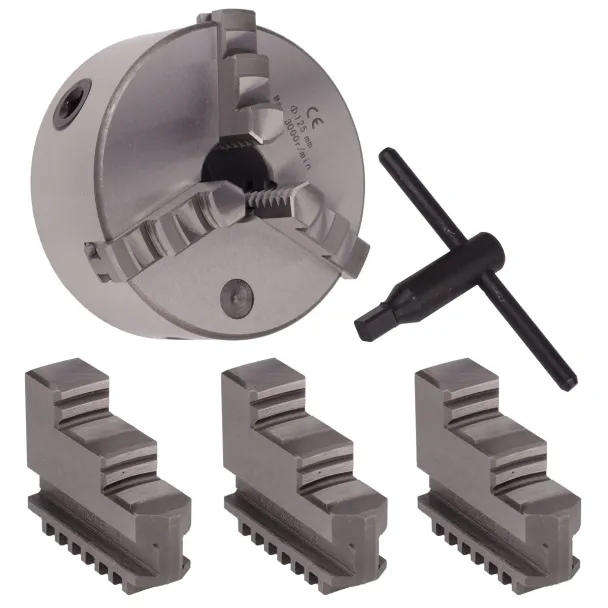

125mm 3-Jaw Self-Centering Chuck
This high-precision 3-jaw self-centering chuck is commonly fitted to engineering lathe machines. It is designed for accuracy and ease of use, featuring reverse jaws and a chuck key for quick adjustments. Ideal for securely clamping cylindrical workpieces during turning operations.
Features
High precision engineering accessory
Self-centering 3-jaw design for uniform grip
Includes reverse jaws for added versatility
Comes with chuck key for quick and easy adjustments
Suitable for a wide range of lathe machines
Specifications
Chuck Diameter (D): 125 mm
Registration Recess Diameter (D1): 95 mm
Bolt Circle Diameter (D2): 108 mm
Center Hold (D3): 30 mm
Registration Recess Depth (h): 3 mm
Max Height (H): 84 mm
Body Thickness (H1): 58 mm
Number of Bolts: 3
Size of Bolts: M8
Maximum RPM: 3,000
Handle Length: 160 mm
