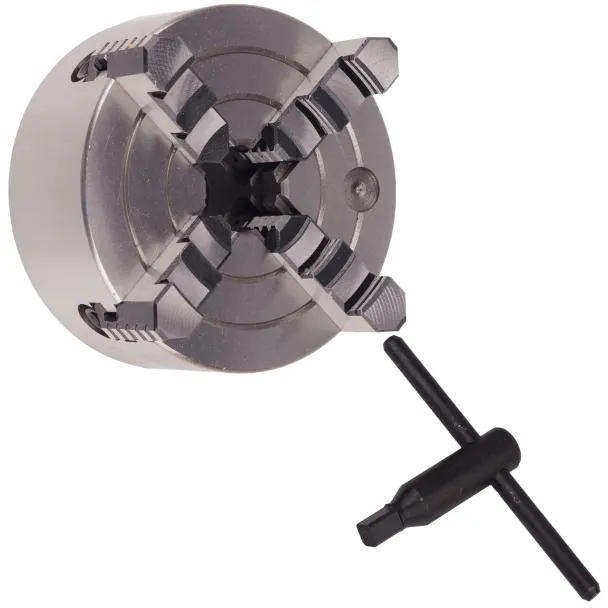

125mm 4-Jaw Independent Chuck
This high-precision 4-jaw independent chuck is commonly used on engineering lathe machines. Each jaw can be adjusted individually, allowing for accurate clamping of irregular, square, or off-center workpieces. Its a versatile tool essential for precision machining and advanced turning applications.
Features
High-precision lathe accessory
Independently adjustable 4-jaw design
Ideal for clamping non-cylindrical or off-center parts
Includes chuck key for easy adjustments
Suitable for various engineering lathe machines
Specifications
Chuck Diameter (D): 125 mm
Registration Recess Diameter (D1): 95 mm
Bolt Circle Diameter (D2): 108 mm
Center Hold (D3): 30 mm
Registration Recess Depth (h): 4.5 mm
Max Height (H): 78 mm
Body Thickness (H1): 56 mm
Number of Bolts: 4
Size of Bolts: 6.5 mm (M8)
Handle Length: 125 mm
