12V to MicroUSB Converter 5V 3A | DC-DC suitable for Gates

12V-5V microUSB converter

This unit is recommended as a more convenient alternative to Power our 'Smart Gate Garage Door Opener Switch' (the opener includes an adaptor which requires 230VAC and therefore a qualified electrician). Adding this DC-DC converter lets you DIY the installation as you need only connect to the 12V DC available on the Gate control board. Note: Garage doors normally need 24V DC check your control board model to see if it has 12 or 24V DC outputs.

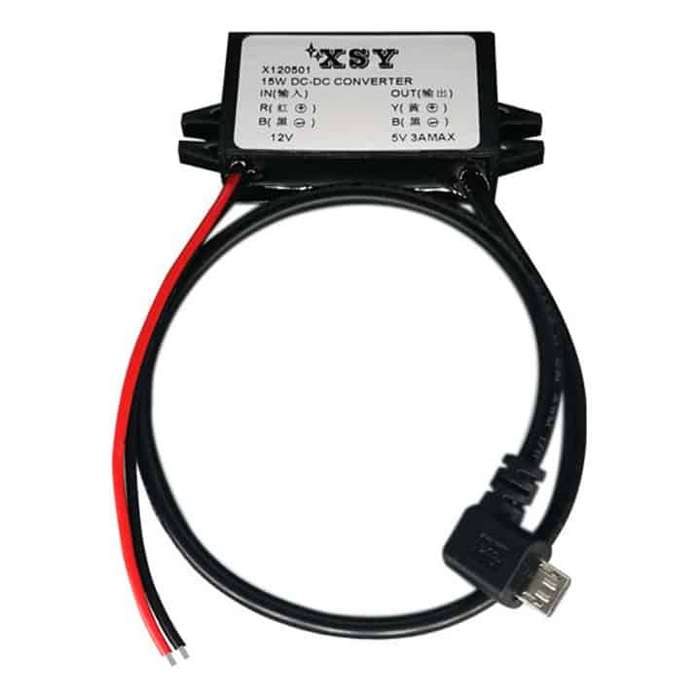

12VDC to 5VDC via Micro-USB male connector with an enclosed splashproof housing

Specifications

• Input Voltage: 12V DC (via red = positive, black = negative)
• Output Voltage: 5V via lead with USB female
• Output Current: 3A
• Output Power: 15W
• Efficiency  rating: 97%
• Operating temperature: -20°C to +80°C
• Dimensions: 63 x 27 x 14 (L x W x H in mm)

Typical Uses (but not limited to)

charging smartphones, tablets, and other devices from a 12V power source like a car battery.

When using our Smart Gate Garage Door Opener Switch for:

1. Gates: normally have 12VDC - this unit you are viewing now.

2. Garage Doors: normally have 24V DC

3. Note new Centurion D5 EVO Smart is 24V = 2 x 12V batteries

What's in the box?

1 x 12V-5V microUSB converter
