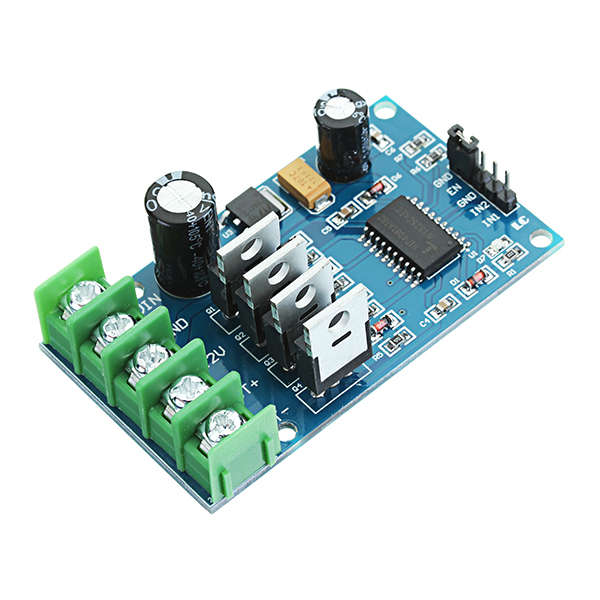

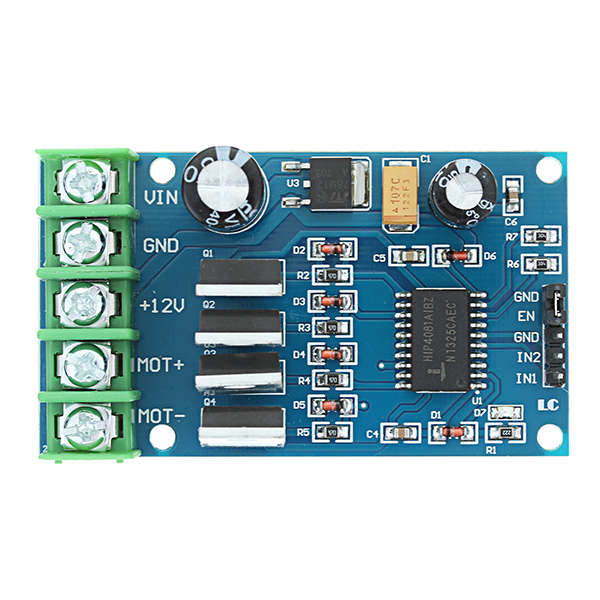

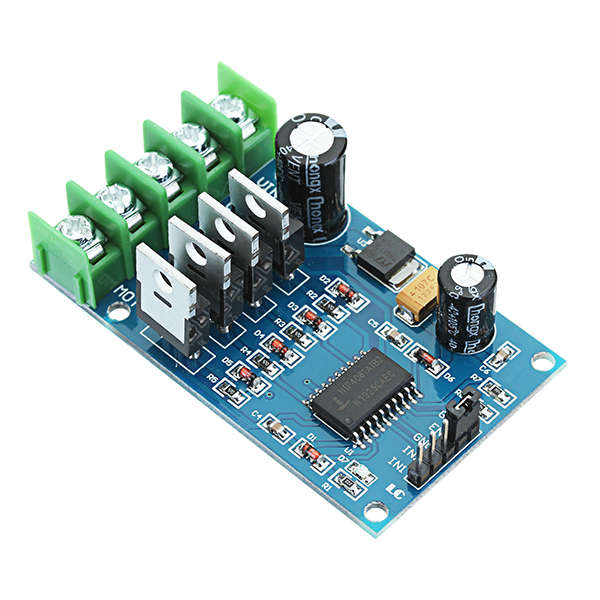

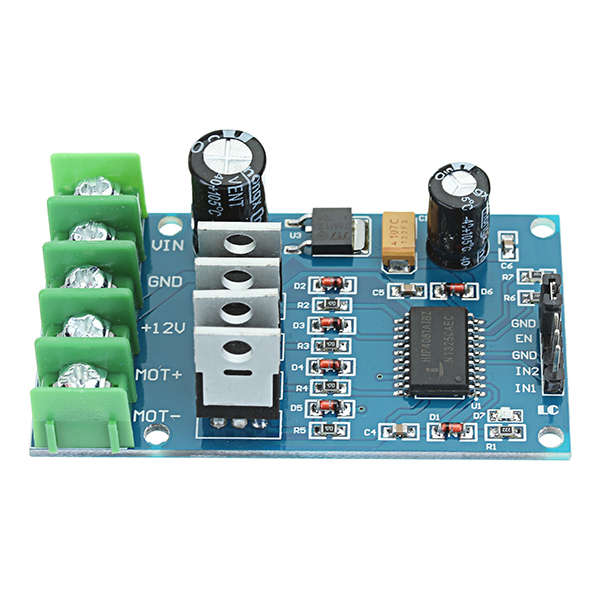

170W High Power H-Bridge Drive Board NMOS With Brakes Forward And Reverse Full-Duty

20 available / new

R588.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3467

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641102448

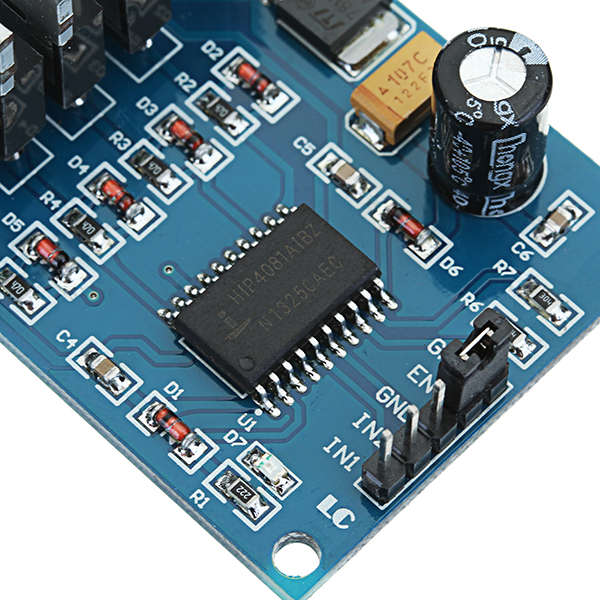

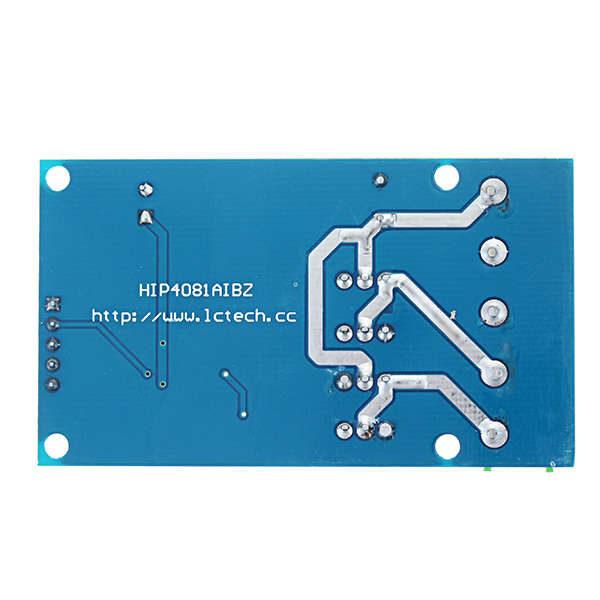

Product parameters: 1. Using full-bridge driver chip + low-pass internal resistance 55V110A NMOS, can achieve positive and negative motor 2. Two PWM input, duty cycle can be adjusted within 0-100%, with instant braking capability 3. Working voltage 10V-40V, power 170W the following 4. Control is extremely simple and convenient, only three input lines to control the motor 5. Chip built-in dead zone hardware control, better able to adapt to frequent commutation to reduce the tube's own loss 6. The back of the module is tin-plated, allowing the wires to flow through larger currents 7. Support 5V, 3.3V logic input. Suitable for all types of single-chip IO port direct control, you can also control the motor input through the analog input 8. Board size: 38.8 * 67.5mm

Instructions for use: IN1 = 1, IN2 = 0; motor forward; IN1 = 0, IN2 = 1; motor reversal; IN1 = 0, IN2 = 0; Motor brake.

Package included:

1 x170W High Power H-Bridge Drive Board
