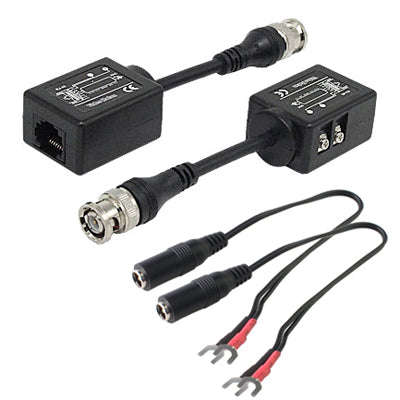

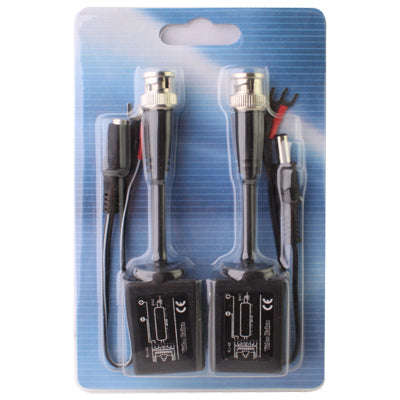

2 PCS Passive Video Balun CCTV Network UTP BNC(Black)

Featrues:

1) Using UTP cable to transmit video audio signal instead of co-axial.

2) Longer transmission distance, >600meter.

3) Lower budget, the price of UTP is much less than co-axial cable.

4) Easy Installation, using the standard UTP cable system.

5) Video Balun support all video device, such as camera, monitor, DVR card, recorder, etc.

6) Passive Video Balun is compatible with local Area Network system, using pin 4,5 for video signal and Pin 7,8 for power transmission.

Specification:

1) Maximum Output: 1.1Vp-p

2) Loss Ratio: >2db

3) Rejection Ratio: <15db

4) Interference: >40db

5) Transmission Distance Color: <600meter

6) Transmission Distance B/W: >750meter

7) BNC Resistance: 75ohm

8) UTP Resistance: 100ohm

9) Temperature: 0~55°C

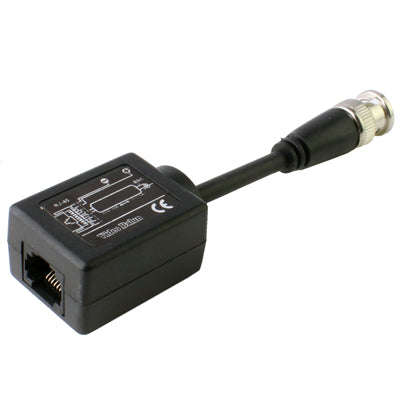

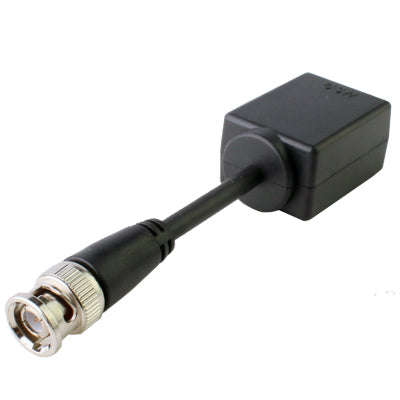

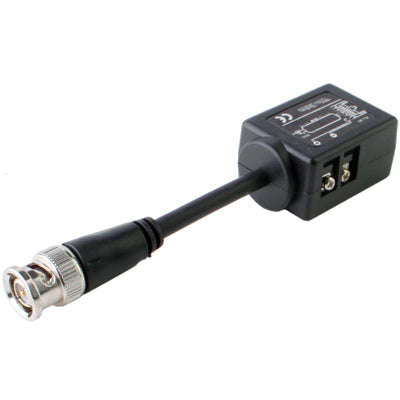

10) Size of each CCTV Network Video Balun:11.8cm x 2.7cm x 2cm . Approx.

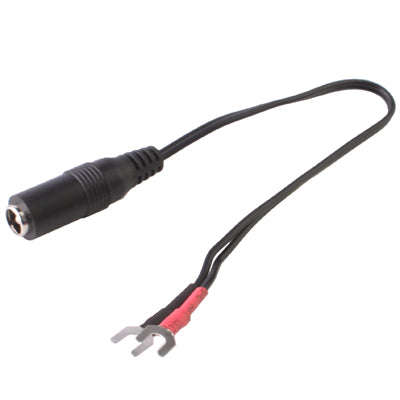

11) Length of each power convert cable: 16cm long. Approx.
