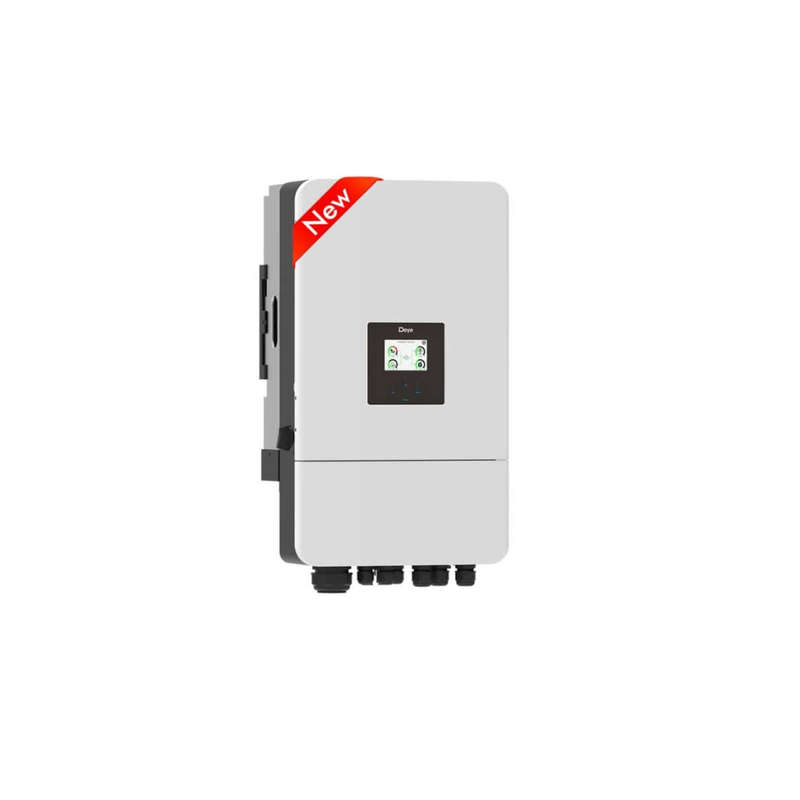

20KW DEYE Hybrid Inverter Three Phase LV (Low Voltage) 48v

Title:
20KW DEYE Hybrid Inverter Three Phase LV (Low Voltage) 48v

ONLINE DEAL ONLY. CAN BE ORDERED FOR IN STORE COLLECTION

Description:

The Deye 20kW Three-Phase Hybrid Inverter (Low Voltage 48V) is a robust energy solution designed for large-scale residential and commercial systems. With a transformer isolation design and ultra-high 350A charge/discharge capability, this inverter offers unmatched flexibility and performance in demanding solar and backup installations.

Key Features

Unbalanced Three-Phase Output

-Delivers up to 100% unbalanced load per phase

-Supports maximum output of 50% rated power per phase

Flexible System Integration

-AC-coupling enables retrofitting into existing solar systems

-Parallel support for up to 10 units in both on-grid and off-grid configurations

Battery Compatibility and Efficiency

-Designed for 48V low-voltage batteries with transformer isolation

-Supports multiple battery connections in parallel

-Maximum charging/discharging current: 350A

Advanced Control & Generator Support

-Configurable charging and discharging time periods (up to 6)

-Compatible with diesel generator integration for hybrid backup systems

Product Specifications

-Rated Power: 20kW

-Phase: Three-phase

-Battery Voltage: 48V (Low Voltage)

-Charge/Discharge Current: Max. 350A

-Parallel Capability: Up to 10 units

-Dimensions: 750 × 456 × 268.5 mm

-Weight: 50.6 kg

-Application: On-grid / Off-grid / Diesel generator backup

-Mounting: Wall-mount recommended

-Use: Commercial and large-scale residential installations

Warranty & Installation

-Backed by a 10-year limited warranty (terms apply)

-Installation must be performed by a certified electrician

-A valid Certificate of Compliance (COC) is required

-Installation must comply with SANS 10142 regulations
