Technical Parameter:
1. Working voltage: DC12-24V 2. Working frequency: 433.92MHZ 3. Quiescent current: 8.5mA 4. Load power: 500W 5. Receiving sensitivity: -105dBM 6. Working mode: Jog, self-locking, interlocking, delay, independent, 1 way, 1 way, self-locking 7. Output signal: can output 2 switching signals or 2 AC220V voltage signals 8. Coding method: learning code 9. Modulation method: ASK 10. Working temperature: -10ﾣC~+70ﾣC
Instructions:
Jog mode: Press the remote control relay to pull in, release the remote control relay to disconnect. Jog learning method: press the learning button once, the LED indicator flashes quickly 3 times and then goes out, enter the learning state, press any button on the remote control, the LED indicator flashes quickly 3 times and then goes out, then press the remote control button 2. The LED indicator flashes 3 times quickly and then stays on, indicating that the code is successfully matched. (PS. Because it is 2 channels, you need to learn 2 buttons)
Self-locking mode: Press the remote control relay to close, and press the remote control again to disconnect the relay. Self-locking learning method: Press the pairing button twice in a row, the LED indicator flashes quickly 3 times and then goes out, enter the learning state, press any button on the remote control, the LED indicator flashes quickly 3 times and then goes out, then press the remote control Button 2, the LED indicator flashes quickly 3 times and then stays on, indicating successful code matching

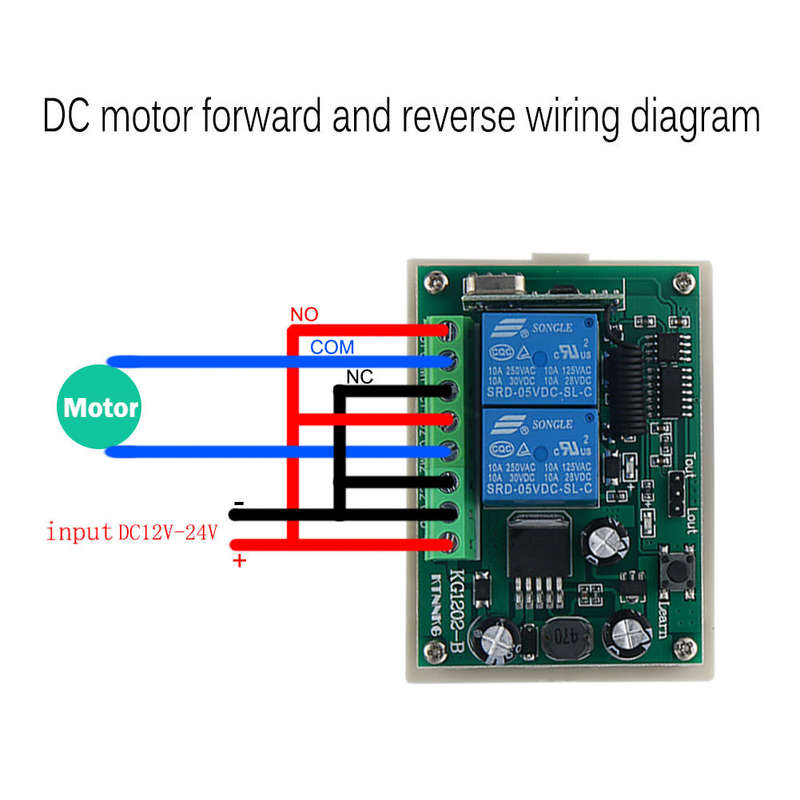

Interlock mode: Press the remote control A button, the relay is closed, and press the remote control B button to disconnect. Interlock learning method: Press the pairing button 3 times in a row, the LED indicator flashes quickly 3 times and then goes out, enter the learning state, press any button on the remote control, the LED indicator flashes quickly 3 times and then goes out, then press the remote control Button 2, the LED indicator flashes quickly 3 times and then stays on, indicating successful code matching

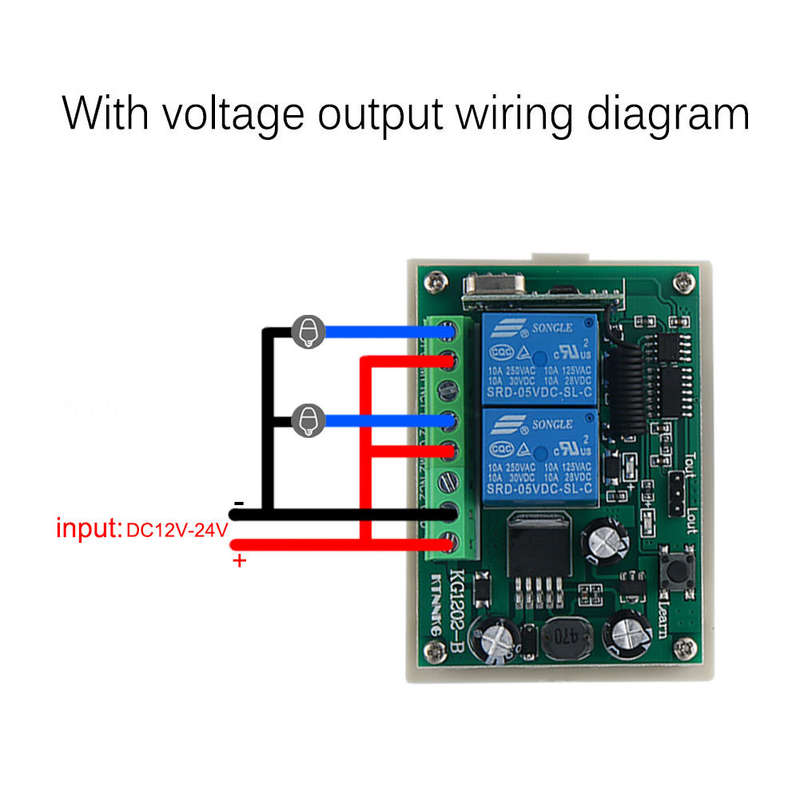

1-way jog, 1-way self-locking: Press the pairing button 4 times in a row, the LED indicator flashes 3 times and then goes out, enter the learning state, press any button on the remote control, the LED indicator flashes 3 times and then goes out. Then press the remote control button 2, the LED indicator flashes quickly 3 times and then stays on, indicating that the code is successfully matched
Code clearing function: Press the code button 8 times in a row, the LED indicator flashes quickly 4 times and then stays on, the code clearing is completed, and all the remote control key codes learned before are cleared.
Precautions:
1. Do not operate with power, turn off the power to operate, and power on after the test is confirmed to be correct. 2. When the remote control voltage is low, please replace the battery in time (when the remote control battery voltage is low, the remote control distance will generally become shorter). 3. When using wireless electronic products, pay attention to avoiding metal masks, large electronic devices, electromagnetic fields, etc., which have strong interference sources, and avoid the short distance between the remote control and the reception or the failure of normal operation. 4. Do not use this electronic product abnormally. Abnormal use will reduce the performance and life of the product. In severe cases, it will damage the product and bring hidden dangers to your safety.
Package includes:
2 x Receiver 4 xtransmitter
