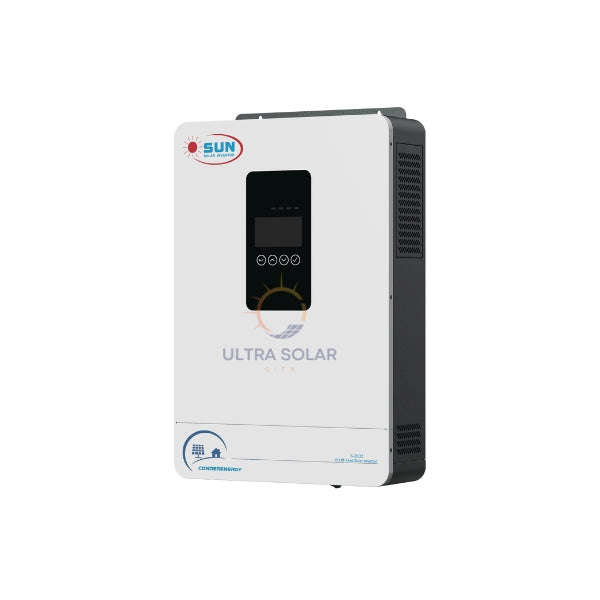

3.2KVA 24V Hybrid Pure Sine Wave Inverter- S-2832

SUN SOLAR 3.2KVA 24V HYBRID PURE SINE WAVE INVERTER-  S-2832

Features:
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
Wide PV input voltage range
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to
supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support RS485,CAN monitoring function
Dual outputs for smart load management
Can communicate with lithium batteries (CAN port)

Inverter Mode:
Surge Power (kVA) 5.7
Rated Power(Main):3200VA/3200W
Voltage (VAC) 208 / 220 / 230 / 240
Wave Form : Pure Sine Wave
DC Input: 24VDC, 135A
AC Output: 230VAC, 50/60Hz, 15.7A
Output Power Factor: 1.0
AC Charger Mode:
AC Input: 230VAC, 50/60Hz, 17.7A,10
DC Output: 24VDC,60A

Solar Charger Mode:
Rated MPPT Charger Current: 100A
MPPT Voltage Range(Typ): 40-350VDC
Max Solar Voltage(VOC): 500VDC
Max PV input Current / Input Power 18A / 5000W
Max.Charge Current: 100A

Battery Mode
Rated Voltage (VDC): 24
Floating Charge Voltage: (VDC) 27
Overcharge Protection (VDC): 30.5
Battery Type Lithium and Lead-acid

Interface

HMI LCD
Interface RS485 / RS232 / USB / Dry Contact
Monitoring WiFi (Optional)

General Data
Ingress Protection IP21
Operating Temperature -10 °C~ 50 °C
Relative Humidity 5% ~ 95% (Non-condensing)
Storage Temperature -15 °C~ 60°C
Net Weight (kg) 64
Dimensions (W*H*D) 420*284*94mm
Max. Operating Altitude 4000m (Derating above 1000m)

What's in the box
1x Inverter
1x User Manual
