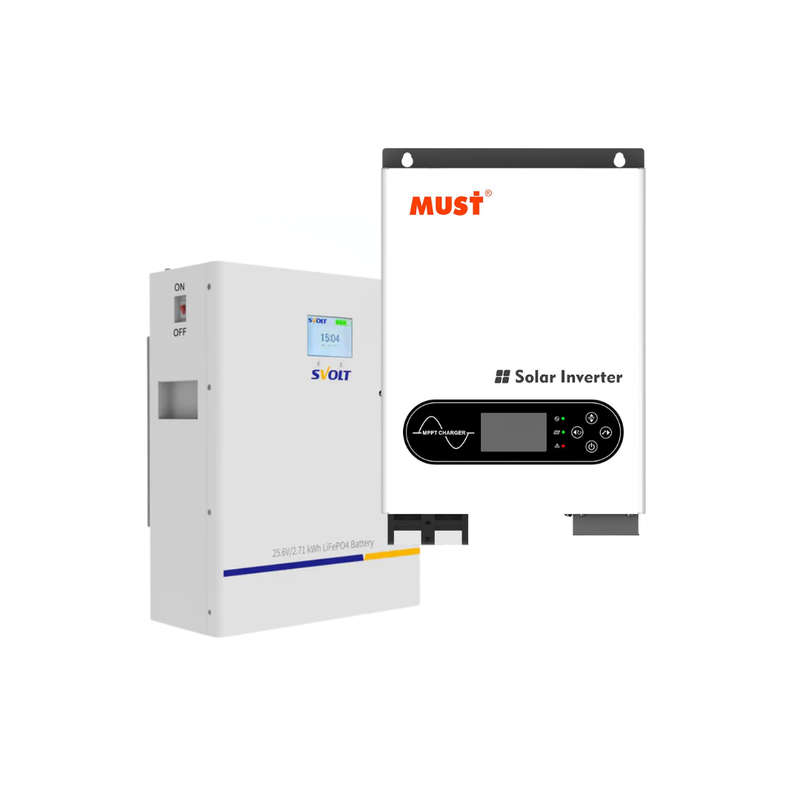

Must 3.6kW 100A 24V MPPT Solar Hybrid Inverter PV1800 ECO
Reliable Off-Grid & Hybrid Power Solution
The Must PV1800 ECO 3.6kW Hybrid Inverter is a versatile, multi-function power system that integrates an inverter, MPPT solar charge controller, and battery charger into a compact unit. Designed for off-grid and hybrid applications, it ensures uninterrupted power supply by intelligently managing solar energy, AC utility, and battery storage.
With a high PV input voltage capacity (up to 400V/450V/500V), this inverter maximizes solar energy utilization and can even operate without a battery, making it a flexible and cost-effective energy solution.
Key Features:
- Pure Sine Wave Output: Delivers stable, high-quality power for sensitive electronics.
- Smart LCD Display: Allows easy configuration of working modes, charge current, and voltage settings.
- Built-in MPPT Solar Charge Controller: Maximizes solar power conversion efficiency.
- Wide PV Input Voltage Range: Supports higher solar voltage for increased flexibility.
- Battery-Free Operation: Can supply power to connected loads directly from solar panels.
- Smart Load Management: Dual output system for prioritizing critical loads.
- Advanced Protection: Overload, short circuit, and deep discharge protection.
- Cold Start Function: Allows startup without grid power.
- Remote Monitoring: Supports RS485 and CAN communication for lithium battery integration.
Technical Specifications:
Inverter Mode:
- Rated Power (Main + Second Load): 3600VA / 3600W
- DC Input Voltage: 24VDC, 135A
- AC Output Voltage: 230VAC, 50/60Hz, 15.7A
- Power Factor: 1.0
AC Charger Mode:
- AC Input Voltage: 230VAC, 50/60Hz, 17.7A
- DC Output Voltage: 24VDC, 60A
Solar Charger Mode:
- Maximum MPPT Charge Current: 100A
- MPPT Voltage Range (Typical): 30-320VDC
- Maximum PV Input Voltage (VOC): 400VDC
- Maximum PV Input Current: 18A
- Maximum MPPT Power: 4000W
- Maximum Charge Current: 100A
What's in the Box:
- 1 × Must 3.6kW 24V MPPT Hybrid Inverter
- 1 × User Manual
This high-efficiency hybrid inverter is an ideal choice for those looking for a reliable, scalable, and smart solar power solution.
High-Performance A-Grade Lithium Battery for Solar & Backup Power
The SVOLT 2.71kWh 24V 106Ah Lithium Battery is a high-capacity, energy-efficient solution for solar power storage, UPS systems, and backup energy applications. Manufactured by SVOLT, a global leader in lithium battery technology and part of the Haval Group, this battery utilizes A-Grade lithium iron phosphate (LiFePO4) cells, ensuring exceptional reliability, longevity, and performance.
With a cycle life exceeding 6000 cycles, this wall-mounted battery is designed for residential, commercial, and industrial applications, including solar energy storage, renewable energy integration, telecommunications, medical equipment, and electric vehicles.
Technical Specifications:
Battery Specifications:
- Nominal Voltage: 25.6V
- Nominal Capacity: 106Ah
- Energy Storage: 2.71kWh
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
- Installation Type: Wall-Mounted
- Energy Density: High-performance A-Grade cells
- Case Material: SPCC
- BMS Built-in: No (Requires External BMS)
Charge & Discharge Specifications:
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 22.4V ± 0.20V
- Max Discharge Voltage: 21.6V ± 0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 150A
- Cycle Life (0.2C, 25°C @ 80% DoD): >6000 Cycles
Physical Specifications:
- Dimensions: 470mm × 350mm × 155mm
- Weight: 28kg
- Terminal Type: Fast Plug-In & Plug-Out
What's in the Box?
1 × SVOLT 24V 106Ah 2.71kWh A-Grade Lithium Battery
1 × Red (Positive) Battery Cable
1 × Black (Negative) Battery Cable
1 × User Manual
Warranty:
- 1-Year Manufacturer Warranty - INVERTER
- 5-Year Manufacturer Warranty - BATTERY
Warranty & Installation Requirements:
- Must be installed by a qualified electrical wireman or master electrician.
- Valid Certificate of Compliance (COC) required upon installation.
- Installation must adhere to SANS 10142 standards.
- Warranty claims must include installation photos, valid COC, and proof of qualified installation.
