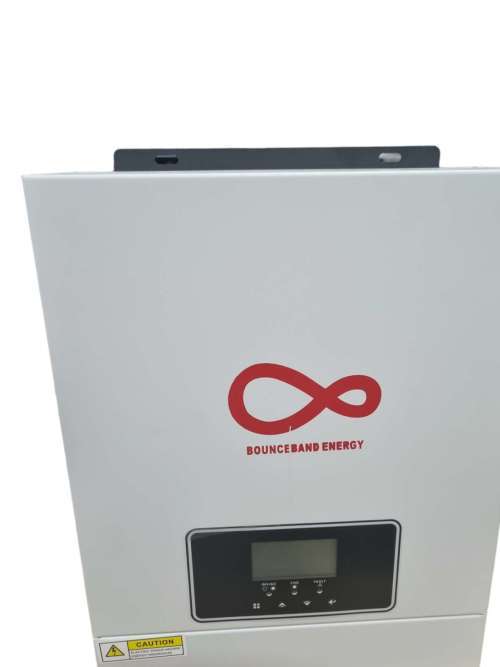

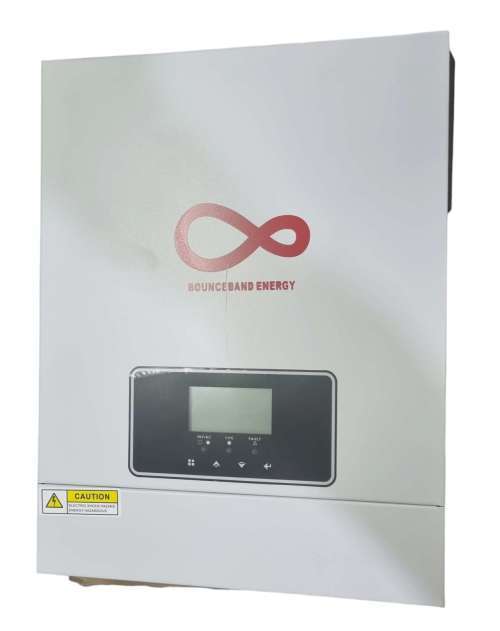

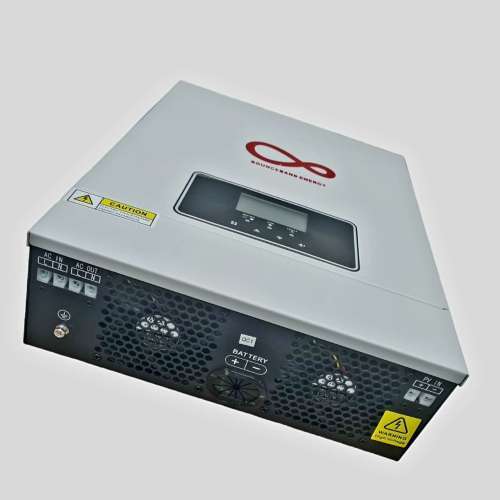

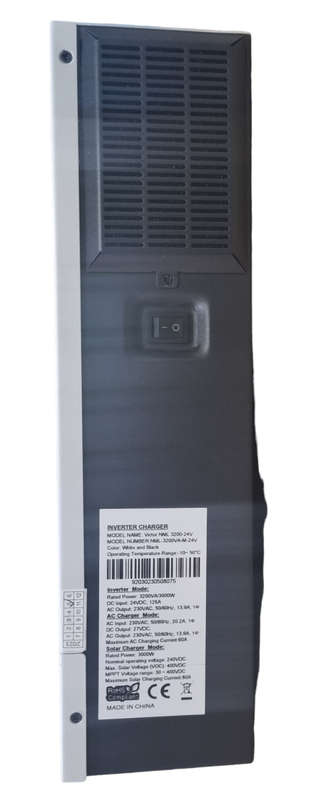

3KVA 3000Watt BounceBand inverter

BounceBand Hybrid inverter 3200-24V is the latest multi-function inverter/charger model from BounceBand, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

http://www.bounceband.net/about/

Features:

-Pure sine wave output

-Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc.)

-Built-in MPPT 50A/60A solar charge controller

-Combining solar system, AC utility, and battery power source to supply continuous power

-Overload, short circuit and deep discharge protection

-Parallel operation with up to 3 units (Available for 4KW/5KW only)

-Cold start function

-Support USB, RS485 monitoring function

Specifications:

Solar Inverter:

-Model Name: NML 3200-24V

-MD: PV18-3024 VPM

-Operating Temperature: 10C ~ 50C

-Protection Class: Class I

Protection Degree: IP 20

Inverter Mode:

-Rated Power: 3200VA/3000W

-DC Input: 24VDC,130A

-AC Output: 230VAC 50/60Hz 13A

AC Charge Mode:

-AC Input: 230VAC 50/60Hz 17.7A

-DC Output: 27VDC 30A/20A

Solar Charger Mode:

-Rated Current:60A

-System Voltage: 24VDC

-MPPT Voltage Range: 30-120VDC

-Max. Solar Voltage (VOC): 145VDC

-Max. Charge Current: 80A

What's in the Box:

1x 3KW 24V/80A Pure Sinewave Hybrid MPPT Inverter - BounceBand(Excluding Solar Batteries and Panels)

1x User Manual

Please note by law, this product does require installation by a qualified installer that will be able to issue you with a Certificate of Compliance (COC) once installed.

What's in the box

1x 3KW 24V/80A Pure Sinewave Hybrid MPPT Inverter - BounceBand

1x User Manual
