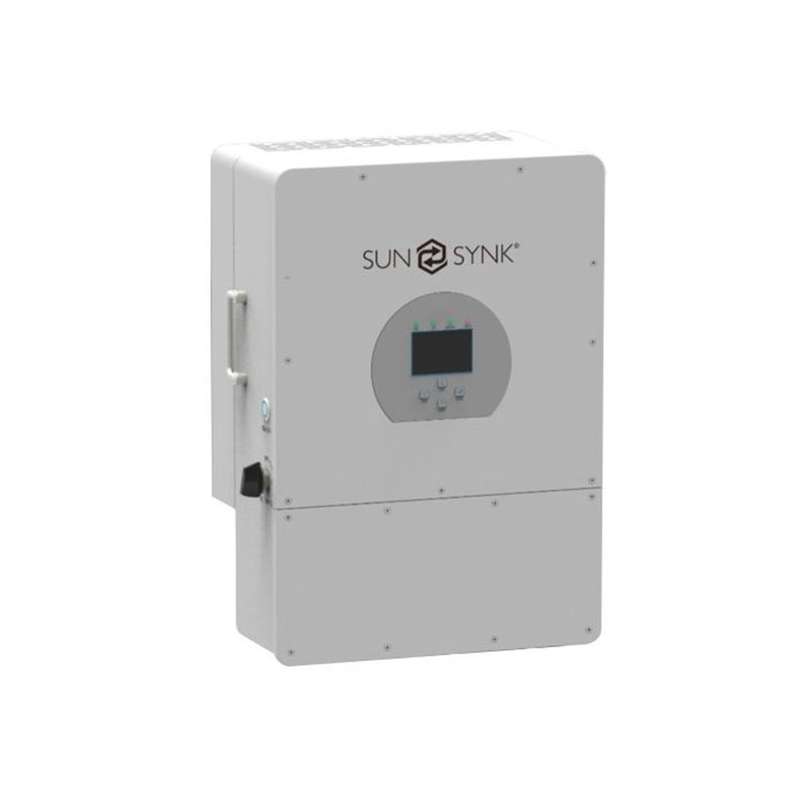

Sunsynk 12kW 3 Phase Hybrid PV Inverter

The Sunsynk Three-Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those 'parity' targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.

Product Features

• Easy and simple to understand LCD display with a visual power flow screen and can be monitored using Wi-Fi or GSM monitoring
• Smart settable 3-stage MPPT charging for optimised battery performance
• Auxiliary load function
• Up to 4 inverters in parallel
• Compatible with mains electrical grid voltages, power generators or wind turbines
• Self-consumption and feed-in to the grid as well as automatic restart while AC is recovering
• DC and AC couple to retrofit existing solar system
• Compatible with a 48V low-voltage battery
• Configurable battery charging and charging priorities from different sources (AC / Solar / Generator)
• Programmable supply priority for battery or grid and multiple operational modes
• 6 Configurable time periods for battery charging/discharging
• Overload/over-temperature/short-circuit protection
• Smart battery charger design for optimised battery protection
• Limiting function installed to prevent excess power overflow to grid
• Isolation transformer design
• Important: All solar products and power systems, and their components must be installed by appropriately qualified Installers to make sure that the products are safely installed and meet Local regulations and compliance

Safety Features

• Compliance:
  • IEC61727
  • IEC62116
  • IEC600068
  • IEC61683
  • IEC/EN62109-1/2

Technical Specifications

Technical Documents
