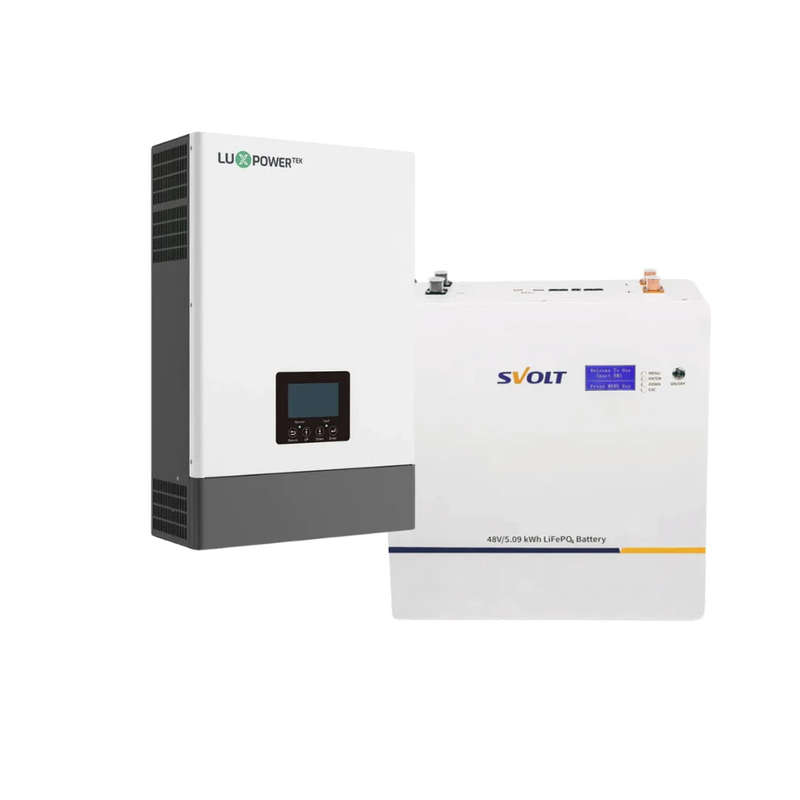

Luxpower 5KW OFF GRID Inverter (SNA5000WPV)
OUTPUT DATA
- Rated power: 5000W/5000VA.
- Parallel capacity: YES.
- Normal output voltage: 230/240, Split phase 220/110 Vac *
- Normal output frequency: 50/60Hz.
- Surge power: 10000VA.
- Switch time: 10ms.
- Waveform: Pure sine wave.
- Battery Type: Lithium/Lead-Acid.
- Normal Voltage: 51.2V/48V.
- Max. Charge Voltage: 59V.
SOLAR DATA
- Max. Recommended PV Power: 3200W/3200W.
- MPPT Tracker: 2.
- Max. PV Open Circuit Voltage: 480Vdc.
- MPPT Voltage Range: 100-385Vdc.
- Max. Solar Charge Current: 100A.
- Max. Solar Input Current: 13A/13A.
- Parallel MPPT Charger: YES.
GRID DATA
- Normal Voltage: 230Vac.
- AC Voltage Range: 110-280Vac.
- Max. Charge Current: 60A.
- Frequency Range: 50/60Hz(Auto Sensing).
INTERFACE
- Display: LCD+LED.
- Lithium Battery Communication: CAN/RS485.
- RS485/Dry Connector: YES/YES.
- Wifi/GPRS: YES/YES.
- 2 YEARS WARRANTY
SPECIFICATIONS
- Dimensions(W/H/D): 330x504x135mm.
- Weight 14Kg.
- Protection DegreeIP20.
- Relative Humidity5%~95% Relative Humidity(Non-condensing).
- Operating Temperature0°C~50°C.
- Storage Temperature-15°C~60°C.
- Applicable for pure off grid/ backup power / self-consumption / on grid situation
- Integrated with 2 MPPT solar charge controllers, MPPT ranges 120V~385V
- Rated power 5KW, power factor 1
- Be able to run with or without battery in On-grid and Off-grid mode
- With separated generator input interface, able to control generator remotely
- Solar and utility grid can power loads at the same time
- With integrated advanced parallel function, up to 9 pcs max paralleling
- Support CAN/RS485 for Li-ion battery BMS communication
- WIFI/ GPRS remote monitoring included, setting and firmware update, support website, free IOS/Android APP
Luxpower offers a range of efficient and affordable off-grid inverters, including the Luxpower 5kW Off-Grid Inverter, Luxpower SNA 5000, and Luxpower ECO Hybrid SNA 5K. These inverters are designed to provide power to homes, with or without grid power, and are compatible with a variety of battery types, including lithium and lead-acid.
The Luxpower 5kW off-grid inverter is a DC to AC power inverter with a built-in battery charger and MPPT solar charge controller, allowing for maximum power generation from solar panels. It is also generator-ready and can be used as an off-grid power source, providing freedom from the grid.
The Luxpower 5kW Off-Grid Inverter is compatible with a variety of battery management systems, including BYD, CFE Battery, Dyness, Pylontech, Revov, Shoto, and UZ Energy. It has a surge power capacity of 10000VA and is rated for 5000W/5000VA.
The Luxpower 5kW off-grid inverter also features a LCD+LED display and is equipped with WiFi/GPRS and RS485/Dry Connector for communication. It comes with a 2-year warranty and is designed for use in a range of operating temperatures and humidity levels.
To purchase or learn more about the Luxpower inverter, visit the Luxpower account login page or read reviews on the Luxpower inverter.
GENERAL INFO
- Battery voltage: 48VDC.
