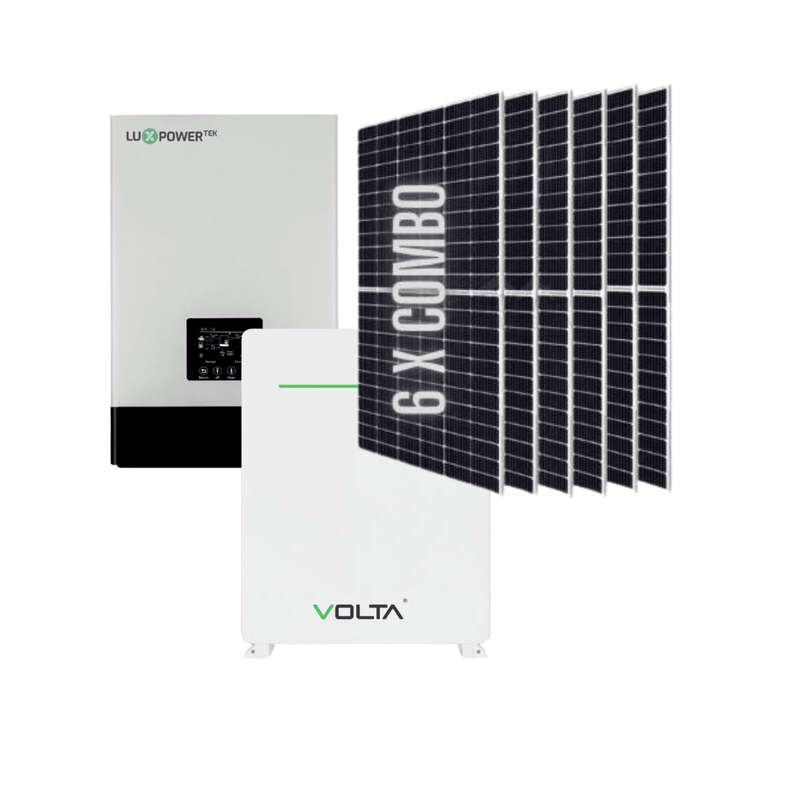

5KVA LuxPower Hybrid Inverter MPPT + Volta 5.12kWh (STAGE 1 / NEW GEN) Lithium Battery + 6 x 545W Tier 1 Mono Crystal Solar Panels Combo Kit
Complete Backup Power & Solar Energy Solution
This 5KVA LuxPower Hybrid Inverter & Volta PRO Lithium Battery Combo, paired with six 545W monocrystalline solar panels, offers a reliable and efficient energy backup solution for residential and commercial applications. Whether for load shedding, off-grid living, or hybrid solar power generation, this system provides intelligent power management, high-efficiency energy storage, and seamless solar integration.
Combo Includes:
1x LuxPower 5KVA / 5000W Hybrid Inverter (WiFi Dongle Included)
1x Volta STAGE 1 NEW GEN 5.12kWh Lithium Battery (LiFePO4, 51.2V 104Ah)
6x 545W Monocrystalline Tier 1 Solar Panels
Battery Cables & Brackets Included
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK
Key Features
LuxPower 5KVA Hybrid Inverter
Smart Hybrid & Off-Grid Operation Switches seamlessly between solar, battery, and grid power for an uninterrupted power supply.
Dual MPPT Solar Charge Controller Max 120A charge current, optimizing solar energy conversion.
Scalable Power Solution Parallel up to 10 inverters for increased capacity.
Remote Monitoring & Control WiFi-enabled with mobile app monitoring for real-time tracking and performance optimization.
Broad Battery Compatibility Works with Volta, Deye, Growatt, Sunsynk, Victron, PylonTech, and more.
Advanced Safety Features Overload, short circuit, surge, and temperature protection for enhanced system reliability.
Technical Specifications
LuxPower 5KVA Hybrid Inverter
- Inverter Type: Hybrid (Grid-Tied & Off-Grid)
- Rated Power: 5,000W / 5KVA
- Surge Power: 7,200VA
- Waveform: Pure Sine Wave
- MPPT Solar Charge Controller:
- Max PV Input Power: 6,200W
- MPPT Voltage Range: 90V - 500V DC
- Max Solar Charge Current: 120A
- AC Charging Capacity:
- Charge Current: 100A
- Input Voltage: 230V AC
- Selectable Voltage Range: 195V - 253V AC
- Battery Compatibility:
- Voltage Range: 20V - 33V DC
- Max Charge/Discharge Current: 150A
- Connectivity & Monitoring:
- WiFi Remote Monitoring
- RS485 & CAN Communication for BMS Integration
- Installation & Dimensions:
- Wall-Mounted (IP20 Rated Indoor Use Only)
- Size: 440 x 620 x 150 mm
- Weight: 46 kg
- Warranty: 2 Years

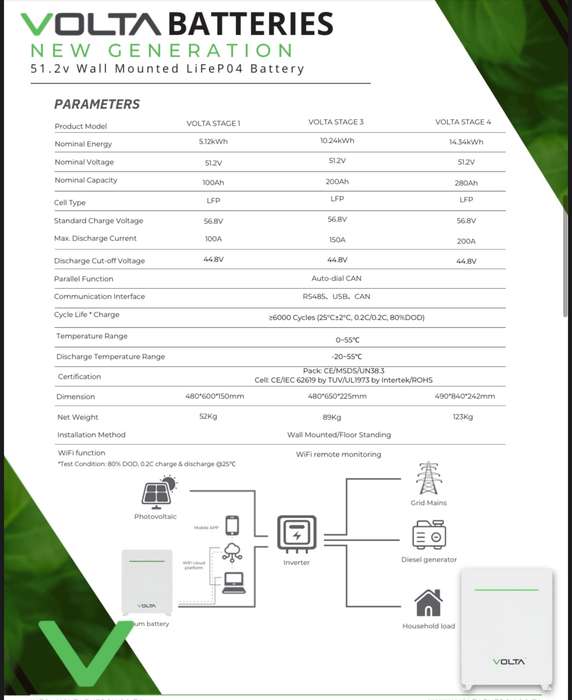

Volta STAGE 1 NEW GEN 5.12kWh Lithium Battery
High-Performance LiFePO4 Battery Long-lasting and efficient energy storage with a 10-year warranty.
Scalable & Expandable Connect up to 32 battery units for a total storage capacity of 170kWh.
Advanced Battery Management System (BMS) Protects against overcharging, over-discharging, and short circuits.
Wall-Mounted & Floor-Standing Installation Flexible placement options to suit your space requirements.
Wide Inverter Compatibility Compatible with Deye, Sunsynk, Growatt, SMA, LuxPower, Victron, and more.
Technical Specifications
Volta PRO 5.12kWh Lithium Battery
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Total Energy Capacity: 5.32kWh
- Usable Capacity: 4.79kWh
- Depth of Discharge (DOD): 90%
- Cycle Life: 6,000+ Cycles at 25°C (0.5C/1C Charge & Discharge Rate)
- Charge & Discharge Capacity:
- Recommended: 50A
- Maximum: 100A
- Peak Discharge: 150A (2 minutes @ 25°C)
- Operating Temperature Range:
- Charge: 0°C to 55°C
- Discharge: -20°C to 60°C
- Storage: 0°C to 35°C
- Communication Ports: CAN 2.0, RS485
- Installation: Wall-Mounted or Floor-Standing
- Dimensions & Weight:
- Size: 440 x 620 x 150 mm
- Weight: 46 kg
- Battery Warranty: 10 Years
Solar Panels (6 x 545W Monocrystalline)
High-Efficiency Solar Power Delivers maximum energy conversion with mono-crystalline technology.
Durable & Weather-Resistant Designed for harsh environments and extreme temperatures.
Optimized for LuxPower Inverters Ensures seamless solar energy integration for enhanced backup power performance.
Package Contents
1x LuxPower 5KVA Hybrid Inverter (WiFi Dongle Included)
1x Volta PRO 5.12kWh Lithium Battery (LiFePO4, 51.2V 100Ah)
6x 545W Monocrystalline Solar Panels
Battery Cables & Mounting Brackets
1x Ethernet Communication Cable
1x User Manual
Installation & Warranty Guidelines
- Installation Requirement: Must be installed by a qualified electrician or wireman.
- Certificate of Compliance (COC): Required for warranty validation.
- Warranty Coverage:
- Inverter Warranty: 2 Years
- Battery Warranty: 10 Years<...
