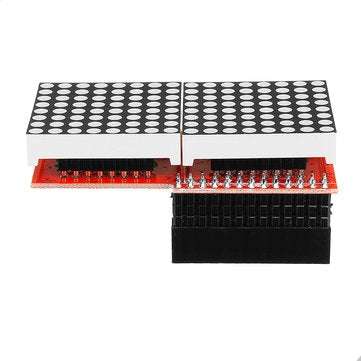

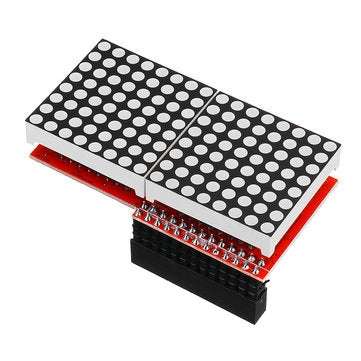

8x16 MAX7219 LED Dot Matrix Screen Module Geekcreit for Arduino - products that work with official A

20 available / new

R415.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3519

93.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643371537

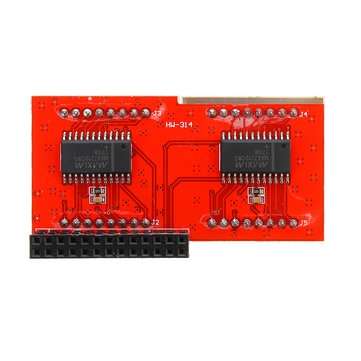

Features: Using the LED dedicated constant current control chip, basically only occupy the Raspberry Pi SPI interface (3 IO + 2 enable) to control 64 LED lights - Support SPI interface B/B+ involved in Raspberry Pi - Driver chip: MAX 7219 - Dot matrix type: 8x8 common negative red dot matrix - Size: 64.3x35x26.5mm Package Included: 1 x MAX7219 LED Dot Matrix

Pin number	Identification	Description
1 17	3.3V	Input
2 4	5V	Input
3 578 1011 12 13 15 16 18 21 22 26	NC	NC
6 9 14 20 25	GND	Power
19	MOSI	data input
23	SCK	Clock signal
24	CE0	Chip select signal
