AD4USB: USB Measurement module

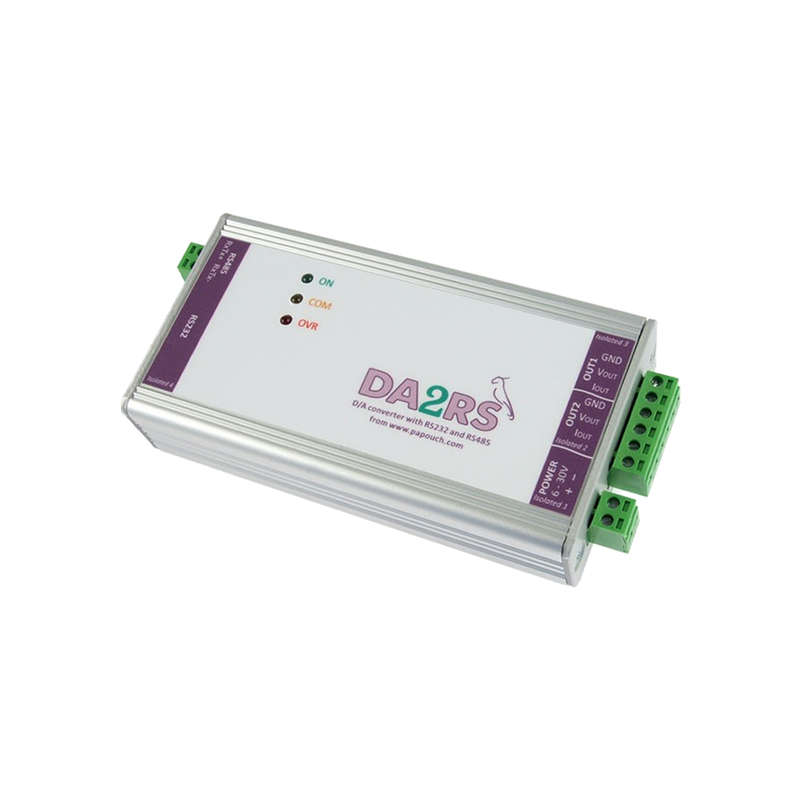

DA2 analog outputs can be used for process regulation and automation or controlling analog inputs (e.g.  electronic thermostats, electronic valves, speed control, dimming of lighting,...).

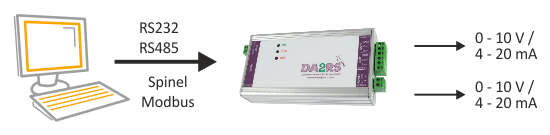

Device function principal

Features

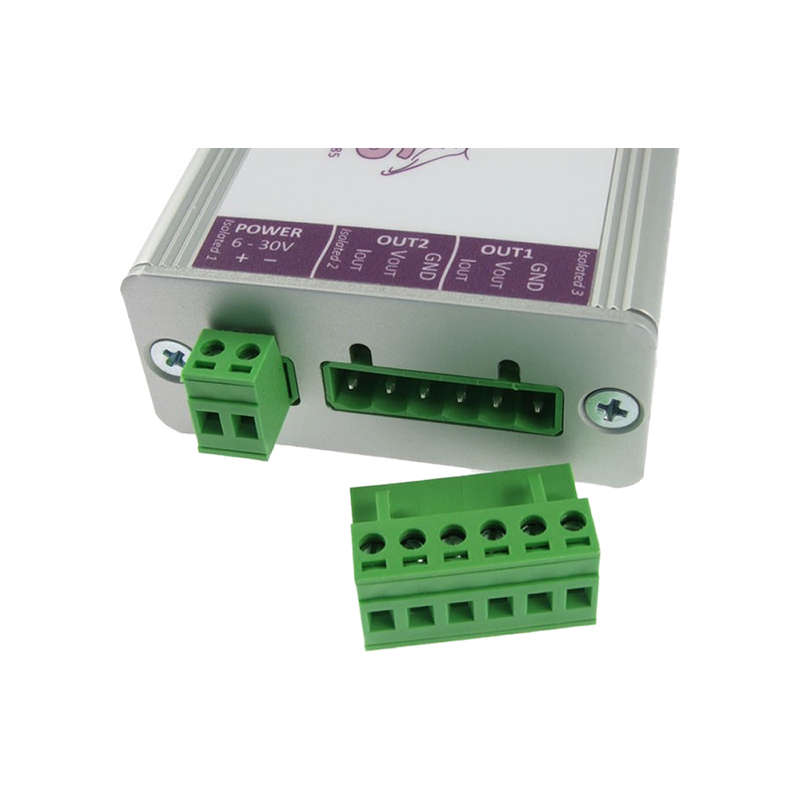

• Two analog outputs (independent settings for current or voltage). Available ranges:
  0 10 V, 0 5 V, ±10 V, ±5 V, 4 20 mA, 0 20 mA, 0 24 mA
• Output range divided to 10 000 divisions.
• Active current outputs.
• Each output galvanically isolated.
• 16 bit D/A converter

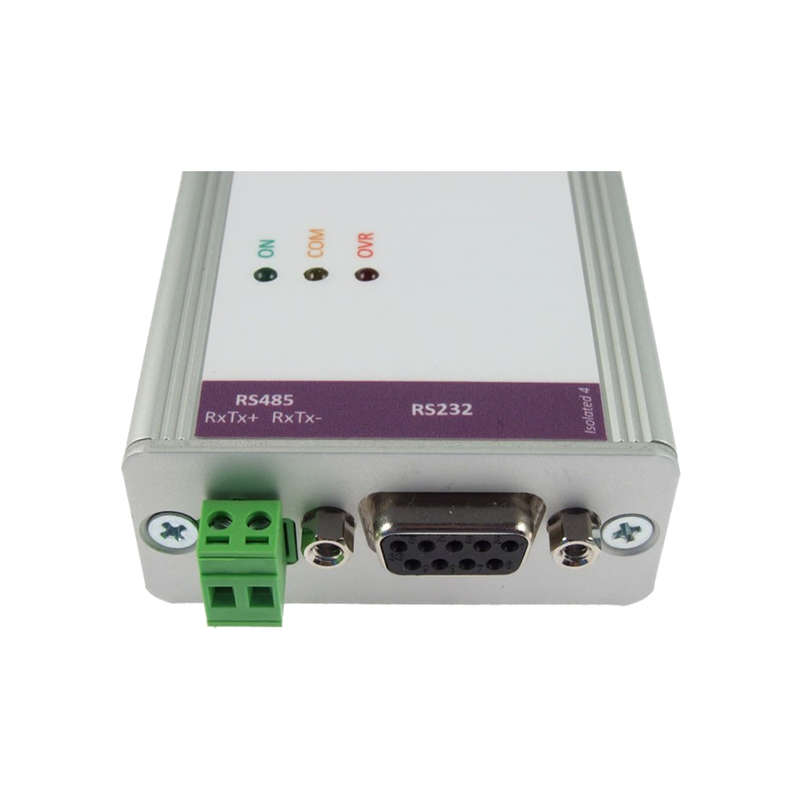

• RS232 or RS485 communication using Spinel or Modbus RTU.
• Wide power voltage range (8 to 30 V).

Block diagram

The device is divided into four completely galvanically isolated sections:

1. Power and processor unit,
2. communication lines (RS232 a RS485),
3. output 1,
4. output 2.

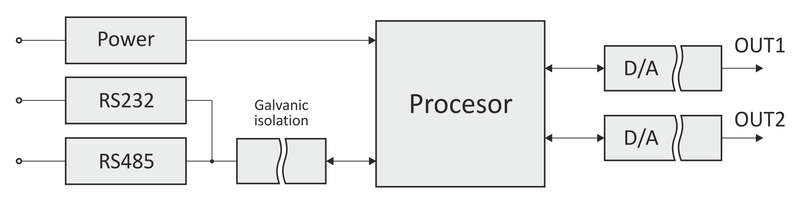

Block diagram of DA2RS

Dueto the galvanic isolation, the analog converter can be connected to other systems without damaging the equipment or adversely affecting the systems beacuse of the connection of different voltage potentials via a common ground conductor..
