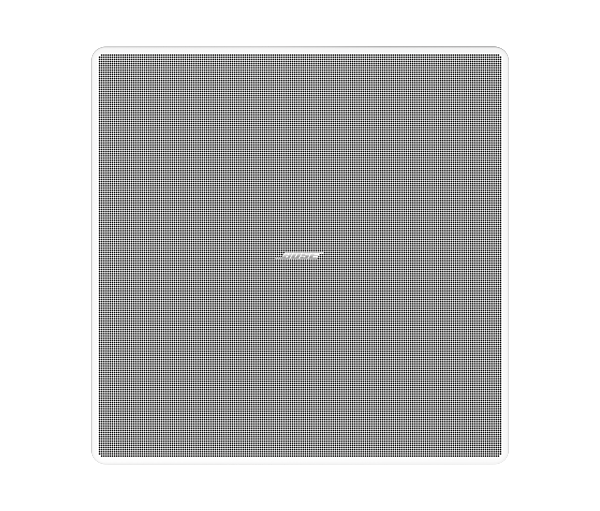

BOSE Professional EdgeMax EM180 loudspeaker - Each - White

BOSE Professional EdgeMax EM180 loudspeaker - Each - White

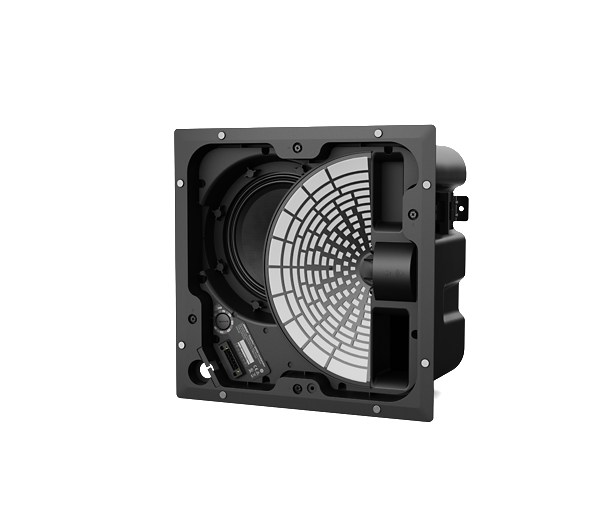

Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.

Features:

• PhaseGuide technology provides unique asymmetrical vertical pattern for room-filling coverage when mounting near wall-ceiling boundary

• Provides improved room visual appearance for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers

• Nominal 180° horizontal coverage designed for in-ceiling mounting along wall coverage zones

• High-frequency compression driver for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters

• 8-inch woofer with wall-boundary loading provides extended bass impact

• 2-way passive crossover with 70/100V transformer

• New auto-hold, spring-loaded mounting arms for fast, easy installs

• Magnetically attached grill for quick access to wiring and tap settings

• UL1480A listing for air-handling (plenum) space installation

Applications

Retail stores
Restaurants and bars
Concourse
Transportation facilities
Resorts and hospitality venues
Houses of worship
Conferencing

Specifications:

Frequency Response (+/-3 dB)
50 Hz - 18 kHz


Frequency Range (-10 dB)
45 Hz - 20 kHz
Nominal Dispersion
75° Vertical
180° Horizontal

Long-Term Power Handling
125 W (500 W peak)

Sensitivity (SPL / 1 W @ 1 m)
93 dB SPL


Maximum SPL @ 1 m
114 dB SPL (120 dB SPL peak)

Transducers
1 x 8-inch woofer
1 x compression driver

Nominal Impedance
8 (transformer bypassed)
