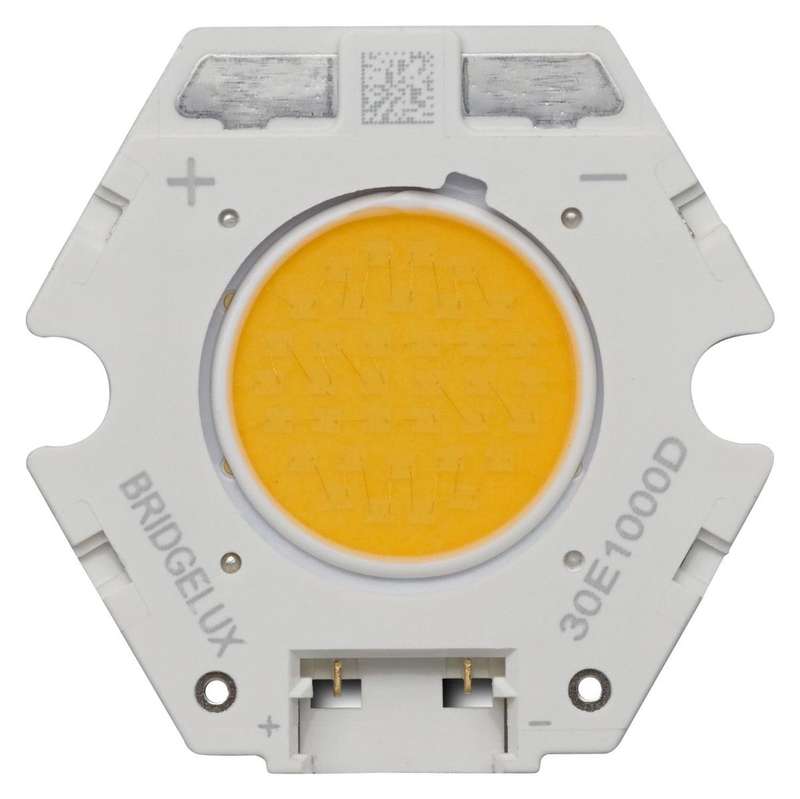

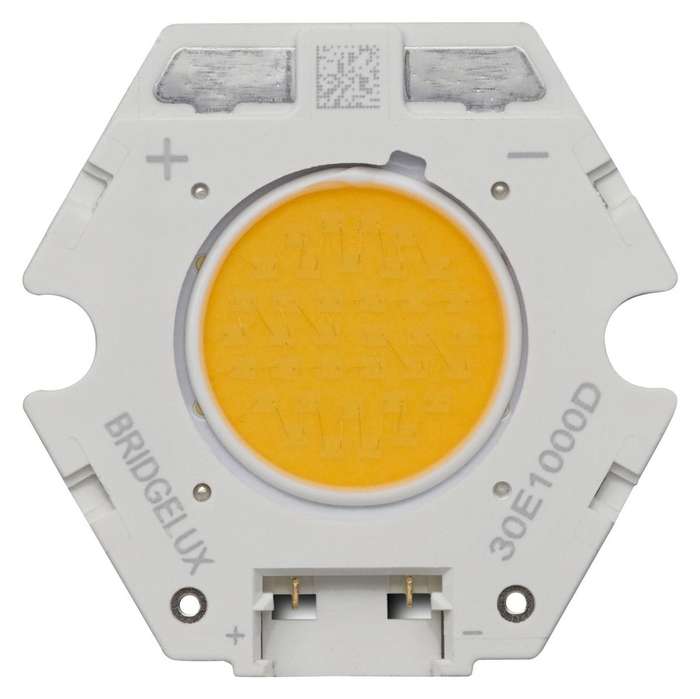

Bridgelux (BXRC-27E1000-C-73) LED, Warm White, 80 CRI Rating, 12.5W

Product Information:COB Colour: Warm WhiteColor Rendering Index Max: 80Power Rating: 12.5WLuminous Flux @ Test: 1000lmForward Current @ Test: 360mAViewing Angle: 120°Forward Voltage VF Typ: 34.8VNominal CCT (K): 2700 KCOB Length: -COB Width: -Opto Case Style: -Lumens / Watt @ Current Test: 143lm/WLight Emitting Surface: 9.9mmLens Type: -Lens Shape: Round with Flat TopHeight: 1.9mmProduct Range: Gen 7 Vero 10 ArrayProduct Overview:Vero® Series is a revolutionary advancement in chip on board (COB) light sourcetechnology and innovation. Vero LED light sources simplify luminaire design andmanufacturing processes Vero Chip on Board (COB) LED arrays are available infour LES configurations, engineered to enable new degrees of flexibility andreliability over a broad range of electrical currents. Vero arrays deliverincreased lumen density to enable improved beam control and precision lightingwith 2 and 3 SDCM color control standard for clean and consistent uniformlighting. Vero products include an onboard connector port that enables asolder-free electrical interconnect, and simple mounting features forplug-and-play installationEfficacy of 150 lmW typicalLumen output performance ranges from 583 to 3970 lumensBroad range of CCT options from 2700K to 6500KCRI options include minimum 65, 70, 80, and 902 and 3 SDCM color control for 2700K-4000K CCTReliable operation at up to 2X nominal drive currentRadial die pattern and improved lumen densityThermally isolated solder padsOn-board connector portTop side part number markingsVf bin code backside marking
