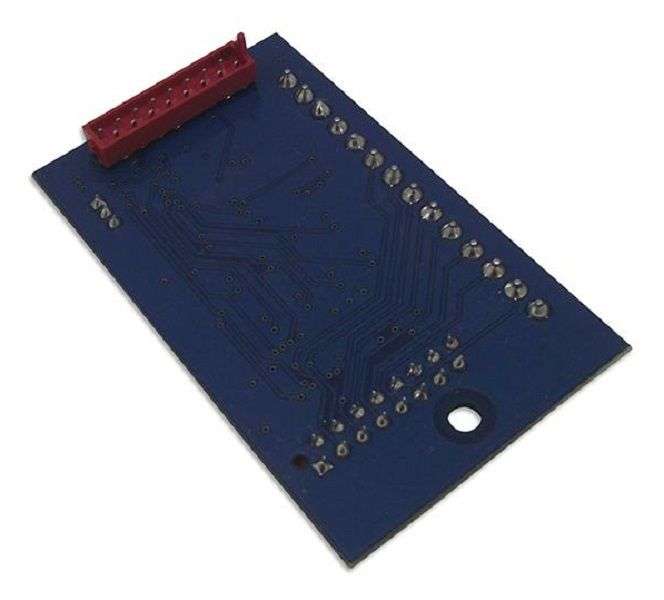

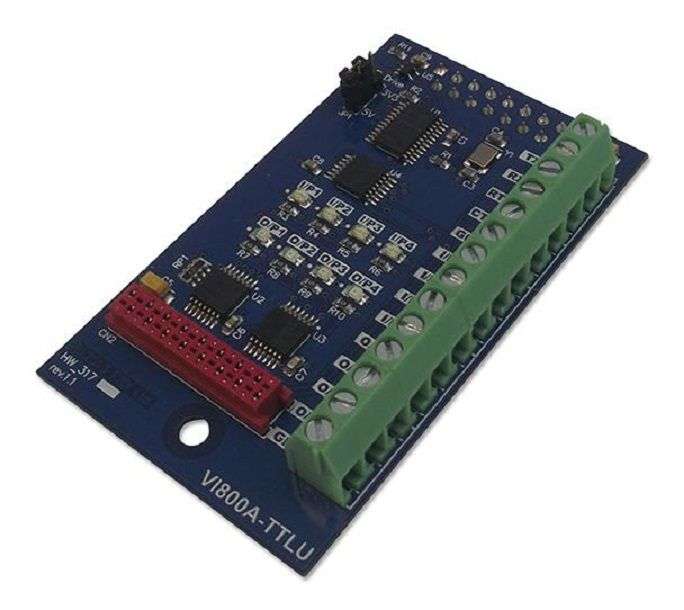

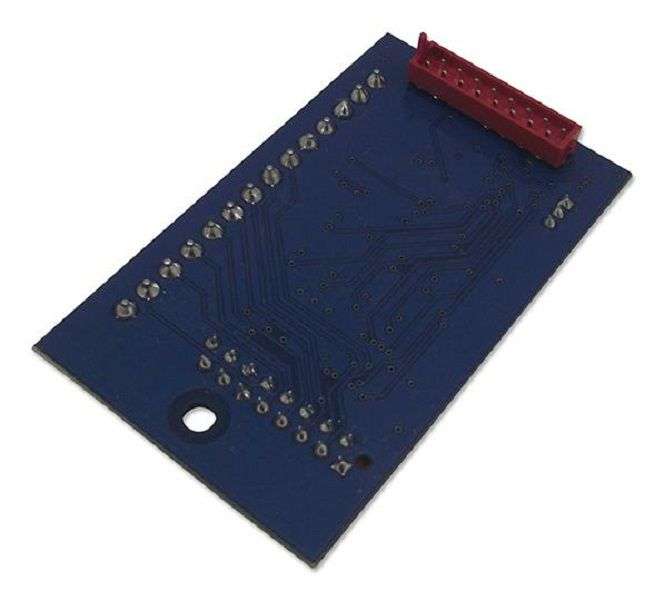

Bridgetek (VI800A-TTLU) UART Expansion Board

UART Expansion Board, Full Duplex SPI to UART Bridge, 921600Baud Speed, 5Vtolerant I/O, GPIOProduct OverviewThe VI800A-TTLU is a Plug-in Serial Adapter Board for the VM800P Plus module,which expands the IO capabilities of the VM800P to include a TTL level UART.This module behaves as a full SPI to UART bridge to the VM800P Plus module. Theproduct provides speeds up to 921600 baud, 5V tolerant I/O, GPIOs (4 input/4output) and status LED.Connects to the VM800P Plus module using an SPI interface4 GPIO inputs and 4 GPIO outputs8 LEDs to indicate the input and output status5V tolerant buffersScrew connector to connect the UART signals, GPIO inputs and GPIO outputsIO connector to connect the UART signals, GPIO inputs and GPIO outputsPowered from the VM800P moduleProduct InformationAccessory Type: UART Expansion BoardFor Use With: FTDI EVE VM800P Plus - FT800 Development PlatformProduct Range: -
