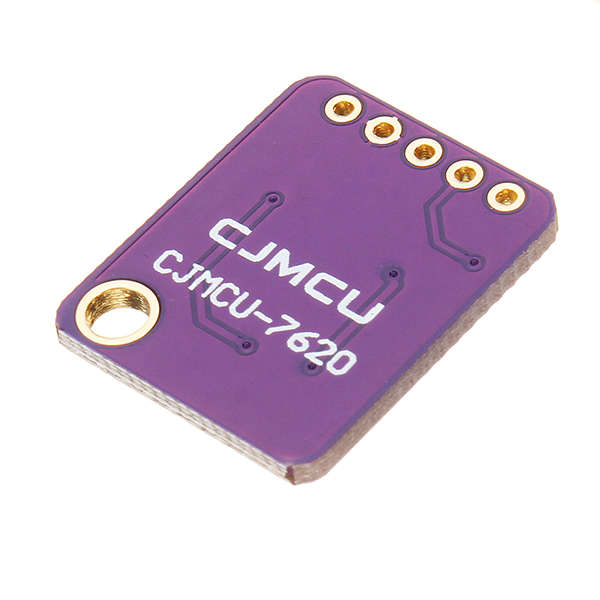

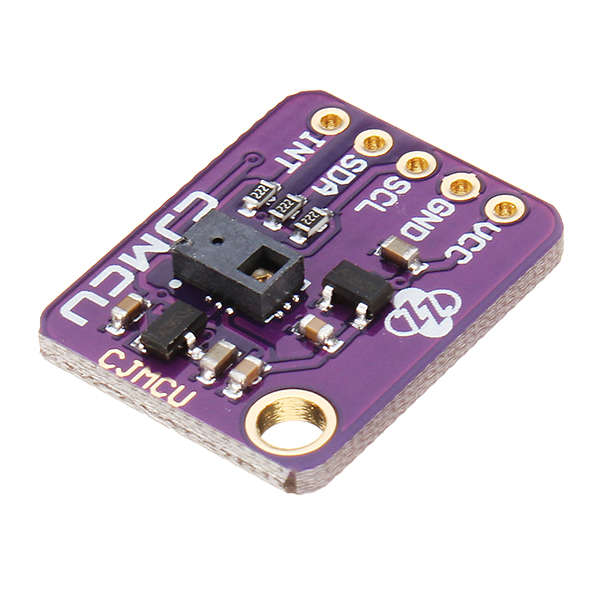

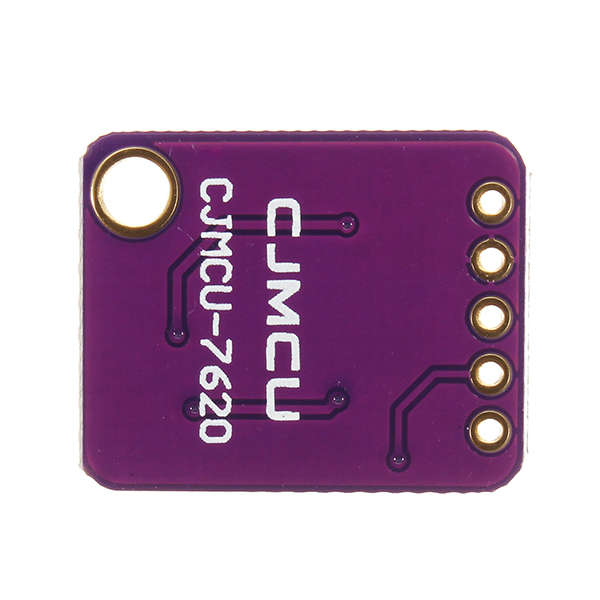

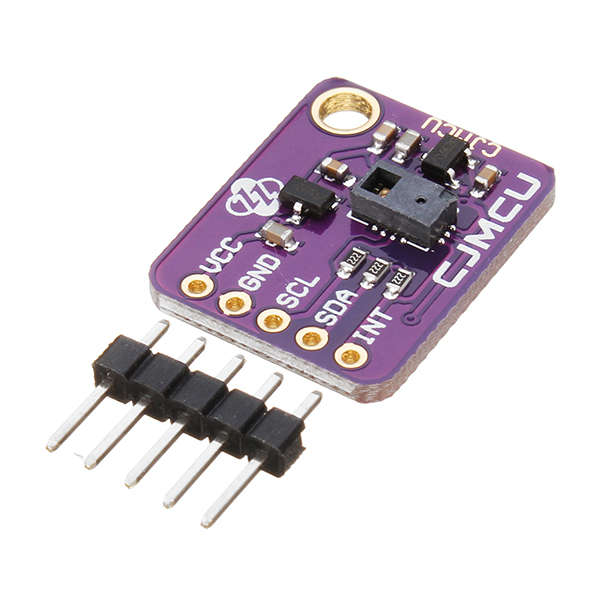

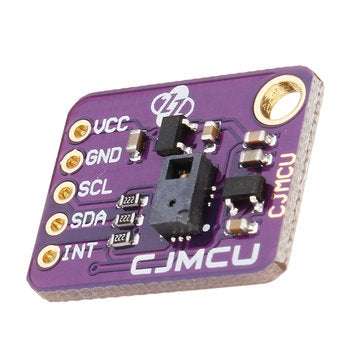

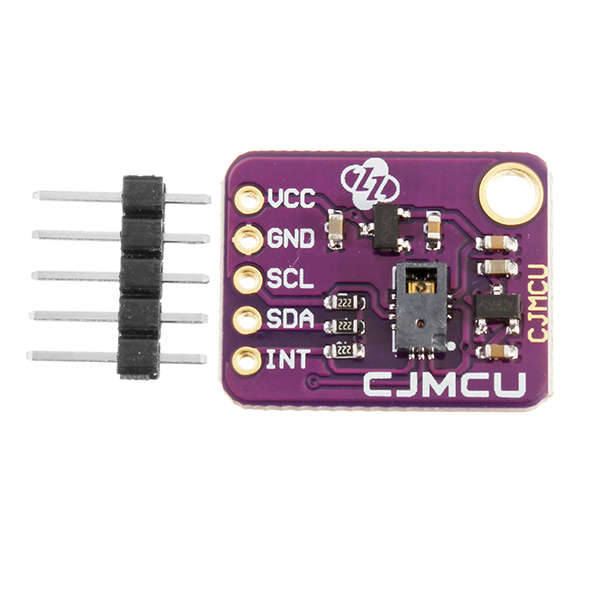

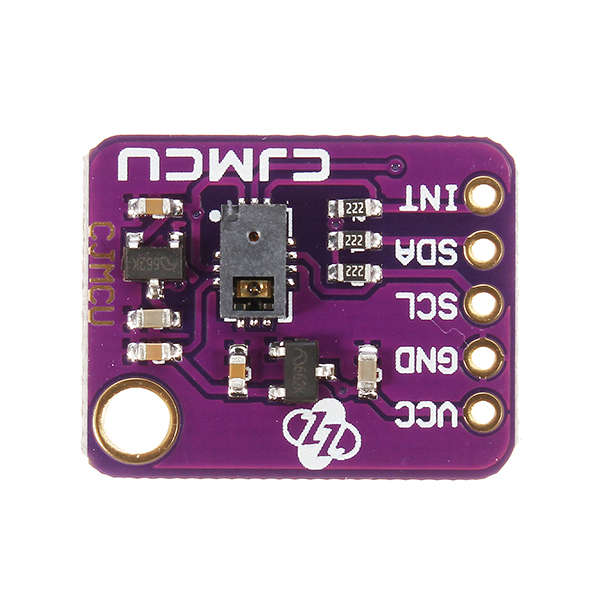

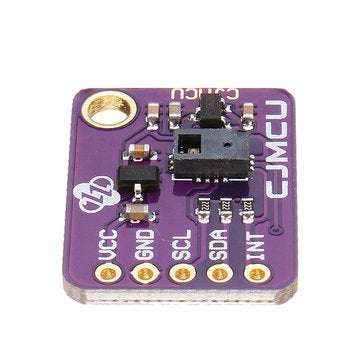

CJMCU-7620 Gesture Recognition Sensor PAJ7620U2 9 Gesture Recognition

20 available / new

R507.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3637

93.00 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

645872532

Description:

The CJMCU-7620 gesture recognition sensor is a PAJ7620U2 that integrates the gesture recognition function with the universal I2C interface into a single chip. It can identify 9 kinds of gestures, including moving upward, moving downward, moving to the left, moving to the right, moving forward and moving backward, clockwise, circumferential, counterclockwise, downward, downward, from left to right, from left to right.
The gesture information can be accessed through the I2C bus. The CJMCU-7620 gesture recognition sensor module is designed as a core chip for PAJ7260u2, a body infrared recognition IC that supports communication with the I2C protocol.

CJMCU-7620 gesture recognition sensor features:

9 gesture recognition
The gesture speed is 60 / s to 600 / s in normal mode, and the game mode is 60 / s to 1200 / S
Environmental light immunity: <100k Lux
Built-in proximity detection
The I2C interface is up to 400 kbit / S

Feature:

a Typical supply voltage is 2.8V to 3.3V and I/O voltage is 1.8V~3.3V
a Nine gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave)
a Gesture speed is 60/s to 600/s in Normal Mode and 60/s to 1200/s in Gaming Mode
a Ambient light immunity: < 100k Lux
a Built-in proximity detection
a Flexible power saving scheme
a I2C interface up to 400 kbit/s, Pull-up voltage from 1.8V to 3.3V
a Ambient light noise cancellation

Package included:

1 xCJMCU-7620 Gesture Recognition Sensor
