Closed

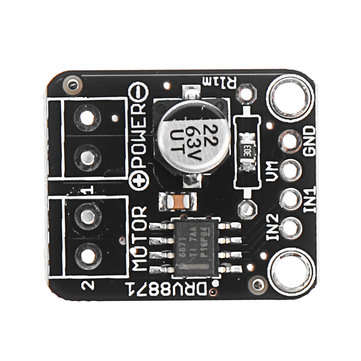

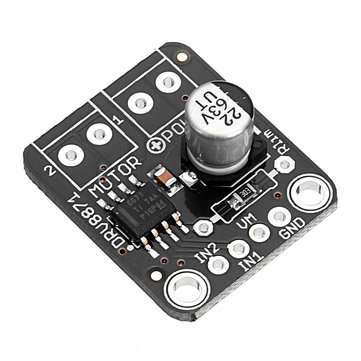

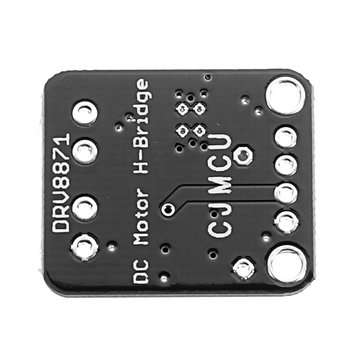

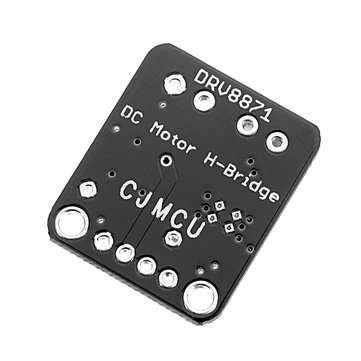

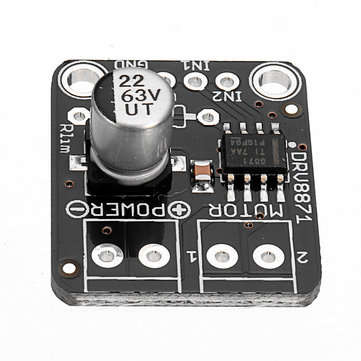

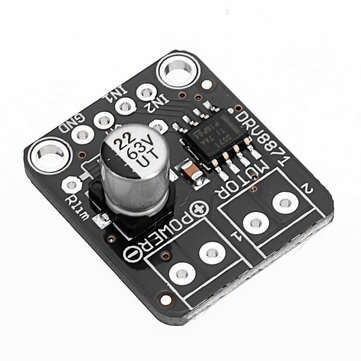

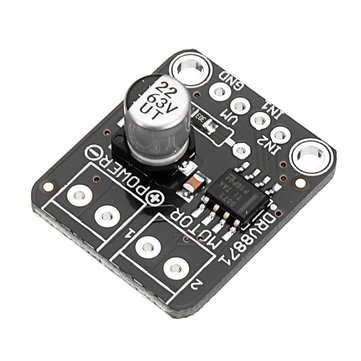

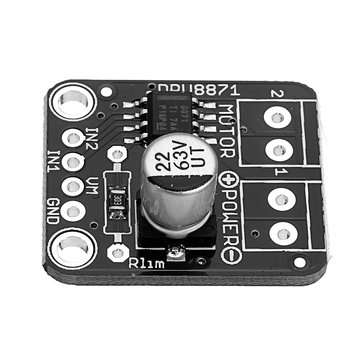

CJMCU-8871 Motor Driver DRV8871 DC Motor Driver H Bridge PWM Module

12 were available / new
R507.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
606941108
Description: ? The DRV8871 device is a brushed-DC motor driver for printers, appliances, industrial equipment, and other small machines.? Two logic inputs control the H- bridge driver, which consists of four N-channel MOSFETs that can control motors bidirectionally with up to 3.6-A peak current.? The inputs can be pulse- width modulated (PWM) to control motor speed, using a choice of current-decay modes.? Setting both inputs low enters a low-power sleep mode. The DRV8871 device has advanced current- regulation circuitry that does not use an analog voltage reference or external sense resistor.? This novel solution uses a standard low-cost, low-power resistor to set the current threshold.? The ability to limit current to a known level can significantly reduce the system power requirements and bulk capacitance needed to maintain stable voltage, especially for motor startup and stall conditions. The device is fully protected from faults and short circuits, including undervoltage (UVLO), overcurrent (OCP), and overtemperature (TSD). When the fault condition is removed, the device automatically resumes normal operation.

Features: ? H-Bridge Motor Driver: Drives One DC Motor, One Winding of a Stepper Motor, or Other Loads Wide 6.5-V to 45-V Operating Voltage 565-m?? Typical RDS(on) (HS + LS) 3.6-A Peak Current Drive PWM Control Interface Current Regulation Without a Sense Resistor Low-Power Sleep Mode Small Package and Footprint 8-Pin HSOP With PowerPADa??? 4.9 ?? 6 mm

Integrated Protection Features: ? VM Undervoltage Lockout (UVLO) Overcurrent Protection (OCP) Thermal Shutdown (TSD) Automatic Fault Recovery ? Applications: ? Printers Appliances Industrial Equipment
Package includes:

1 x Module
