LMD18200 Motor Driver Car DC Motor Professional Driver Module H Bridge

20 available / new

R568.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641128029

Description:
This drive module adopts the full H-bridge drive module composed of the DC motor H-bridge dedicated drive chip M18200T launched by the National Semiconductor Corporation of the United States, which has strong driving and braking effects, and the maximum current is 3A!
Features:
1. With power indicator 2. Adjustable speed 3. Strong anti-interference ability 4. With continuous current protection 5. A DC motor can be controlled separately 6. PWM pulse width smooth speed regulation 7. can realize forward and reverse 8. Strong driving ability and powerful braking effect
Parameter:
Main chip: LMD18200 Working voltage: control signal DC 4.5~5.5V; drive motor voltage 10.5~30V Can drive DC (motor with voltage between 10~30V) Maximum output current: 3A (instant peak current 6A) Maximum output power: 75W Size: 31.5mm x 37.5mm

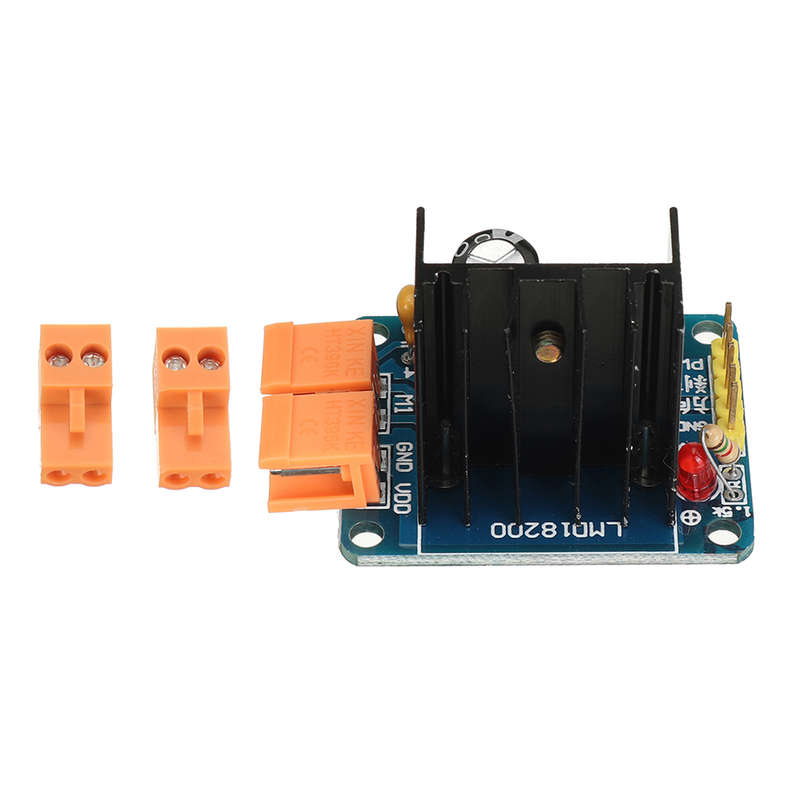

Package included:
1 x Driver Module
