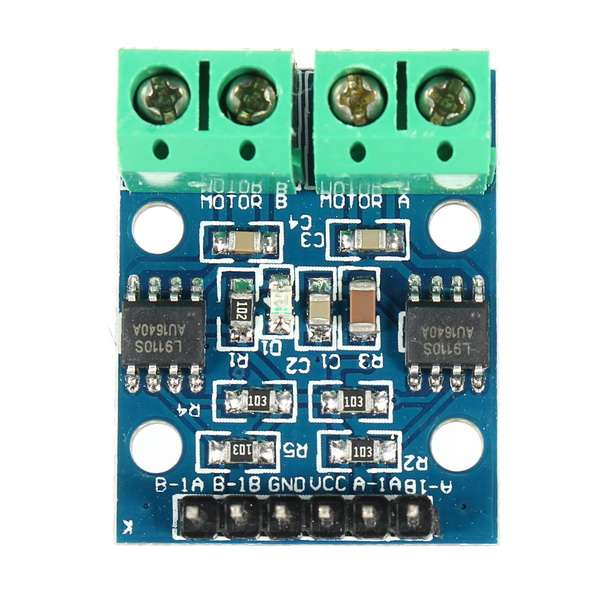

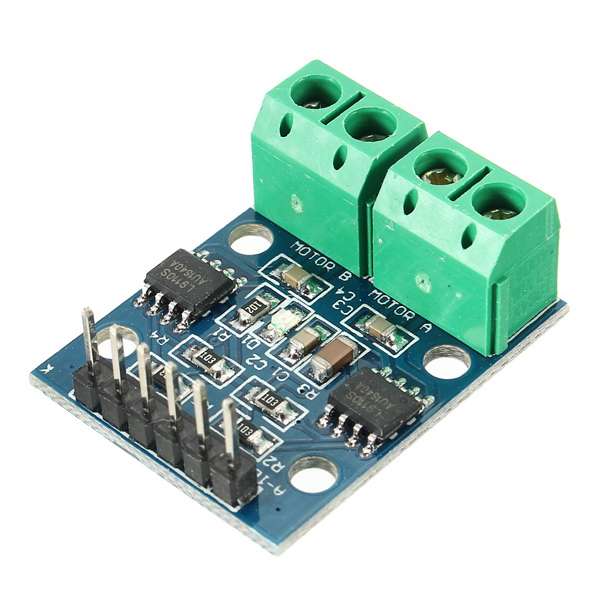

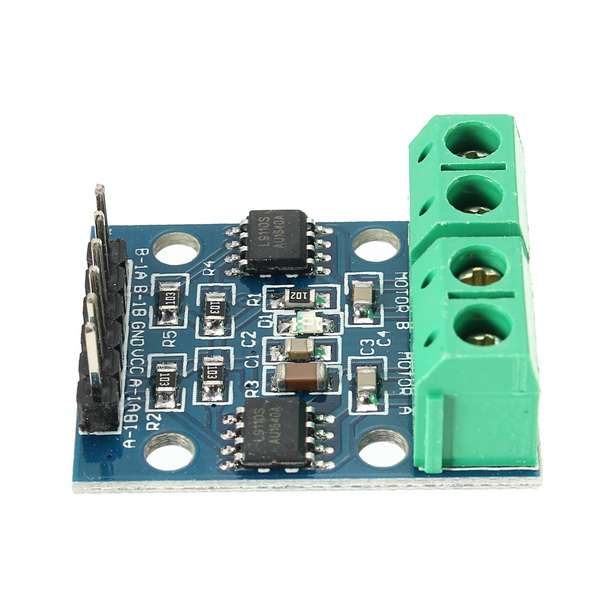

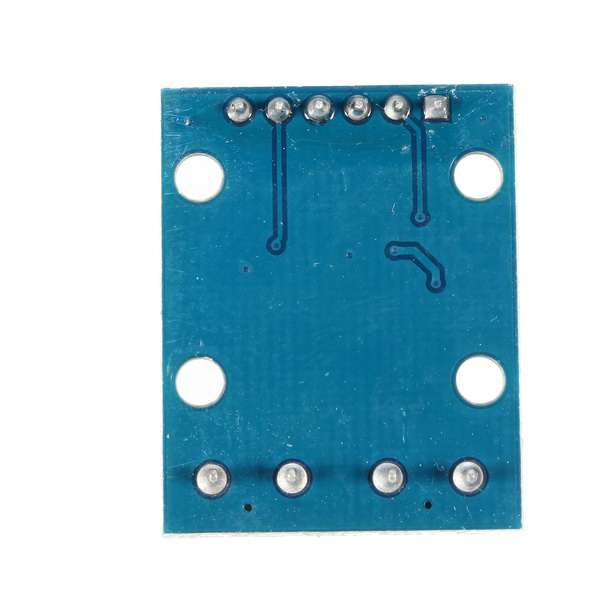

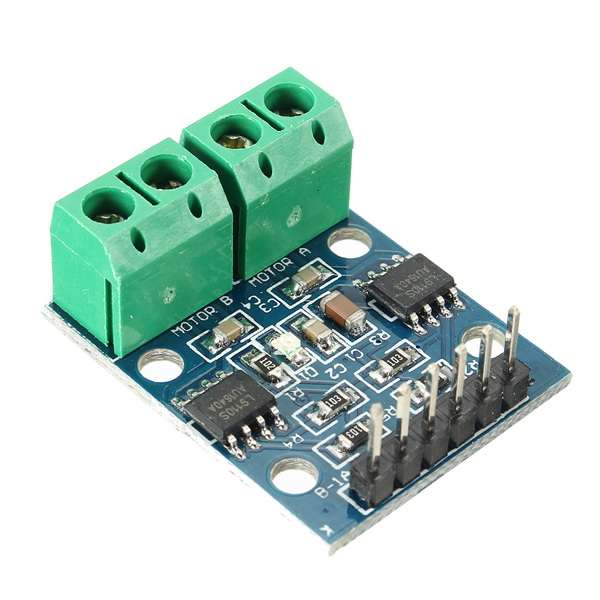

L9110S H Bridge Stepper Motor Dual DC Driver Controller Module

20 available / new

R347.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641127274

Description:

There are two L9110S motor control chip onboard
This module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor

Feature:

Work under low static current
Power supply voltage: DC 2.5V - 12V
Each channel has 800mA continuous current output
Low saturation pressure drop
TTL / CMOS output level compatible, can be connected directly to the CPU
Output built-in clamping diode, apply to the perceptual load
Control and drive integrate in IC
Pin high pressure protection function
Working temperature: 0ﾣC - 80ﾣC
Size: 29 x 21mm(L x W)

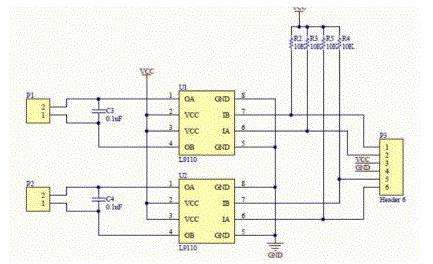

Circuit diagram:

Package included:

1 x L9110S stepper motor driver
