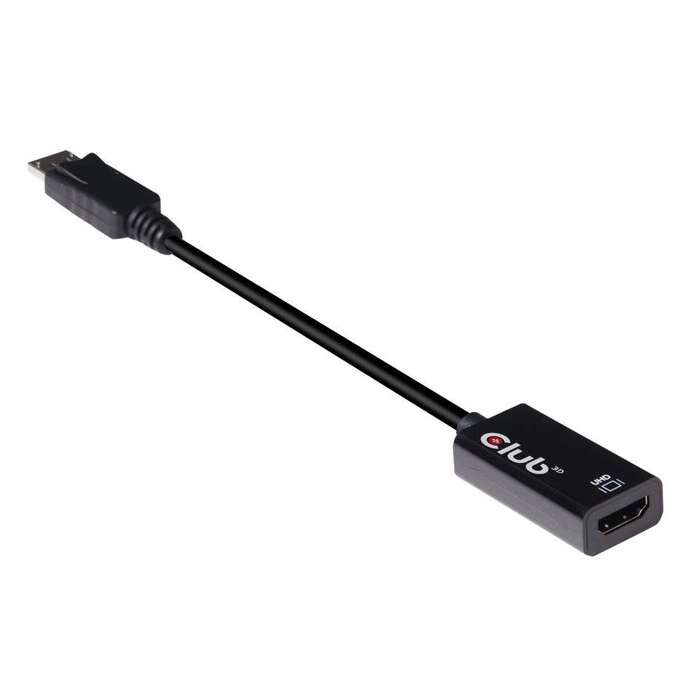

Club 3D DisplayPort 1.4 to HDMI2.0 HDR

CAC-1080 - The Club3D is a DisplayPort 1.4 to HDMI 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI output is fully compliant to HDMI specification version 2.0b. Supports up to 4K UHD Resolutions. The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz.

Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort and HDMI link bandwidth.

The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:2:2 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:2:2 over DP link to YCbCr 4:2:0 on the HDMI output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort 1.4 and the screen needs to have support for HDR and / or HDMI 2.0 a or b.

• DisplayPort 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
• Video Stream Handling
• Up to 600Mhz dual pixel path and 16bpc
• RGB/YCbCr 4:2:2/4:2:0 pixel format
• Horizontal expansion of Vesa CVT to CEA Timings (as per DP 1.4 spec)
• DisplayPort to HDMI Stereoscopic 3D Transport
• Frame Sequential to Stacked Top-Bottom Conversion
• Pass-trough of ther 3D Formats
• Audio Stream Handling
• LPCM and compressed Audio encoding formats
• Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel
• HDCP Support
• HDCP 1.3 to HDCP 1.4 Repeater function
• HDCP 2.2 to HDCP 1.4 and 2.2 Repeater Function
• HDMI transmitter
• Compliant to HDMI specifications version 2.0b
• 600MHz max TMDS character clock
• High Dynamic Range (HDR) support both Static- and Dynamic HDR.
• CEC Support - snooping, tunneling
• Max Video resolution and color depth on HDMI output
• 4K 60Hz YCbCr 4:2:2, up to 12bpc
• 4K 60Hz YCbCr 4:2:0, up to 12bpc
• 4K 30Hz RGB/YCbCr 4:2:2, up to 12bpc

What's in the box
- Club 3D DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter
