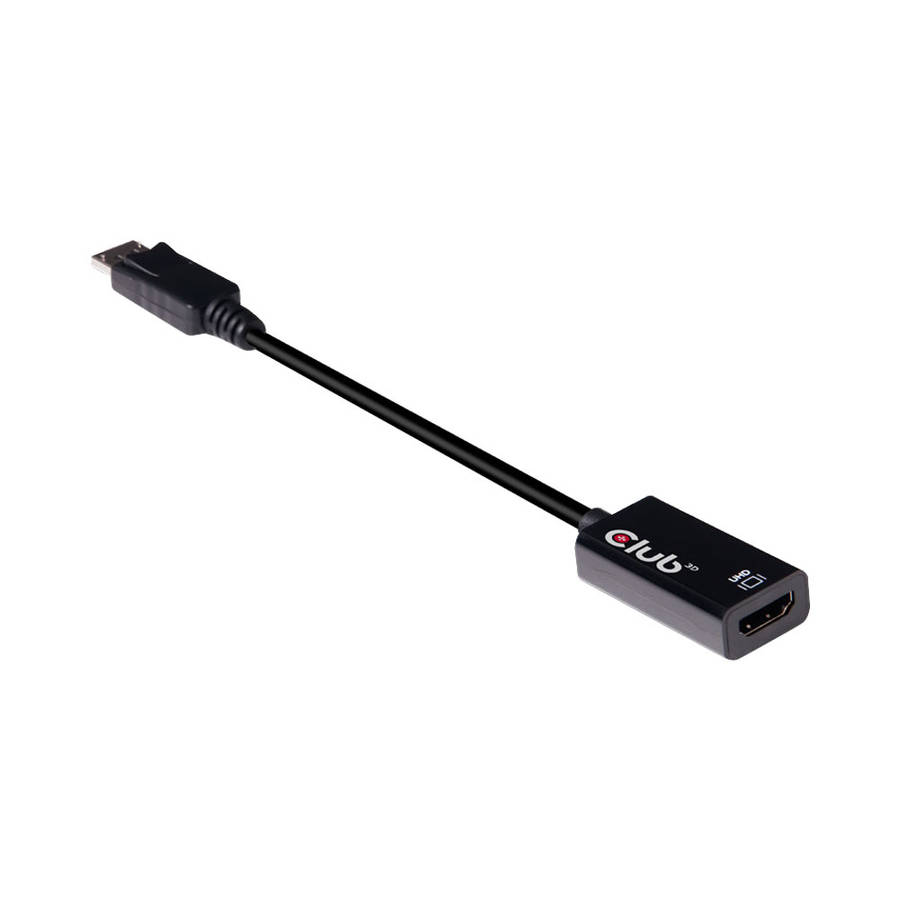

Club3D Displayport 1.4 To Hdmi 2.0B Hdr Active Adapter (Cac-1080)

Club3D DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter (CAC-1080)

The Club3D CAC-1080 is a DisplayPort 1.4 to HDMI 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI output is fully compliant to HDMI specification version 2.0b. Supports up to 4K UHD Resolutions. The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz.

Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort and HDMI link bandwidth.

The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:2:2 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:2:2 over DP link to YCbCr 4:2:0 on the HDMI output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort 1.4 and the screen needs to have support for HDR and / or HDMI 2.0 a or b.

OS Support:
Windows 10, 8.1, Apple OS X

Input:
DisplayPort 1.4 male
Output:
HDMI 2.0b female

Other info:
Box size: 20.2 x 6 x 3.5 cm
Cable: 19.2 x 2 x 1.1 cm
Product Weight: 32 gr.
Meets ROHS, FCC, and CE EMI requirements
