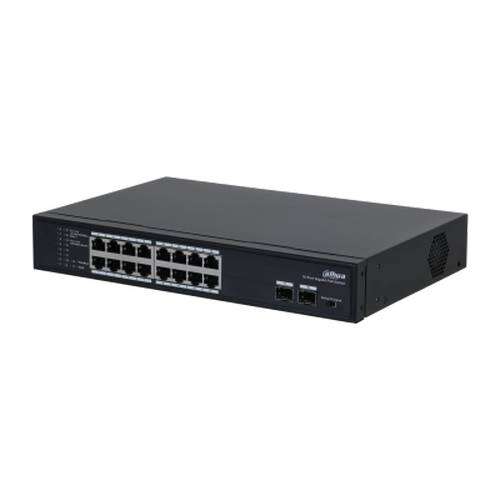

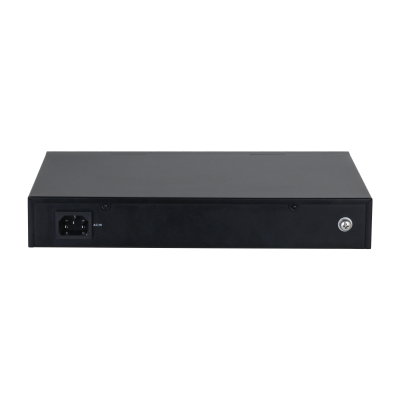

Dahua 18 Port Unmanaged Switch

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-16:16 × RJ-45 10/100/1000 Mbps;
Port 17-18:2 × SFP 1000 Mbps

Power Supply

Built-in power supply: 100240 VAC; 50/60 Hz; 2.5 A (maximum)

Operating Temperature

10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%95% (RH), non-condensing

Power Consumption

Idling: 9 W
Full load: 135 W

Performance

Layer

Layer 2

Management Type

No

Smart Managed Switch

No

Switching Capacity

36 Gbps

Packet Forwarding Rate

26.784 Mpps

Packet Buffer Size

4.1 Mbit

Jumbo Frame

9600 Byte

MAC Table Size

8K Byte

Communication Standard

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

Feature

PoE Protocol

IEEE 802.3af; IEEE 802.3at

PoE Power

Port 116 30 W;
Total 135 W

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V)

ePoE

No

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV
Differential mode: 0.5 kV

Net Weight

1.62 kg (3.57 lb)

Gross Weight

2.34 kg (5.15 lb)

Product Dimensions

285.0 mm × 189.5 mm × 43.7 mm (11.22" × 7.46" × 1.72")(L × W × H)

Packaging Dimensions

369 mm × 299 mm × 81 mm (14.53" × 11.77" × 3.19")(L × W × H)

Casing Material

Iron

Installation

Desktop mount; rack mount; wall mount

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10 /100 m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90 W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60 W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30 W

100

25.5

100

150

25.5

10
