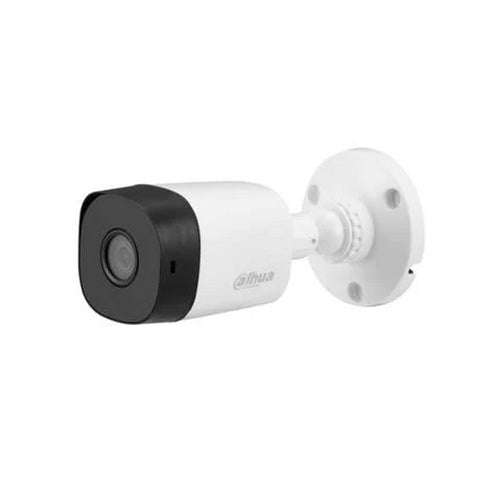

Dahua 2MP Bullet 20m IR 3.6mm

Dahua 2MP Bullet 20m IR 3.6mm

> Max. 30 fps@1080p.

> Smart IR Illumination.

> 20 m illumination distance.

> 3.6 mm fixed lens (2.8 mm,6 mm optional).

> CVI/CVBS/AHD/TVI switchable.

> IP67, 12 VDC.

• Camera

  Image Sensor

  2 MP CMOS

  Max. Resolution

  1920 (H) × 1080 (V)

  Scanning System

  Progressive

  Electronic Shutter Speed

  PAL: 1/25 s1/100000 s NTSC: 1/30 s1/100000 s

  Min. Illumination

  0.02 lux@F2.0 (Color, 30 IRE) 0.002 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)

  S/N Ratio

  >65 dB

  Illumination Distance

  20 m (65.62 ft)

  Illuminator On/Off Control

  Auto

  Illuminator Number

  2 (IR light)

  Angle Adjustment

  Pan: 0°360° Tilt: 0°90° Rotation: 0°360°

  Lens

  Lens Type

  Fixed-focal

  Lens Mount

  M12

  Focal Length

  2.8 mm; 3.6 mm; 6 mm

  Max. Aperture

  F2.0

  Field of View

  2.8 mm: H: 100°; V: 54°; D: 117° 3.6 mm: H:80°; V: 43°; D: 94° 6 mm: H: 43°; V: 24°; D: 50°

  Iris Control

  Fixed

  Close Focus Distance

  2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) 6 mm: 2.8 m (9.19 ft)

  DORI Distance

  Lens

  Detect

  Observe

  Recognize

  Identify

  2.8 mm

  44.7 m (146.65 ft)

  17.9 m (58.73 ft)

  8.9 m (29.20 ft)

  4.5 m (14.76 ft)

  3.6 mm

  55.0 m (180.45 ft)

  22.0 m (72.18 ft)

  11.0 m (36.09 ft)

  5.5 m (18.04 ft)

  6 mm

  102.9 m (337.60 ft)

  41.1 m (134.84 ft)

  20.6 m (67.59 ft)

  10.3 m (33.79 ft)

  Video

  Video Frame Rate

  CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H; NTSC: 960H

  Resolution

  1080p (1920 × 1080); 960H (960 × 576/960 × 480)

  Day/Night

  Auto(ICR)/Color/B/W

  BLC

  BLC; DWDR

  WDR

  DWDR

  White Balance

  Auto

  Gain Control

  Auto

  Noise Reduction

  2D NR

  Illumination Mode

  Smart IR

  Certification

  Certifications

  CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B

  Port

  Video Output

  Video output choices of CVI/TVI/AHD/CVBS by one BNC port

  Power

  Power Supply

  12 VDC ± 30%

  Power Consumption

  Max 2.8 W (12 VDC, IR on)

  Environment

  Operating Temperature

  40 °C to +60 °C (40 °F to +140 °F)

  Operating Humidity

  <95% (RH), non-condensing

  Storage Temperature

  40 °C to +60 °C (40 °F to +140 °F)

  Storage Humidity

  <95% (RH), non-condensing

  Protection

  IP67

  Anti-corrosion Level

  Basic Protection

  Structure

  Casing Material

  Metal

  Product Dimensions

  157.6 mm × 70.1 mm × 70.1 mm (6.21" × 2.76" × 2.76")

  Net Weigh...
