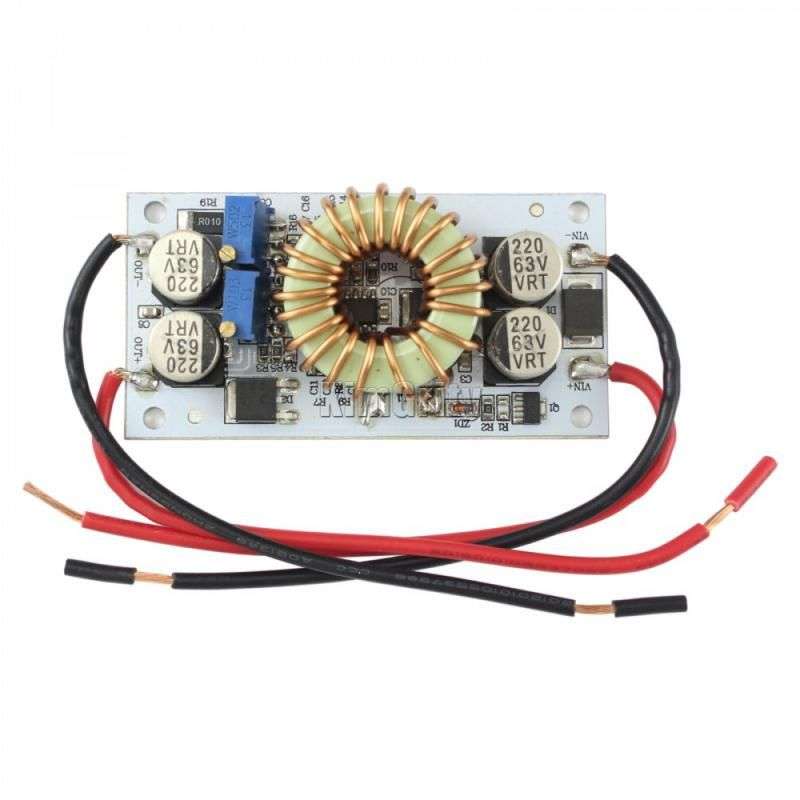

DC-DC CV&CC Boost Power Module, Aluminium Board

Used advanced IC design, with high reliability, small inrush current, small sizeefficiency up to 96%, the maximum power 250W.While the aluminium plate design and easy to install, the back of the board canbe directly attached to the metal shell on the heat. Reduce equipment space.Module type: Non-isolated boost module (BOOST)Input voltage: DC8.5V-48VInput current: 10A (MAX) more than 8A Please strengthen the heatStatic operating current: 10mA (12V litres 20V, the higher the output voltage istoo static current will increase)Output voltage: 10-50V continuously adjustableOutput current: 10A MAX, more than 6A, please strengthen the heat (with theinput and output differential pressure, the greater the difference in outputcurrent smaller)Constant current range: 0.2-8AOutput power: equal to the input voltage x 10A, such as: input 12V x 5A = 60W,input 24V x 5A = 120W, input 36V x 5A = 180W, input 48V x 5A = 240W. For morepower, you can use two modules in parallel, such as the output to 10A, you canuse two modules in parallel, the current transferred to each module can be 5A.Operating temperature: -40 - +85 degrees (ambient temperature is too high,please strengthen the heat)Operating frequency: 150KHzConversion efficiency: up to 96% (efficiency and input and output voltage,current, pressure-related)Over-current protection: (input more than 13A, automatically reduce the outputvoltage, a certain range of error.)Input Reverse Protection: Yes, (less than 5A if you need more in the reversecurrent in the input string in the diode)Installation: 4 3mm screw holes
