DC12-24V 20A 4 Channels DMX512 LED Decode Dimmer Controller for RGBW LED Strip Light

20 available / new
R1,032.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641121235
Specification:
Voltage:DC12-24V
Wattage:240W(12V), 480W(24V)
Maximum load current:5A/CH*4CH
Output gray level:256
Input signal:DMX512/1990
Output signal:4 channels constant PWM
Output DMX:4 channels
Size:L147*W63*H40

Feature:
There are 4 output channels, can connect with single or RGBW lamps
0-100% dimming output, each channel 256 gray levels
International standard DMX512 input protocol, address code set by DIP switches;
Each occupied by 4 DMX address.

Installation Notes:
This kind of controller works only under DC12V-24V, which is provided by the matched controllable main power, or else the controller will be damaged.

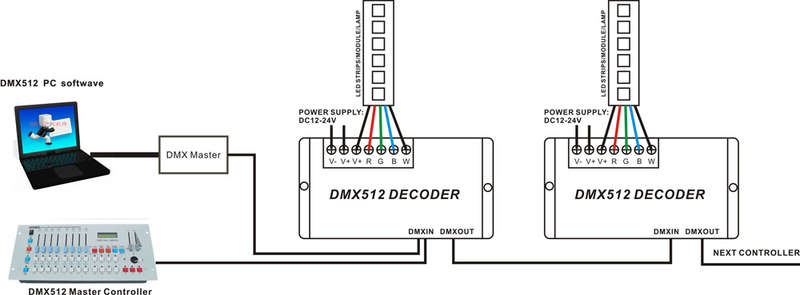

The UTP wire is connected hand in hand to make the cable, when two or more controller connected.
The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.
Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust.
Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timely

Package included:
1*DC12-24V RGBW 4 channels DMX512 decoder
