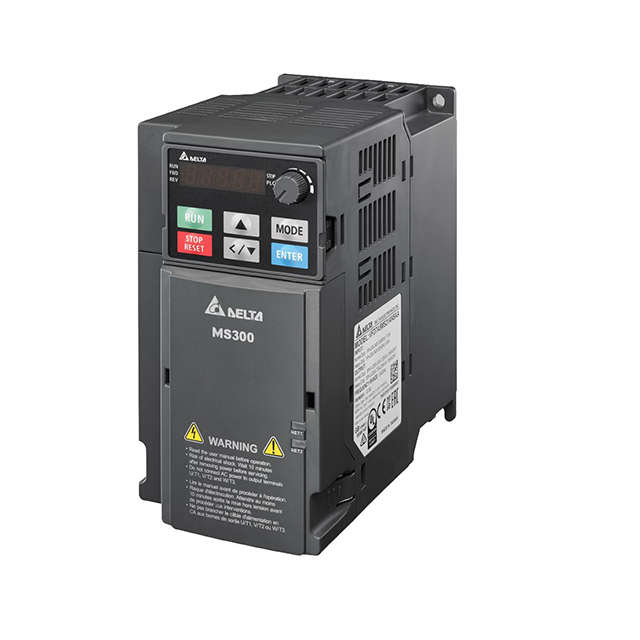

Delta Inverters VFD9A0MS43ANSAA MS300 Series Drive

General Information:

• Model: VFD9A0MS43ANSAA
• Series: MS-300 Series
• Type: Variable Frequency Drive (VFD) / AC Drive / Inverter

Electrical Specifications:

• Input Voltage - Phase: 460V - 3 Phase
• Motor Power Range: 5 HP / 4 kW
• Frequency: 0-599 Hz
• Output Current:
  • Normal Duty: 10.5 A
  • Heavy Duty: 9.0 A
  • (Clarification: Normal duty is rated at 120% current for 60 seconds, 150% for 3 seconds. Heavy duty is rated at 150% current for 60 seconds, 200% for 3 seconds.)

Technical Specifications:

• Control Method: Vector Control
• IP Rating: IP20
• Frame Size: C1
• EMC Filter: Optional
• Communication: Built-in RS-485 (Modbus). Supports optional communication cards (CANopen, PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, EtherCAT, PROFINET).
• Cooling:
• Braking: Built-in Brake Chopper
• Overload Capacity: (Implied by Normal/Heavy Duty ratings)
• Other Features:
  • Supports IM (Induction Motor) and PM (Permanent Magnet) Motors
  • High Starting Torque
  • Enhanced Braking Capability
  • Fast Response to Load Impact
  • Deceleration Energy Backup (DEB)
  • Pulse Control
  • Built-in PLC functionality
  • Tension Control
  • DC 24V External Power Supply
  • High Overload Capability
  • Closed-Loop Control

Physical Specifications:

• Weight: 2.8 lbs (approximately 1.27 kg)
• Dimensions: 3.43 in x 6.18 in x 5.98 in (approximately 87 mm x 157 mm x 152 mm)

Other Information:

• Manufacturer: Delta
• Typical Applications: Rewinder Machines, Slitter Machines, Printing Machines, Drawing Machines, Coil Winding Machines, Machine Tools, Woodworking Machines, Textile Machines
