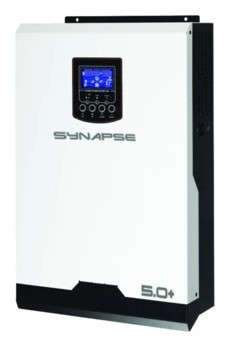

Synapse 5.0+ Offgrid Inverter 48V DC, 80A MPPT

Technical Specifications:
Rated Power: 5000W
Voltage: 230V AC
Surge Power: 5000VA
Efficiency: 90-93%
Transfer Time: 10mS (for personal computers); 20mS (for home appliances)
Waveform: Pure sine wave

Battery:
Battery Voltage: 48VDC
Floating charge Voltage: 54V DC
Overcharge Protection: 63V DC

Important Note: When using this inverter with Lithium batteries, care should be taken to correctly size the bank, taking into account the maximum current which this inverter requires VS what the battery can deliver. Maximum continuous current per inverter = +-110A, max. peak current = +-220A (depending on battery SOC / terminal voltage).

Solar Charger & AC Charger:
Max PV Array Power: 4000W
Max PV Array VOC: 500V DC
MPPT Range @ Operating Voltage: 120 ~ 450V DC
Max Solar Charger Current: 80A
Max AC Charger: 60A
Max total charge current: 80A

Physical:
Dimensions: 100 x 300 x 440mm (D x W x H)
Weight: 10kgs
Communication Interface: USB / RS232

Environment:
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating temperature: -10°C to 50°C
Storage Temperature: -15°C to 60°C

What's in the box
1 x Inverter
1 x Communication Cable
1 x Booklet
1 x CD
