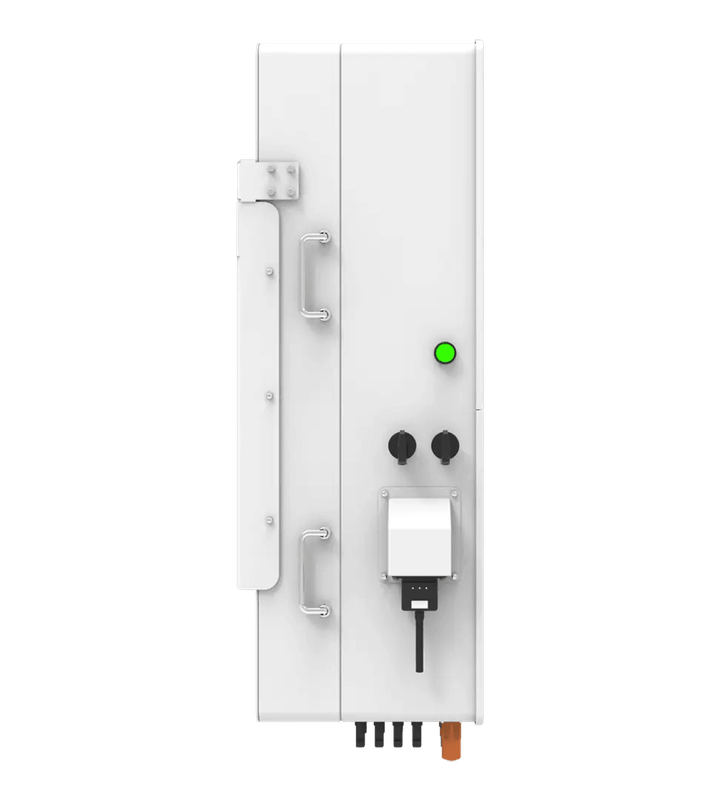

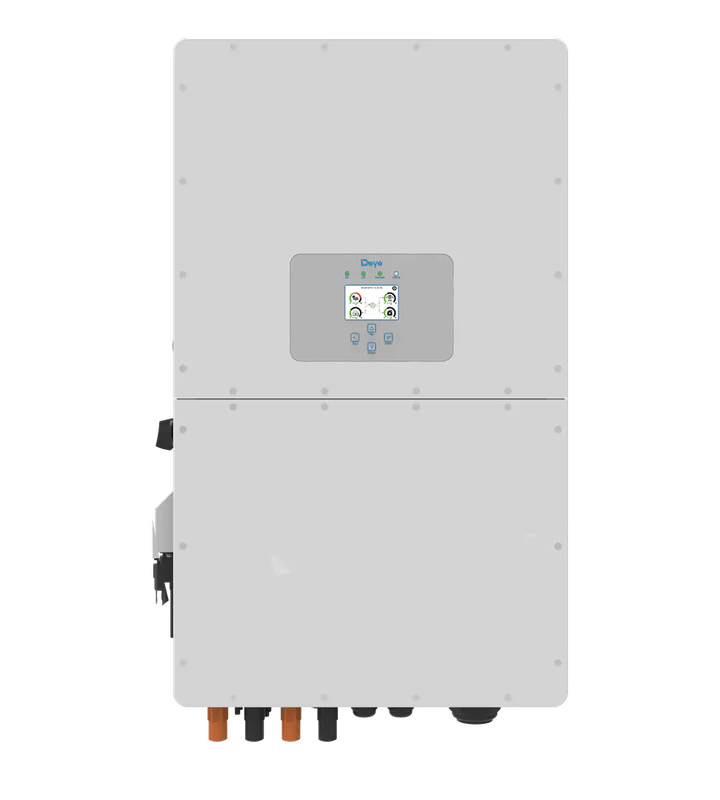

Deye 48v 50KW Hybrid Inverter 50000Watt 380v Three Phase
Higher yields / Safe & Reliable / Smart / User-friendly
Deye 48v 50KW Hybrid Inverter 50000Watt 380v is brand new three phase hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation.With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Battery Input Data Battery Type: Li-Ion
Battery Voltage Range: 160VDC to 800VDC
Maximum Charging Current: 50A + 50A
Maximum Discharging Current: 50A + 50A
Number Of Battery Input: 2
Charging Strategy for Li-Ion Battery: Self adaption to BMS
PV String Input Data Maximum DC Input Power: 65000W
Maximum DC Input Voltage: 1000VDC
Startup Voltage: 180VDC
MPPT Voltage Range: 150VDC to 850VDC
Full Load DC Voltage Range: 450VDC to 850VDC
Rated DC Input Voltage: 600VDC
PV Input Current: 36A + 36A + 36A + 36A
Maximum PV (Isc): 55A + 55A + 55A + 55A
No of MPP Trackers: 4
Strings per MPP Tracker: 2
AC Output Data Rated AC Output and UPS Power: 50000W
Maximum AC Output Power: 55000W
AC Output Rated Current: 75.8A / 72.5A
Maximum AC Current: 83.3A
Maximum Continuous AC Passthrough: 150A
Peak Power (Off Grid): 1.5 time of rated Power, 10S
Generator Input: 75.8A
Smart Load: 150A
AC Couple Current: 75.8A
Power Factor: 0.8 Leading to 0.8 Lagging
Output Frequency and Voltage: 50/60Hz; 3L/N/PE 220/380VAC, 230/400VAC
Grid Type: Three Phase
Environment Limit Operating Temperature Range: -40°C to 60°C
Cooling: Smart Cooling (<45 dB)
Communication with BMS: RS485 / CAN
Ingress Protection: IP65
Safety Certification: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
