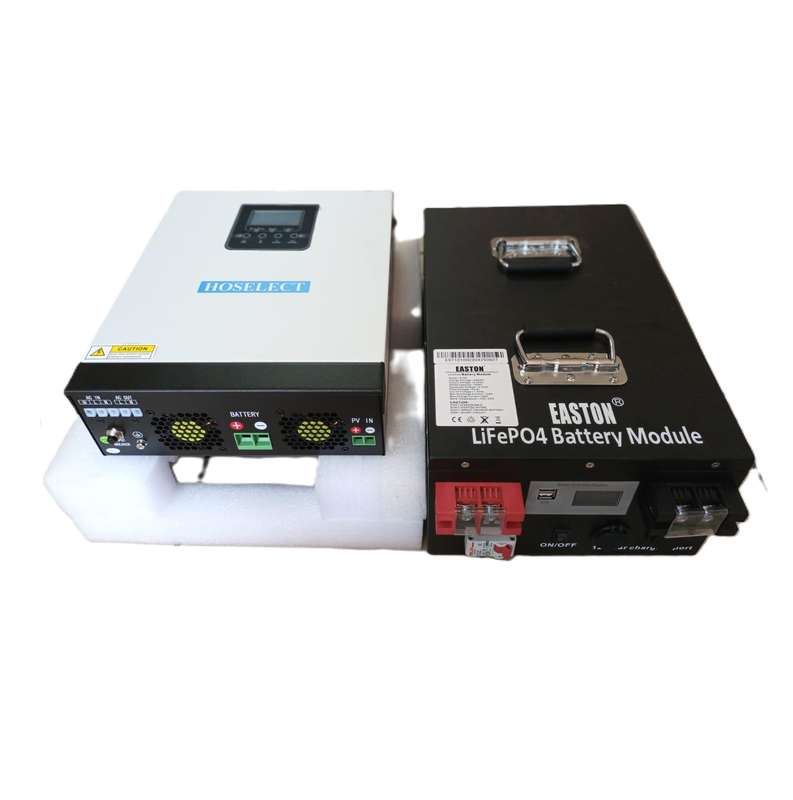

Esener 24v 3kw VPM series is a high frequency off grid solar inverter. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Pure sine wave solar inverter
Smart LCD setting Working modes, Charge Current, Charge Voltage,
Built-in 60A/80A MPPT solar charger
Overload, short circuit and Deep discharge protection
WIFI remote monitoring - optional
Support parallel operation up to 3 units available for 3KW-5KW 48V
Normal Voltage 24VDC
Rated Power 3000VA/3000W
Rated Power : 3000w/3000VA
Maximum PV Array : 1500w
Max Open Circuit Voltage : 145 VDC
What's in the box
1 x Inverter
Features
Esener 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
Excellent High-Temperature Performance.
1c High-Performance Lithium Battery.
High Energy Density And Conversion Efficiency.
Low Self-Discharge.
19 Inch Rack Mount Chassis
Heavy-Duty Side Handles For Easy Handling And Mounting To The Wall
Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
Long Lifespan Up To 10 Years
Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD
Normal Voltage 25.6V
Rated Capacity: 100Ah
Total Usable Energy 2.56KWh
Voltage Range 20.0V to 29.2V
Charge Current 100A
Discharge Current 100A
Specifications
Esener 2.56 kWh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
Rated Capacity (5HR): 100Ah.
Voltage: 25.6V.
Total Usable Energy 2.56KWh
Discharge Cut-off Voltage: 20.0V.
Equalised Charge Voltage: 29.2V.
Maximum Continuous Charging Current: 100A.
Maximum Continuous Discharging Current: 100A.
C. Rating: 1.0C.
Display: None.
Parallel/Series: Parallel and series connection up to "2S2P".
Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch.
Cells: New Li-Ion Prismatic Cells.
Design Life: -/+ 10 Years.
Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD.
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
Dimensions (WxDxH): 484mm x 420mm x 133mm.
Weight: Approx. 26kg.
What's in the box
1 x Esener 25.6V 100Ah Lifepo4 Single Battery Module
1 x wall mount bracket
