Ecco 5.5KVA / 5500W 48V MPPT 100A Hybrid Inverter (Parallel Version) + 2x 5.12kWh 51.2V 100Ah Lit...

Hybrid Inverter 48V 5.5 KVA 5500W MPPT 100A Inverter Pure Sine Wave (PARALLEL)  Ecco (Link to manual)

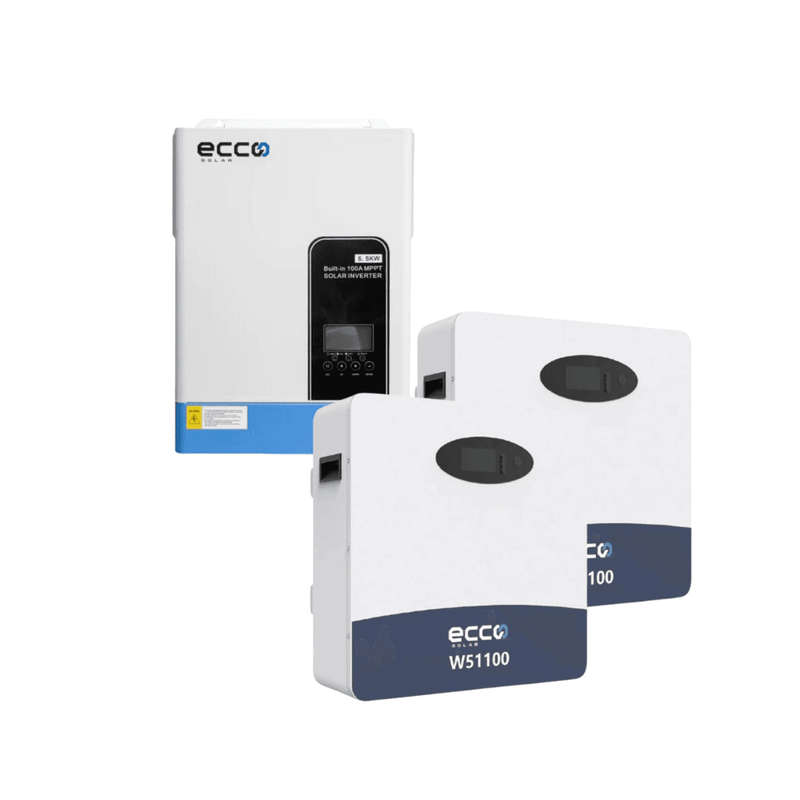

Ecco 5.5KVA / 5500W 48V MPPT 100A Hybrid Inverter (Parallel Version) + 2x 5.12kWh 51.2V 100Ah Lithium Battery / Solar & Backup Kit

Description:

The Ecco 5.5KVA Hybrid Inverter (Parallel Version), paired with 2x 5.12kWh 51.2V 100Ah Lithium Iron Phosphate (LiFePO4) Battery, delivers a high-performance solar and backup power solution for homes and businesses. With MPPT (Maximum Power Point Tracking) technology, this inverter maximizes solar energy conversion, achieving 30% higher charge efficiency compared to PWM controllers. The parallel functionality allows multiple units to be linked for higher power output, making it an ideal choice for scalable solar and backup power systems.

Key Features:

Hybrid Inverter Features:

• Pure Sine Wave Output  Provides stable power for sensitive electronics.
• MPPT 100A Charge Controller Built-in  Maximizes solar energy efficiency.
• Smart LCD Control Panel  Configure charge settings, working modes, and input voltage priorities.
• Multi-Source Power Management:
  • Solar priority mode  Maximizes solar energy usage.
  • Grid priority mode  Ensures continuous power supply.
  • Hybrid mode (Solar + Grid + Battery)  Optimizes power efficiency.
• High PV Voltage Support:
  • MPPT Voltage Range: 60V 500V DC
  • Maximum PV Open Circuit Voltage: 500V DC
• Parallel Capability  Connect multiple inverters for higher power output.
• Battery-Free Operation  Can power loads directly from solar energy without requiring a battery.
• Automatic Transfer Switching:
  • 10ms transfer time for uninterrupted power to computers.
  • 20ms transfer time for household appliances.
• RS485 BMS Communication  Enables seamless lithium battery integration.
• Detachable Dust Cover  Protects components in harsh environments.
• Wi-Fi Remote Monitoring (Optional Wi-Fi Dongle Sold Separately)  Enables real-time system tracking.

Technical Specifications:

Inverter Specifications:

• Rated Power Output: 5.5KVA / 5500W
• Input Voltage: 230V AC
• Frequency Range: 50Hz / 60Hz (Auto-Sensing)
• Output Voltage Regulation (Battery Mode): 230V AC ±5%
• Surge Power: 11,000W
• Peak Efficiency: 93%
• Waveform: Pure Sine Wave

Battery & AC Charger:

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54.8V DC
• Overcharge Protection Voltage: 60V DC
• Maximum Charging Current: 80A

Solar Charge Controller:

• Maximum PV Array Open Circuit Voltage: 500V DC
• Maximum Solar Charging Current: 100A

Physical Dimensions:

• Inverter Size: 438 x 295 x 105mm
• Inverter Weight: 9kg

Battery Specifications (Ecco 5.12kWh 51.2V 100Ah Lithium Iron Phosphate Battery):

• Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Capacity: 100Ah (5.12kWh)
• Cycle Life:
  • Up to 20 times longer lifespan than lead-acid batteries.
  • Retains 80% capacity after 3000+ cycles.
• Charge & Discharge Performance:
  • Maximum Charging Current: 100A
  • Maximum Discharging Current: 100A
• Operating Temperature Range: -20°C to 60°C
• Built-in Battery Management System (BMS):
  • Overcharge, over-discharge, and over-temperature protection
  • Enhanced safety features to prevent overheating and short circuits
• Lightweight Design: 40% lighter than lead-acid batteries.
• Drop-In Replacement for Lead Acid Batteries  No additional modifications required.
• Weight: 45kg
• Dimensions: 65mm (L) x 120mm (W) x 330mm (H)
• Warranty: 5-Year Manufacturer's Warranty

What's Included in the Package:

• 1x Ecco Hybrid Inverter 5.5KVA / 5500W 48V (MPPT 100A, Pure Sine Wave, Parallel Ready)
• 2x Ecco 5.12kWh 51.2V 100Ah Lithium Iron Phosphate Battery
• 1x User Manual
• 1x Parallel Cable

Important Notes:

• It is recommended to use ECCO batteries for guaranteed performance.
• Installation must be performed by a qualified wireman or master electrician.
• A valid Certificate of Compliance (COC) is required for warranty claims.
• Warranty claims without professional installation proof, installation photos, or a valid COC may be rejected.
• Damage due to improper use or burning out of the unit is not covered under warranty.

Ideal For:

• Load shedding and emergency backup power
• Small business and home solar systems
• Off-grid and hybrid solar energy storage
• Reliable power backup for essential appliances

Installation & Warranty Information:

• Inverter Warranty: 5-Year Repair Warranty
• Battery Warranty: 5-Year Manufacturer's Warranty (Retains 80% capacity or 3000 cycles, whichever comes first)
