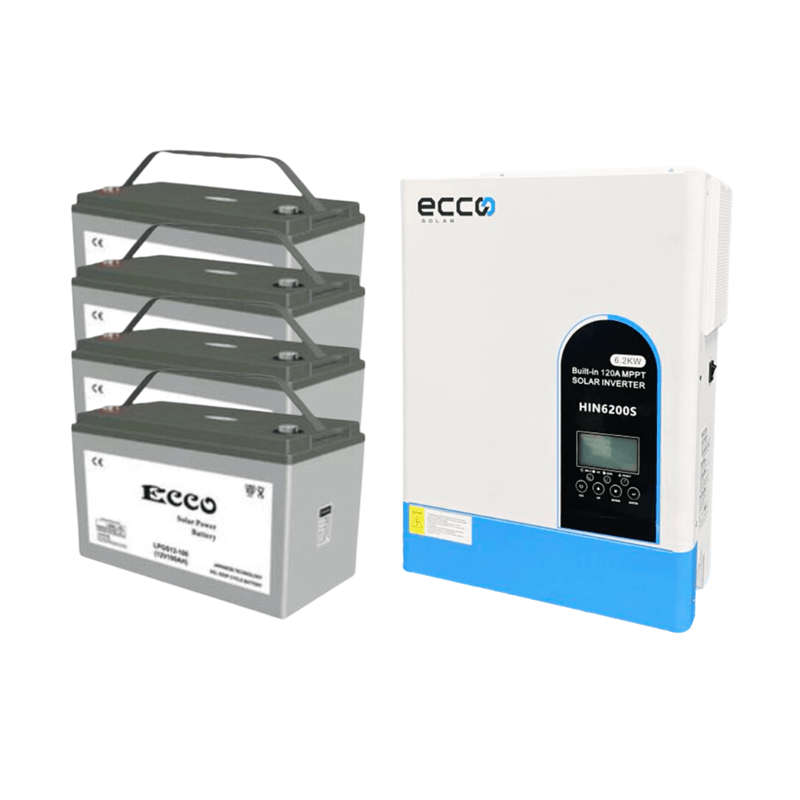

Ecco 6.2kVA Hybrid Inverter + 4x 100Ah Deep Cycle Gel Batteries Pure Sine Wave / MPPT 120A Solar Charger / 48V (HIN6200S)
Product Description: Upgrade your energy system with the Ecco HIN6200S 6.2kVA Hybrid Inverter, a reliable power solution designed for residential and light commercial use. Engineered with pure sine wave output, MPPT solar charging, and dual AC outputs, this inverter ensures efficient and stable power delivery. The package includes four 100Ah deep-cycle gel batteries, offering robust energy storage for uninterrupted performance.
Key Features:
- 6.2kVA Hybrid Inverter Supports a maximum power output of 6200W.
- Pure Sine Wave Output Delivers clean and stable electricity for sensitive electronics.
- MPPT Solar Charger (Maximum Power Point Tracking) Efficiently harnesses solar energy with up to 6500W PV input.
- Dual AC Outputs Supports different load requirements.
- Lithium Battery Compatibility Activation via PV or utility power.
- Multiple Charging Modes Includes 120A solar charge current and 80A AC charge current.
- High Efficiency Achieves 94% peak efficiency.
- Overload Protection Prevents damage with smart load management.
- Wide AC Input Range Operates at 170-280VAC for PCs and 90-280VAC for home appliances.
- Communication Interfaces Supports RS485 (RJ45) & RS232 (DB9) for enhanced monitoring.
Technical Specifications:
Inverter Performance:
- Model: HIN6200S
- Phase: Single-phase input & output
- Maximum PV Input Power: 6500W
- Maximum Output Power: 6200VA/6200W
- Surge Power: 12400VA
- Waveform: Pure sine wave
- Efficiency: 94%
- Transfer Time: 10ms (PC); 20ms (Home Appliances)
Battery System:
- Voltage: 48V DC
- Floating Charge Voltage: 54V DC
- Overcharge Protection: 63V DC
- Charging Method: CC/CV (Constant Current/Constant Voltage)
Solar & AC Charging:
- Solar Charger Type: MPPT
- Maximum PV Array Power: 6500W
- MPPT Voltage Range: 60V-500V DC
- Maximum Solar Input Current: 27A
- Maximum Solar Charge Current: 120A
- Maximum AC Charge Current: 80A
- Total Maximum Charge Current: 120A
Physical & Environmental Details:
- Dimensions: 438mm x 312mm x 122mm
- Package Dimensions: 540mm x 390mm x 210mm
- Net Weight: 11kg
- Operating Temperature Range: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
- Humidity Tolerance: 5% to 95% RH (Non-condensing)
Included in the Package:
- 1x 6.2kVA Hybrid Inverter
- 4x 100Ah Deep Cycle Gel Batteries
- (Battery cables not included)
Warranty Information:
- Inverter: 5-year warranty
- Gel Batteries: 90-day replacement warranty
Optional Add-On:
Would you like to enhance your system monitoring? Add a WiFi Dongle for the Ecco Hybrid Inverter to enable real-time tracking and remote control capabilities.
Why Choose the Ecco HIN6200S?
The Ecco 6.2kVA Hybrid Inverter is ideal for those looking for a reliable, high-efficiency power solution with solar and battery integration. Whether you need backup power or a primary off-grid solution, this system delivers stable performance, advanced protection, and seamless power management.
Order today for a smarter and more efficient power solution!
